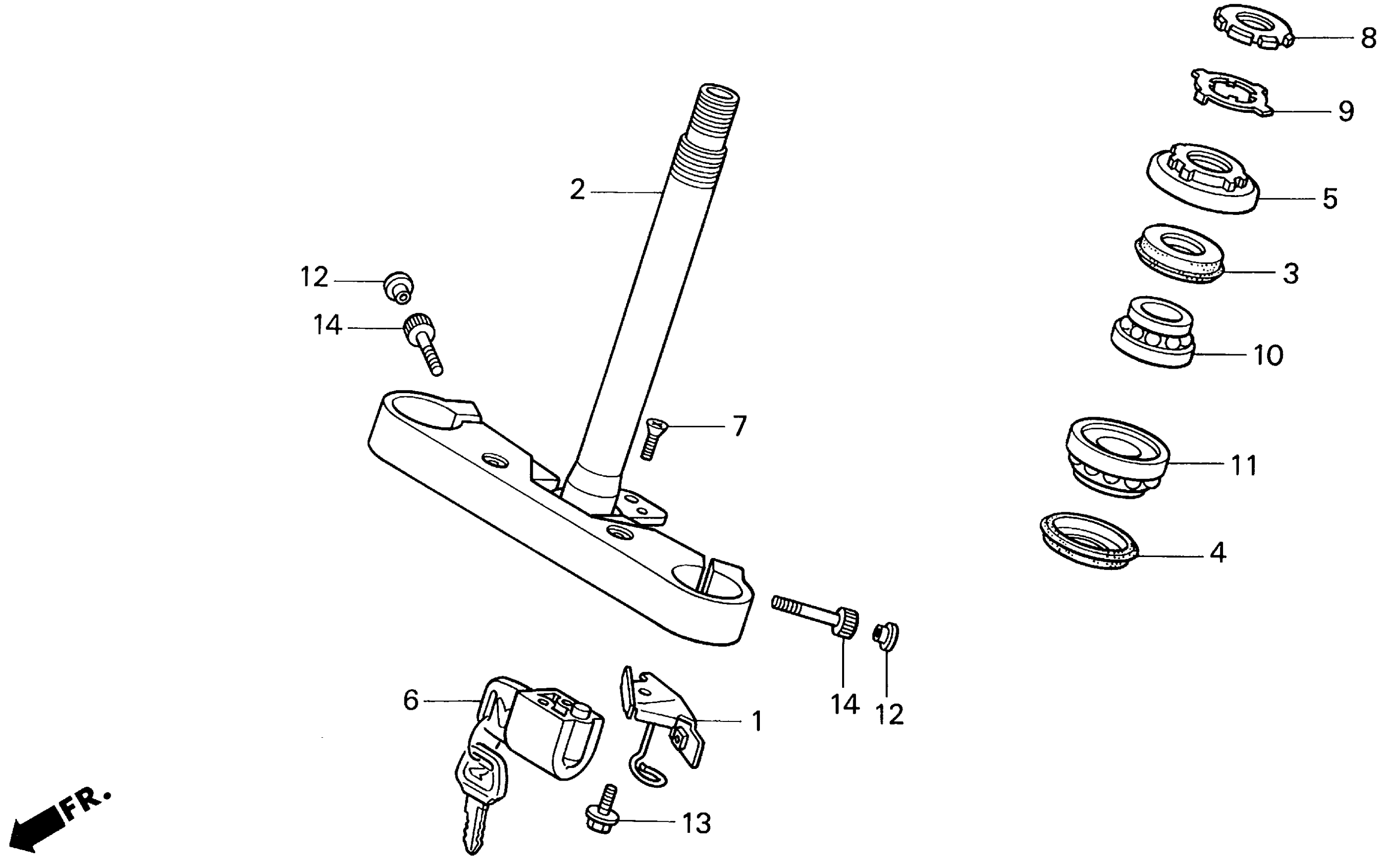

Honda VT1100C2A (96) SHADOW 1100 - ACE, USA, VIN# 1HFSC320-TA100001 VT1100C2STEERING STEM Diagram

CLAMP, FR. BRAKE HOSE (SOURCE: VINTAGE PARTS INC.) This part replaces 45130-MAH-000.

45130-MAH-010

Unavailable

CLAMP, FR. BRAKE HOSE (SOURCE: VINTAGE PARTS INC.)

45130-MAH-010

Unavailable

STEM, STEERING This part replaces 53200-MAH-670.

53200-MM8-881

Unavailable

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$32.73

LOCK, HANDLEBAR

53600-086-007

$47.89

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

CAP, SOCKET BOLT (10MM)

91456-MJ0-000

$4.15

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, SOCKET (10X25) (NOT AVAILABLE)

96700-10025-17

Unavailable
