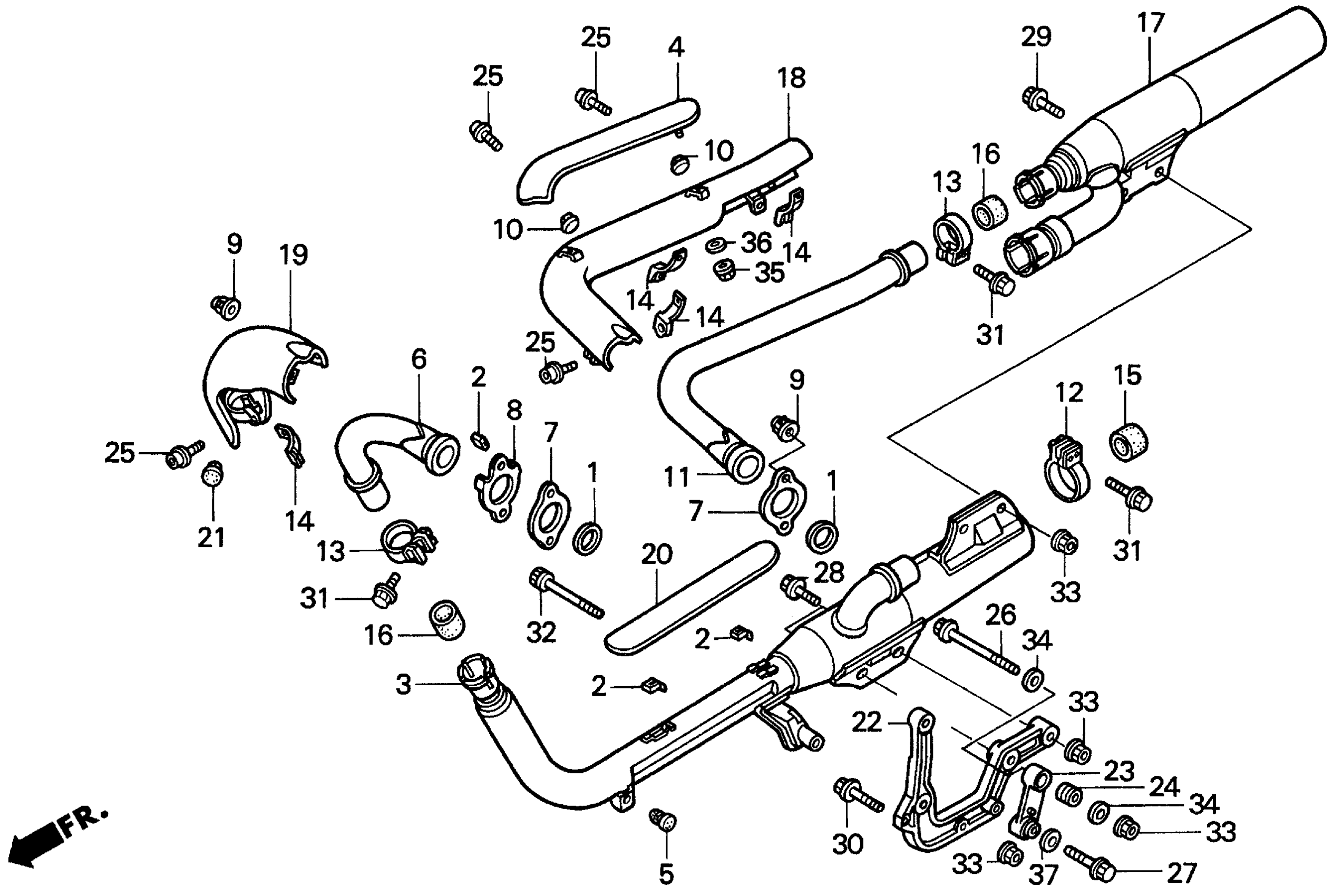

Honda VT1100C2A (96) SHADOW 1100 - ACE, USA, VIN# 1HFSC320-TA100001 VT1100C2MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MR5-801

$12.82

2

RUBBER, PROTECTOR

18293-MN0-000

$2.13

3

MUFFLER, FR. EX. (NOT AVAILABLE) This part replaces 18300-MAH-003.

18300-MAH-A41

Unavailable

4

PROTECTOR, RR. EX. PIPE

18315-MAH-003

$65.57

5

RUBBER, STOPPER

18319-MAH-000

$5.36

6

PIPE B, FR. EX. (NOT AVAILABLE)

18321-MAH-003

Unavailable

7

JOINT, EX. PIPE

18325-MAH-000

$19.97

8

HOLDER, FR. EX. PIPE COVER

18326-MAH-000

Unavailable

9

NUT ASSY. (8MM)

18330-MAH-000

$14.18

10

GROMMET A, MUFFLER PROTECTOR

18366-GW8-670

$4.23

11

PIPE, RR. EX. (NOT AVAILABLE)

18370-MAH-003

Unavailable

12

BAND, MUFFLER This part replaces 18371-MA0-770.

18376-KV0-000

Unavailable

13

BAND, MUFFLER

18376-KG0-003

$18.83

14

BAND, RR. EX. PIPE COVER

18377-MAH-000

$13.51

15

GASKET, RR. MUFFLER

18392-MJ4-670

$16.06

16

GASKET, MUFFLER

18392-MK4-000

$13.66

17

MUFFLER (UPPER) (NOT AVAILABLE)

18410-MAH-003

Unavailable

18

COVER, RR. EX. PIPE (NOT AVAILABLE)

18420-MAH-000

Unavailable

19

COVER A, FR. EX. PIPE

18421-MAH-003

Unavailable

20

PROTECTOR, FR. EX. PIPE

18423-MAH-003

Unavailable

21

GROMMET, MUFFLER COVER

18430-MAH-000

Unavailable

22

BRACKET, MUFFLER (SOURCE: VINTAGE PARTS INC.)

18455-MAH-000

Unavailable

23

BRACKET B, MUFFLER (NOT AVAILABLE)

18460-MAH-000

Unavailable

24

COLLAR, MUFFLER BRACKET (NOT AVAILABLE)

18461-MAH-000

Unavailable

25

BOLT, FLANGE SOCKET (6X16)

90010-MJ6-000

$2.99

26

BOLT, FLANGE (8X80) This part replaces 90011-KV3-770.

90011-KV3-680

Unavailable

27

BOLT, UBS (8X36)

90031-752-000

Unavailable

28

BOLT, FLANGE (8X40)

90103-KAB-670

$4.28

29

BOLT, FLANGE (8X20)

90103-MW3-670

$3.78

30

BOLT, FLANGE (8X32)

90109-MAH-000

$9.46

31

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

32

BOLT, SOCKET (8X75) (NOT AVAILABLE)

90186-MAH-000

Unavailable

33

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

34

WASHER, SPECIAL (28X8.5X4.0)

90435-611-000

$8.69

35

NUT-WASHER (5MM)

94070-05080

$1.49

36

WASHER, PLAIN (5MM)

94103-05800

$1.49

37

WASHER, PLAIN (8MM)

94103-08800

$1.49
