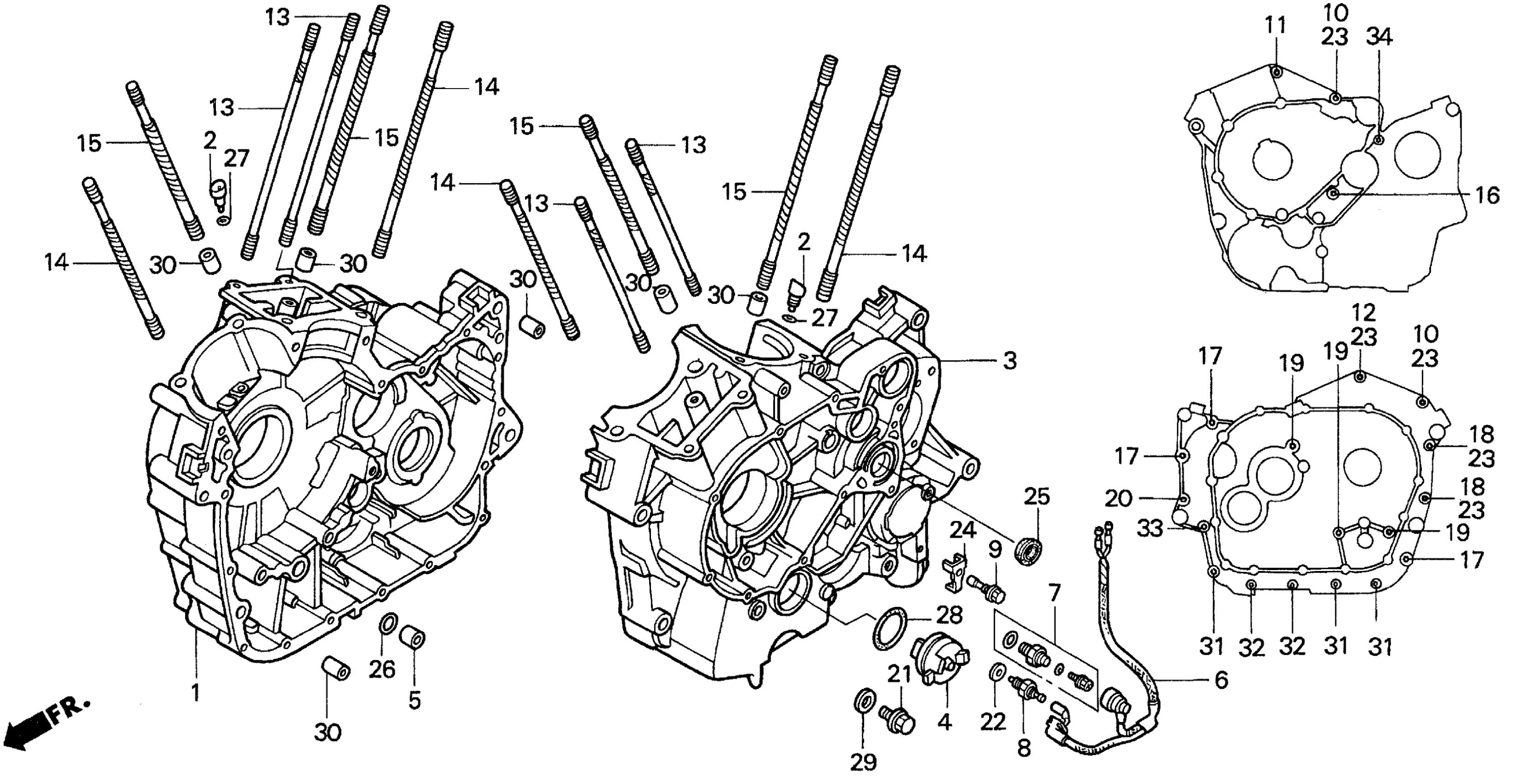

Honda VT1100C2A (96) SHADOW 1100 - ACE, USA, VIN# 1HFSC320-TA100001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE, R. (SOURCE: VINTAGE PARTS INC.)

11100-MAH-000

Unavailable

2

JET, OIL (NOT AVAILABLE)

11146-MAH-000

Unavailable

3

CRANKCASE, L. (SOURCE: VINTAGE PARTS INC.)

11200-MAH-000

Unavailable

4

PLUG, L. CRANKCASE

11211-MK7-770

$26.05

5

COLLAR, O-RING

15155-300-000

$3.22

6

SUB-HARNESS A (NOT AVAILABLE)

32101-MAH-000

Unavailable

7

SWITCH ASSY., OIL PRESSURE (DENSO)

35500-MJ4-024

$38.10

8

SWITCH ASSY., NEUTRAL (TOYO)

35600-KE8-003

$16.98

9

BOLT, ORIFICE (1.6MM)

90002-MG8-000

$16.39

10

BOLT, FLANGE (8X125)

90005-MG8-000

Unavailable

11

BOLT, SPECIAL (6X12)

90006-MAH-000

$3.70

12

BOLT, FLANGE (8X136)

90006-MG8-000

$6.41

13

BOLT, STUD (8X259)

90011-MAH-000

$10.58

14

BOLT, STUD (10X269) (NOT AVAILABLE)

90012-MG8-003

Unavailable

15

BOLT, STUD (10X257) (NOT AVAILABLE)

90013-MG8-003

Unavailable

16

BOLT, UBS (8X110)

90030-MS9-750

$9.64

17

BOLT, FLANGE (8X45)

90052-MG8-000

$4.17

18

BOLT, FLANGE (8X80)

90053-MG8-000

$5.19

19

BOLT, FLANGE (8X80)

90053-MM8-680

Unavailable

20

BOLT, FLANGE (8X100)

90054-MG8-000

$6.39

21

BOLT, PLUG

90081-MC7-000

$9.83

22

WASHER, NEUTRAL SWITCH

90405-MG8-000

Unavailable

23

WASHER, SEALING (8MM)

90441-MG8-000

$2.07

24

PLATE, SEALING (6MM)

90444-MG8-000

Unavailable

26

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.61

27

O-RING (5X1.7) (ARAI)

91305-MG7-003

$2.80

28

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.44

29

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

30

PIN, DOWEL (14X20)

94301-14200

$2.25

31

BOLT, FLANGE (6X50)

95701-06050-07

$1.26

32

BOLT, FLANGE (6X90)

95701-06090-07

$2.17

33

BOLT, SPECIAL FLANGE (10X107)

90009-MAH-000

$14.93

34

BOLT, FLANGE (6X100)

96001-06100-07

$1.96
