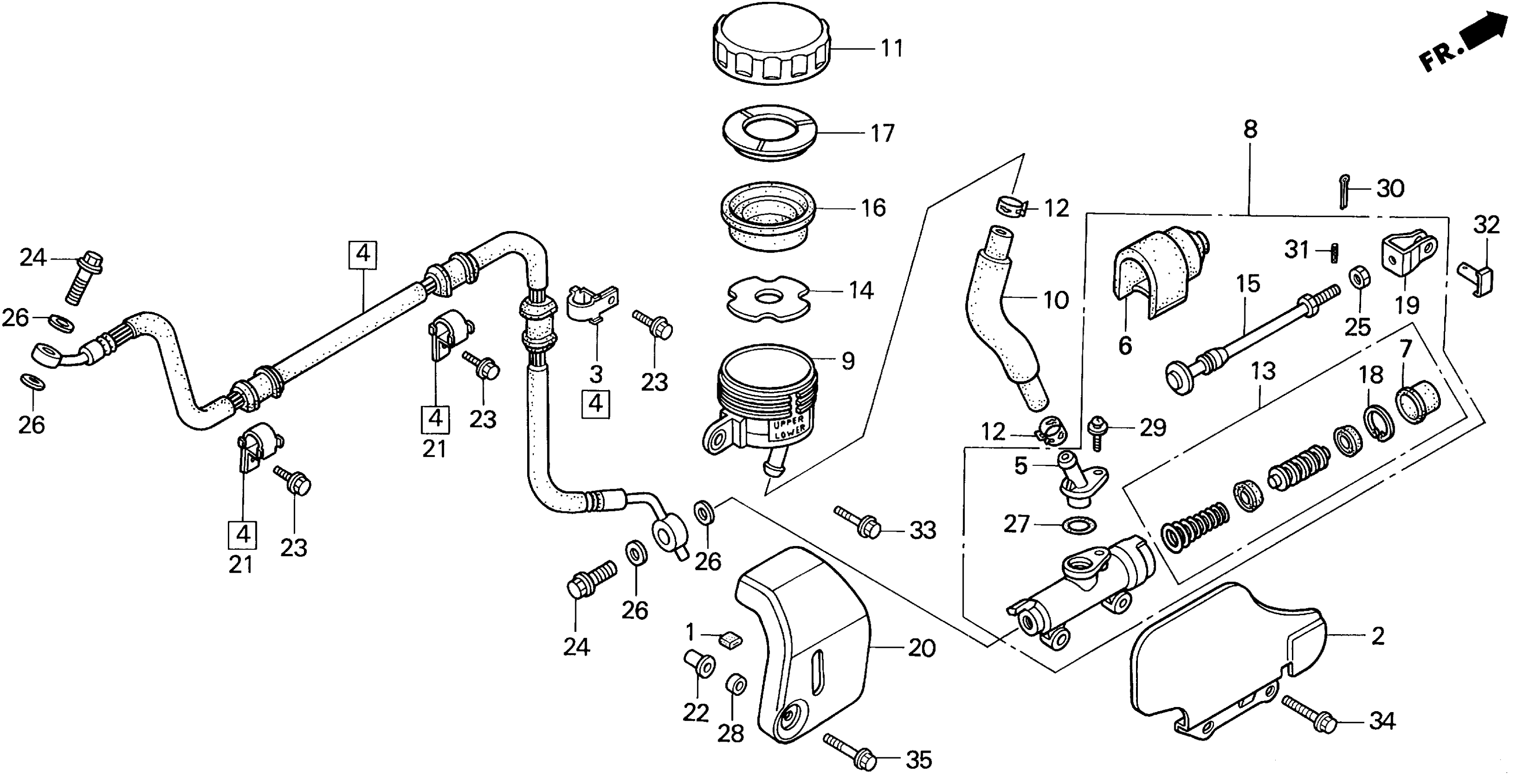

Honda VT1100C2A (95) SHADOW 1100 - ACE, USA, VIN# 1HFSC320-SA000001 VT1100C2RR. BRAKE MASTER CYL. Diagram

#

Description
Price

1

RUBBER, PROTECTOR GASKET

18293-147-000

$3.86

2

GUARD, MASTER CYLINDER HEAT

40545-MAH-A40

Unavailable

2

GUARD, MASTER CYLINDER HEAT This part replaces 40545-MAH-000.

40545-MAH-A40

Unavailable

3

CLAMP B, RR. BRAKE HOSE

43156-MAH-000

Unavailable

4

HOSE, RR. BRAKE (NOT AVAILABLE)

43310-MAH-671

Unavailable

5

CONNECTOR, RR. BRAKE MASTER CYLINDER

43503-MAH-671

$11.10

6

BOOT B, RR. MASTER CYLINDER

43504-MAH-670

Unavailable

7

BOOT

43504-MB2-006

$9.24

8

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-MAH-305

Unavailable

8

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) (NOT AVAILABLE)

43510-MAH-315

Unavailable

9

CUP, OIL

43511-MR7-016

$29.99

10

HOSE, RR. MASTER CYLINDER

43512-MAH-003

Unavailable

11

CAP, OIL CUP

43513-MY1-006

$26.99

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

13

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$41.66

13

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

14

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.12

15

ROD, PUSH

43530-MT3-036

Unavailable

16

DIAPHRAGM

45520-300-000

$8.34

17

PLATE, DIAPHRAGM

45521-MJ6-006

$3.87

18

CIRCLIP

46182-500-013

$4.53

19

JOINT, BRAKE ROD

46504-MAH-671

$13.21

20

COVER, MASTER CYLINDER RESERVE TANK

46550-MAH-000

$178.81

21

CLAMP, BRAKE HOSE

52115-ML8-670

$5.01

22

NUT, COWL SETTING (6MM)

90114-KAS-900

$4.81

23

BOLT, FLANGE (6X10) This part replaces 90131-MR1-000.

96001-06010-02

$1.43

23

BOLT, FLANGE (6X10)

96001-06010-02

$1.43

24

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.99

24

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

25

NUT, HEX. (8MM)

90305-MAH-671

$3.03

26

WASHER, OIL BOLT

90545-300-000

$6.56

27

O-RING (14.8X2.4)

91212-422-006

$2.37

28

COLLAR, TANK SETTING

91501-883-691

Unavailable

29

SCREW-WASHER (4X12)

93893-04012-07

$1.24

29

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

30

PIN, SPLIT (2.0X15)

94201-20150

$0.96

31

PIN, SPRING (2X10)

94305-20102

$0.81

32

PIN D, JOINT

95015-54000

$4.05

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.34

34

BOLT, FLANGE (6X25)

95701-06025-00

$1.66

35

BOLT, FLANGE (6X28)

96001-06028-02

$1.81
