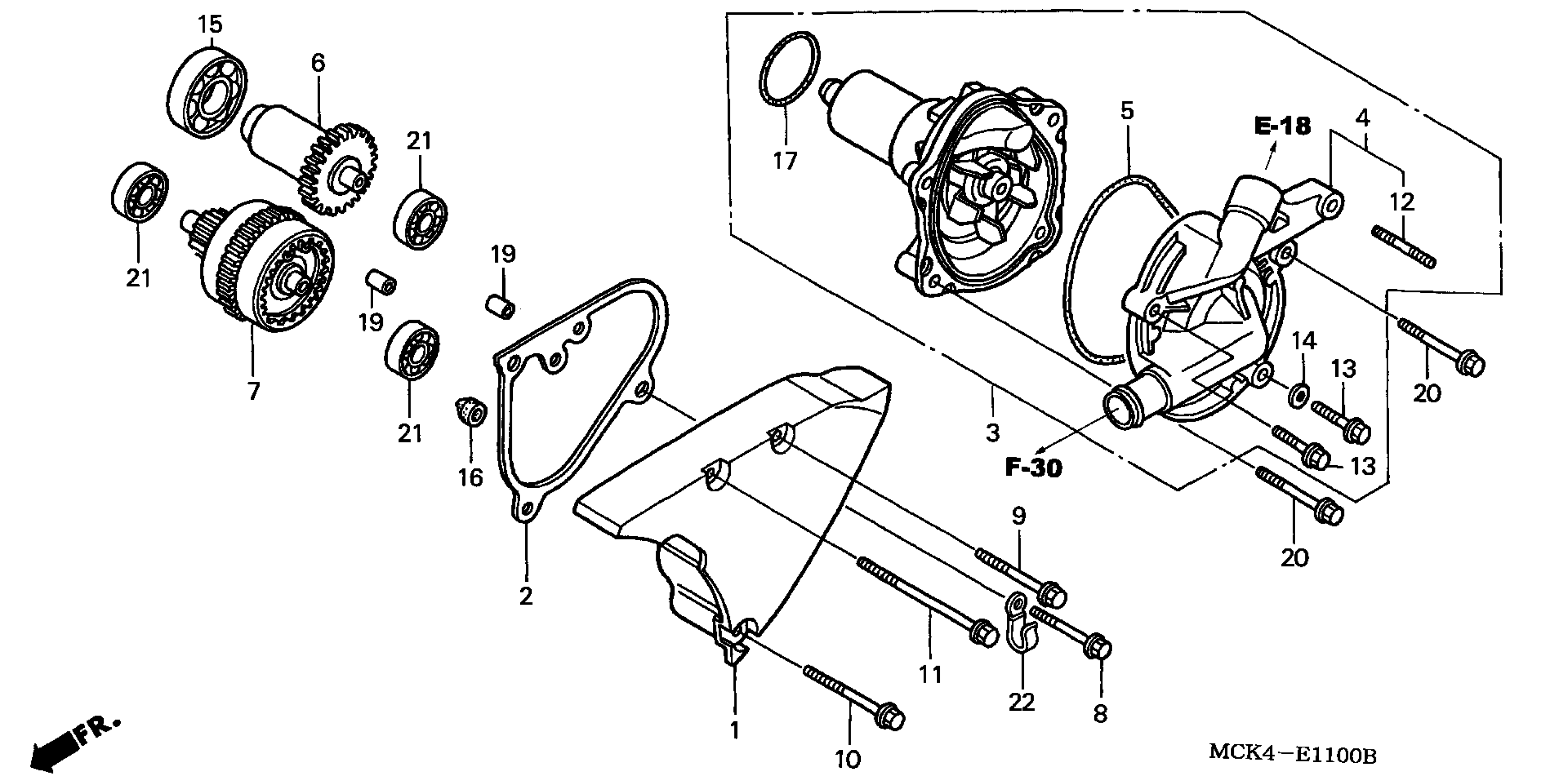

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 WATER PUMP Diagram

#

Description
Price

1

COVER, STARTER

11364-MAH-000

Unavailable

2

GASKET, STARTER COVER This part replaces 11365-MM8-881.

11365-MM8-P00

$6.33

3

WATER PUMP ASSY.

19200-MAA-A00

$251.77

4

COVER, WATER PUMP

19221-MAH-000

Unavailable

5

GASKET, WATER PUMP COVER

19226-ME9-000

Unavailable

6

GEAR, STARTER DRIVE (36T)

28131-MCK-A00

$52.28

7

LIMIT ASSY., TORQUE (15T)

28140-MG8-000

Unavailable

8

BOLT, FLANGE (6X32) (NSHF)

90004-GHB-690

$3.68

9

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.89

10

BOLT, FLANGE (6X45) (NSHF)

90004-GHB-720

$4.02

11

BOLT, FLANGE (6X75) (NSHF)

90004-GHB-780

$2.97

12

BOLT, STUD (6X25)

90045-ZG1-770

$2.16

13

BOLT, FLANGE (6X25)

90121-MV9-670

$2.75

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

15

BEARING, RADIAL BALL (6804) (KOYO)

91002-MG8-003

$22.60

16

CAP, RUBBER

91201-MG8-000

$2.71

17

O-RING (32.95X2.62) (ARAI)

91302-MB0-013

Unavailable

19

PIN, DOWEL (8X14)

94301-08140

$2.62

20

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.59

20

BOLT, FLANGE (6X45)

95701-06045-07

$2.59

21

BEARING, RADIAL BALL (6000)

96100-60000-00

$7.75

22

CLAMP, SWITCH WIRE

35211-443-760

$3.82
