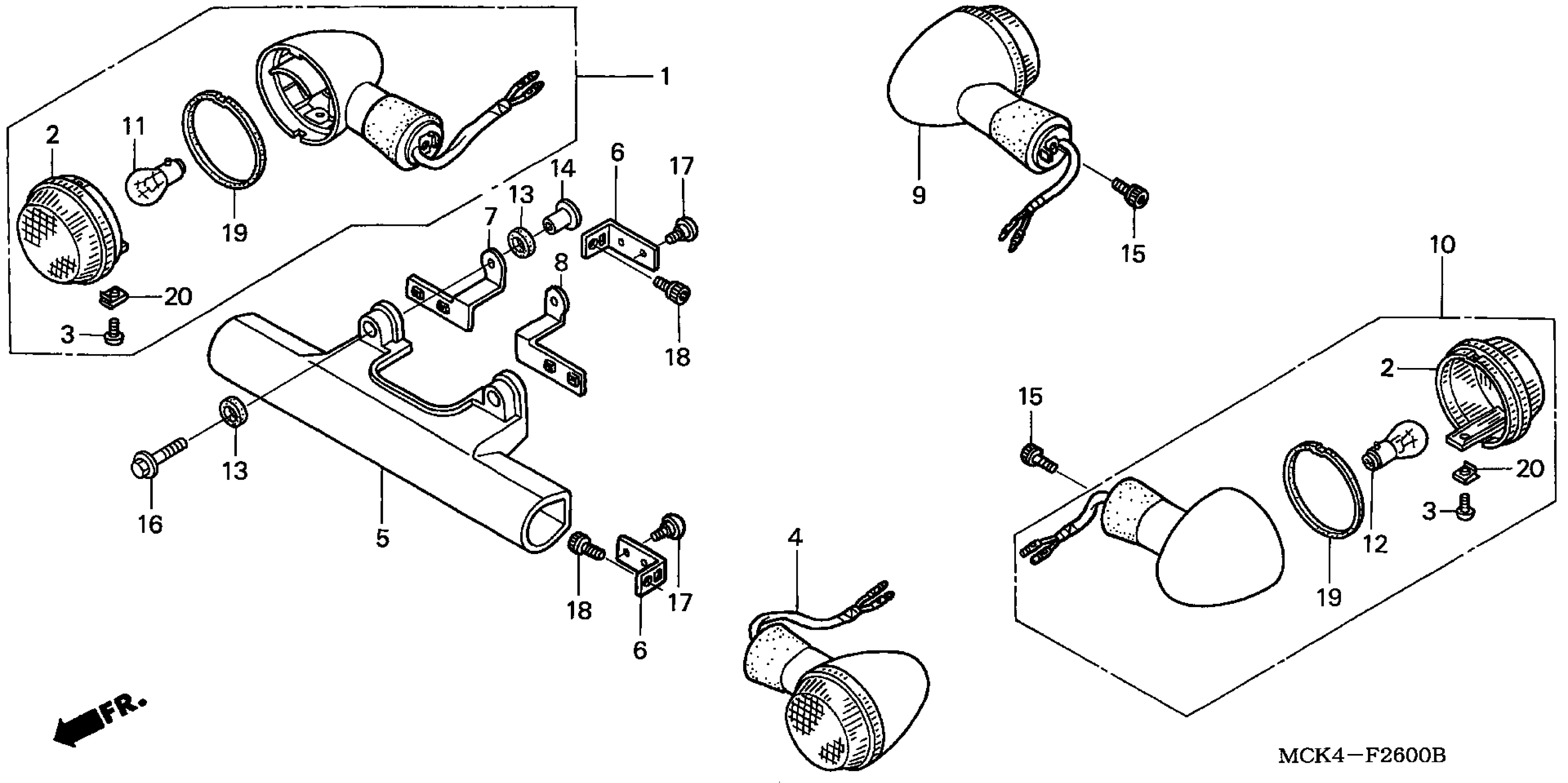

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 TURN SIGNAL Diagram

TURN SIGNAL ASSY. This part replaces 33400-MBA-672.

33400-MBA-673

$70.92

LENS, TURN SIGNAL (COO) This part replaces 33401-MBA-612.

33401-MFR-305

$10.20

SCREW, SPECIAL (4X8)

33403-MBA-611

$1.49

TURN SIGNAL ASSY. This part replaces 33450-MBA-672.

33450-MBA-673

Unavailable

COVER, FR. TURN SIGNAL

33490-MBA-000

$67.96

STAY, FR. TURN SIGNAL This part replaces 33491-MBA-000.

33491-MBH-000

Unavailable

STAY, R. FR. TURN SIGNAL

33492-MBA-000

$9.05

STAY, L. FR. TURN SIGNAL

33493-MBA-000

$9.05

WINKER ASSY,R RR This part replaces 33600-MBA-612.

33600-MBA-613

$68.13

WINKER ASSY,L RR This part replaces 33650-MBA-612.

33650-MBA-613

$61.89

BULB, TAILLIGHT (12V 21/5W) (STANLEY)

34906-447-711

$9.38

BULB (12V 21W) (ECE) (STANLEY)

34908-634-611

$5.88

RUBBER, HANDLE COVER (UPPER)

53210-HA0-000

$2.64

COLLAR, FR. FENDER SETTING

61101-KE1-000

Unavailable

SET,SOCKET BOLT,6 This part replaces 90001-GY6-900.

90001-GY6-305

$3.42

BOLT, FLANGE (6X40)

90103-MBA-000

$5.64

SCREW, SPECIAL (5MM)

90106-MBA-610

$2.98

BOLT, SOCKET (6X12)

96600-06012-00

$1.74

GASKET, LENS

33407-MBA-611

$3.15

NUT, CLIP

33408-MBA-611

$2.11
