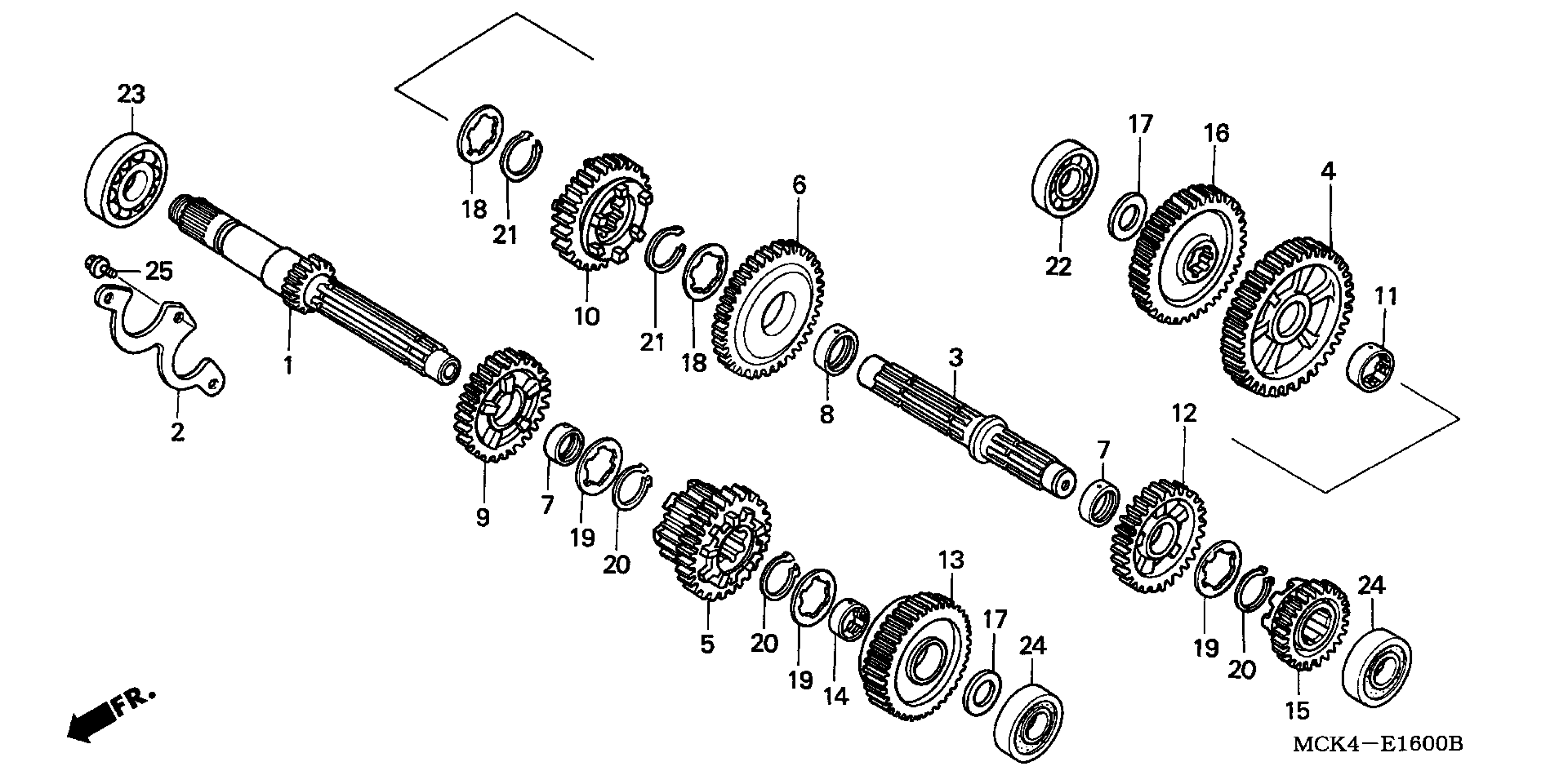

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT (16T)

23211-MCK-A00

$150.97

2

PLATE, BEARING

23212-MK7-670

$14.03

3

COUNTERSHAFT

23220-MCK-A00

$141.74

4

GEAR, COUNTERSHAFT FIRST (38T)

23421-MCK-A00

Unavailable

5

GEAR, MAINSHAFT SECOND & FOURTH (23T/36T)

23431-MCK-A00

Unavailable

6

GEAR, COUNTERSHAFT SECOND

23441-MBH-000

$103.84

7

COLLAR (28MM)

23442-ML7-000

$25.81

8

COLLAR (30X11.2)

23442-MS2-610

$21.93

9

GEAR, MAINSHAFT THIRD (27T)

23451-MAA-610

$147.82

10

GEAR, COUNTERSHAFT THIRD (28T)

23461-MCK-A00

Unavailable

11

COLLAR, SPLINE (30X11)

23462-MAT-000

$21.25

12

GEAR, COUNTERSHAFT FOURTH (32T)

23481-MAA-610

Unavailable

13

GEAR, MAINSHAFT FIFTH (30T)

23491-MCK-A00

$102.54

14

COLLAR, SPLINE (28X17)

23492-MCK-A00

Unavailable

15

GEAR, COUNTERSHAFT FIFTH (23T)

23501-MCK-A00

$105.78

16

GEAR, FINAL DRIVE (33T)

23725-MCK-A00

$101.72

17

WASHER (20X37X2)

90404-KK0-000

$4.10

18

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.04

19

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$5.85

20

CIRCLIP (OUTER) (28MM)

90601-422-000

$2.75

21

CIRCLIP (30MM)

90604-MG8-000

$3.16

22

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$37.03

23

BEARING, RADIAL BALL (305/28) (TOYO)

91004-MG8-003

Unavailable

24

BEARING, SEALED BALL (20X52X15) (TOYO)

91005-MG8-003

Unavailable

25

BOLT, FLANGE (6X16)

95701-06016-00

$1.50
