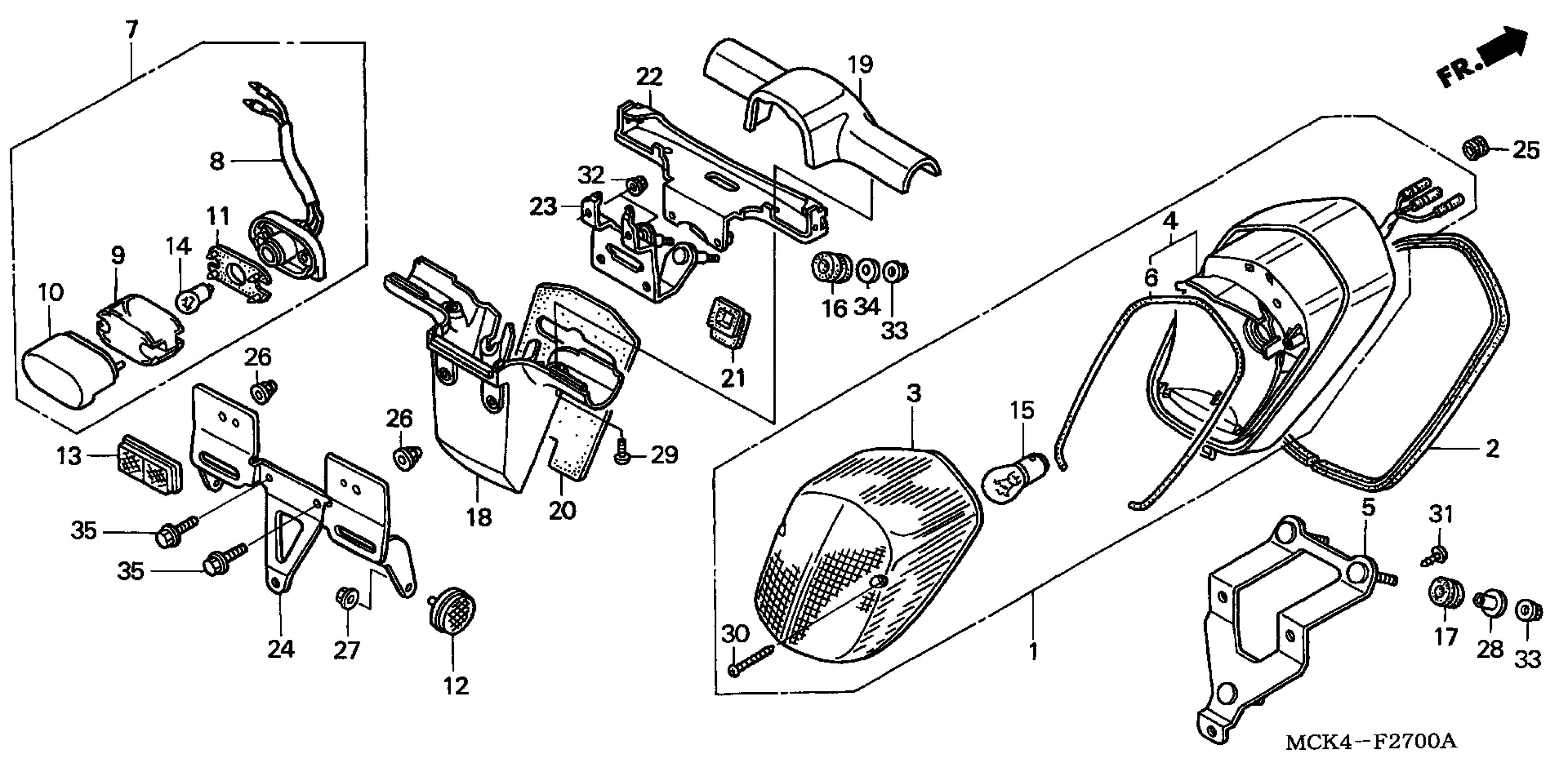

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 TAILLIGHT Diagram

TAILLIGHT ASSY.

33701-MCK-A01

Unavailable

MOLDING, RR. FENDER

33702-MBA-000

$12.11

LENS, TAILLIGHT

33702-MZ0-003

$39.94

BASE, TAILLIGHT

33704-MCK-A01

Unavailable

BRACKET, TAILLIGHT

33705-MBA-000

$19.15

GASKET, TAILLIGHT

33709-MZ0-000

$7.59

LIGHT ASSY., LICENSE

33720-MZ0-671

$134.44

BASE, LICENSE

33721-MZ0-003

Unavailable

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

COVER, LICENSE LIGHT

33727-KR3-000

$27.97

GASKET, LENS

33729-MB1-003

$6.30

REFLECTOR, RR. REFLEX

33741-HB9-641

$13.66

REFLECTOR, RR. REFLEX

33741-MR1-671

$19.03

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

BULB (12V8W4CP) (67) (STANLEY)

34909-505-003

$2.92

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

BULB, TURN SIGNAL (12V23/8W) (1034HD) (STANLEY)

34905-425-671

$6.67

RUBBER, FR. FENDER MOUNTING

61103-357-000

$3.37

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

BRACKET, LICENSE LIGHT

80120-MZ0-000

$61.03

COVER, LICENSE LIGHT

80121-MZ0-700

$59.03

RUBBER, LICENSE LIGHT CUSHION

80125-MBA-000

$10.23

GROMMET, LICENSE LIGHT

80126-MBA-000

Unavailable

STAY, LICENSE LIGHT

80126-MZ0-700

$31.70

STAY B, LICENSE LIGHT

80127-MZ0-700

$17.90

BRACKET, NUMBER PLATE

84701-MBA-670

$42.87

GROMMET, FENDER

88911-MJ3-000

$1.79

NUT, FLANGE CAP (5MM)

90167-SA0-980

$5.59

NUT, U (6MM)

90301-473-003

$4.07

COLLAR, HEADLIGHT BRACKET

90501-MJ6-000

$4.48

SCREW, PAN (5X14)

93500-05014-0A

$1.49

SCREW, TAPPING (4X35)

93901-348G0

$2.56

SCREW, TAPPING (5X12)

93911-25220

$1.49

NUT, FLANGE (4MM)

94050-04000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06000

$1.49

BOLT, FLANGE (6X18)

95701-06018-00

$1.62
