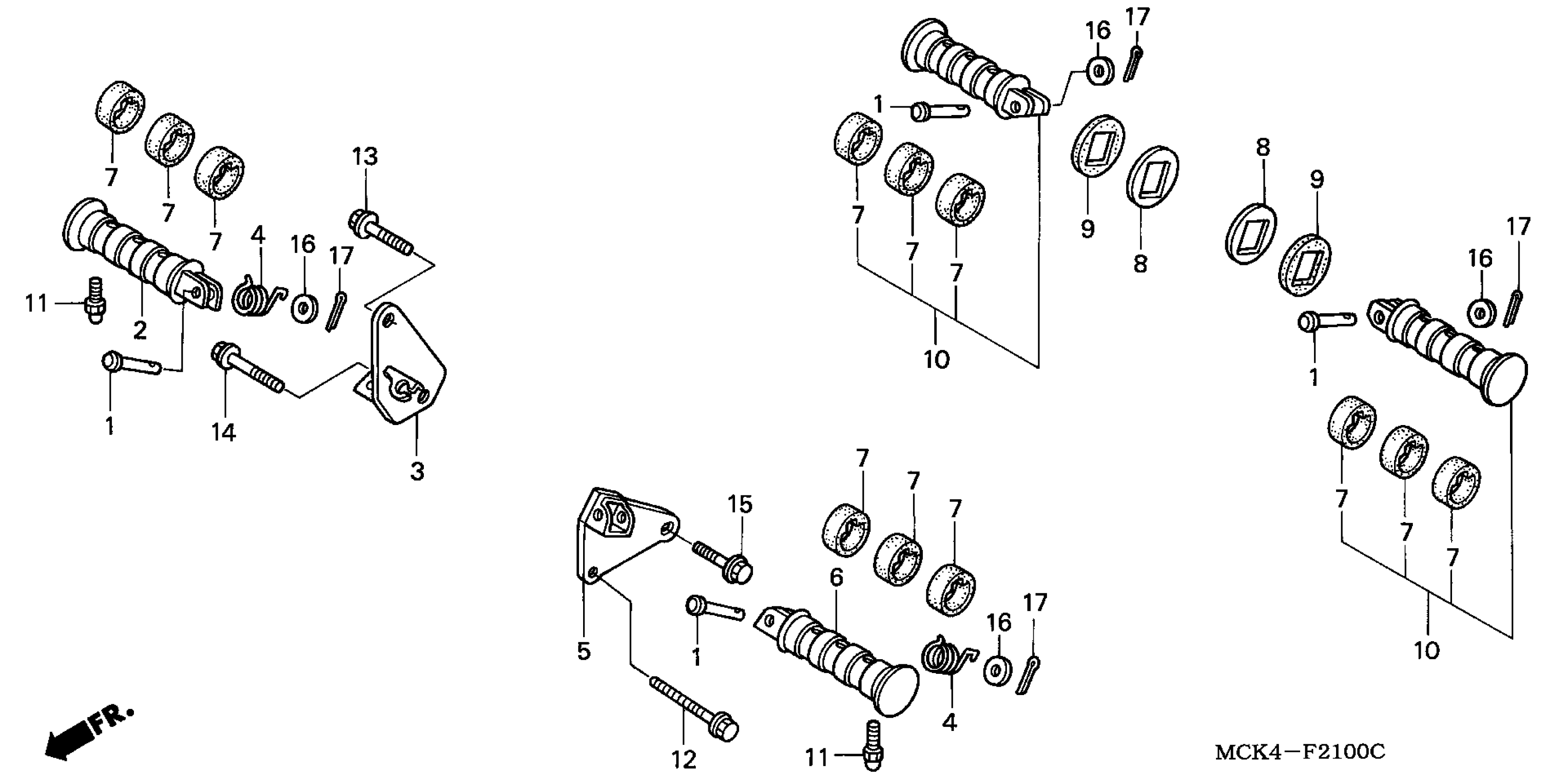

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 STEP Diagram

PIN, STEP BAR JOINT

50603-033-010

$3.06

BAR, R. STEP

50612-MBA-020

$22.87

BRACKET, R. STEP

50615-MCK-A00

Unavailable

SPRING, STEP RETURN

50617-MAA-A80

$5.60

BRACKET, L. STEP

50625-MAA-A80

$279.15

BAR, L. STEP

50642-MBA-020

$22.10

RUBBER, MAIN STEP

50661-MBA-010

$2.75

WASHER, PILLION STEP

50712-MBA-000

$5.49

RUBBER, PILLION STEP

50713-MBA-000

$3.51

STEP ASSY., PILLION

50715-MBA-020

$26.11

BOLT, BANK SENSOR

90111-MBA-003

$6.41

BOLT, FLANGE (8X130)

90116-MAA-A00

Unavailable

BOLT, FLANGE (10X20)

90130-126-900

$4.28

BOLT, SPECIAL FLANGE (10X60)

90159-438-000

$6.79

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.65

WASHER, PLAIN (8MM)

94101-08000

Unavailable

PIN, SPLIT (2.0X15)

94201-20150

$1.04
