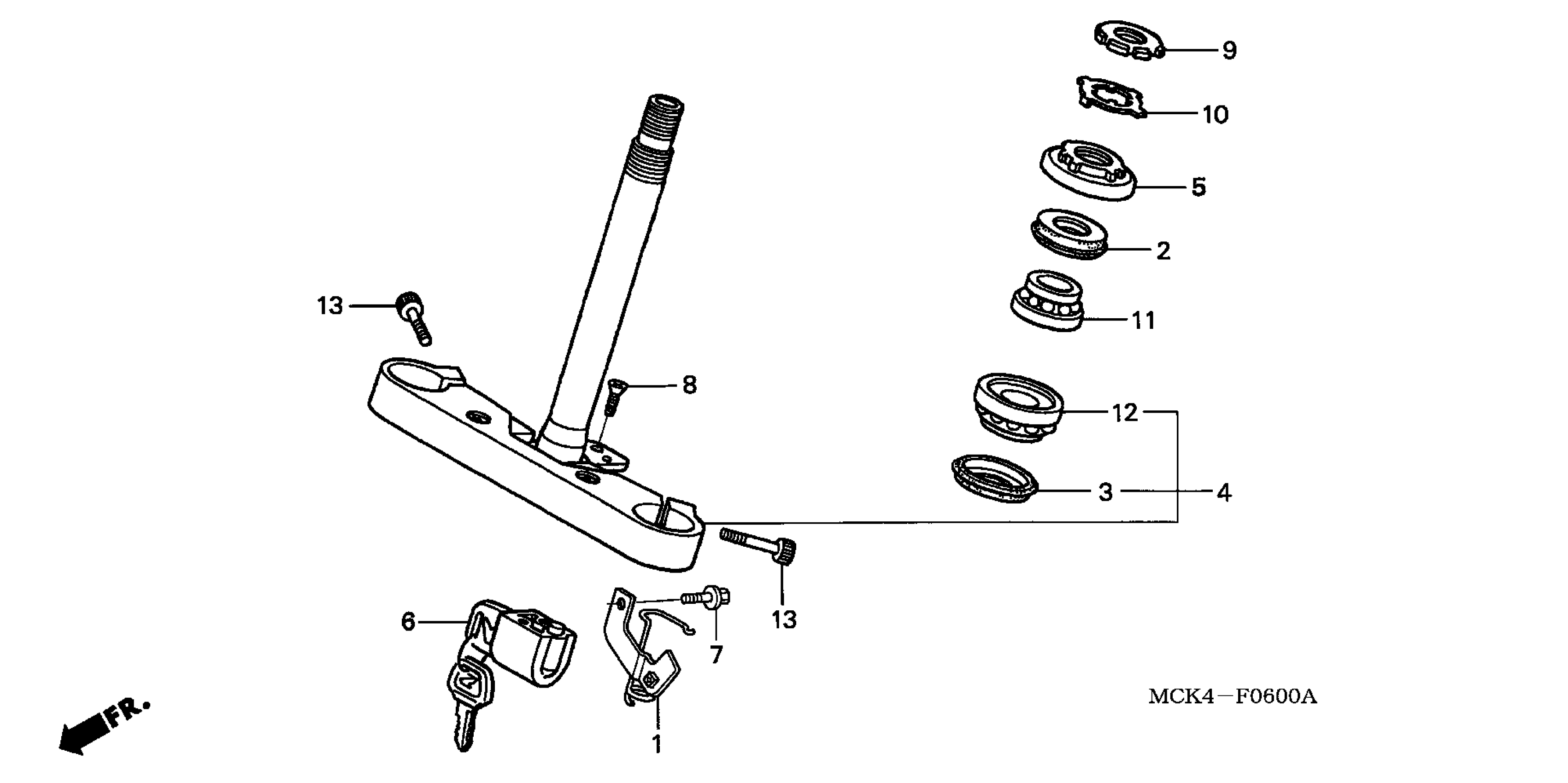

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 STEERING STEM Diagram

CLAMP, FR. BRAKE HOSE

45130-MCK-A00

$11.56

DUST SEAL, STEERING HEAD (ARAI)

53213-MB4-771

$12.13

DUST SEAL, STEERING HEAD

53214-371-010

$13.33

STEM SUB-ASSY., STEERING

53219-MCK-A50

$278.36

THREAD, STEERING HEAD TOP

53220-422-000

$32.73

LOCK, HANDLEBAR (HONDALOCK)

53600-GCN-003

$26.66

BOLT, FLANGE (6X12)

90130-ML0-730

$2.92

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

THREAD B, STEERING HEAD TOP

90302-425-830

$21.73

WASHER, LOCK

90506-425-830

$7.05

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$36.57

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$36.57

BOLT, SOCKET (10X25)

96700-10025-10

$2.51
