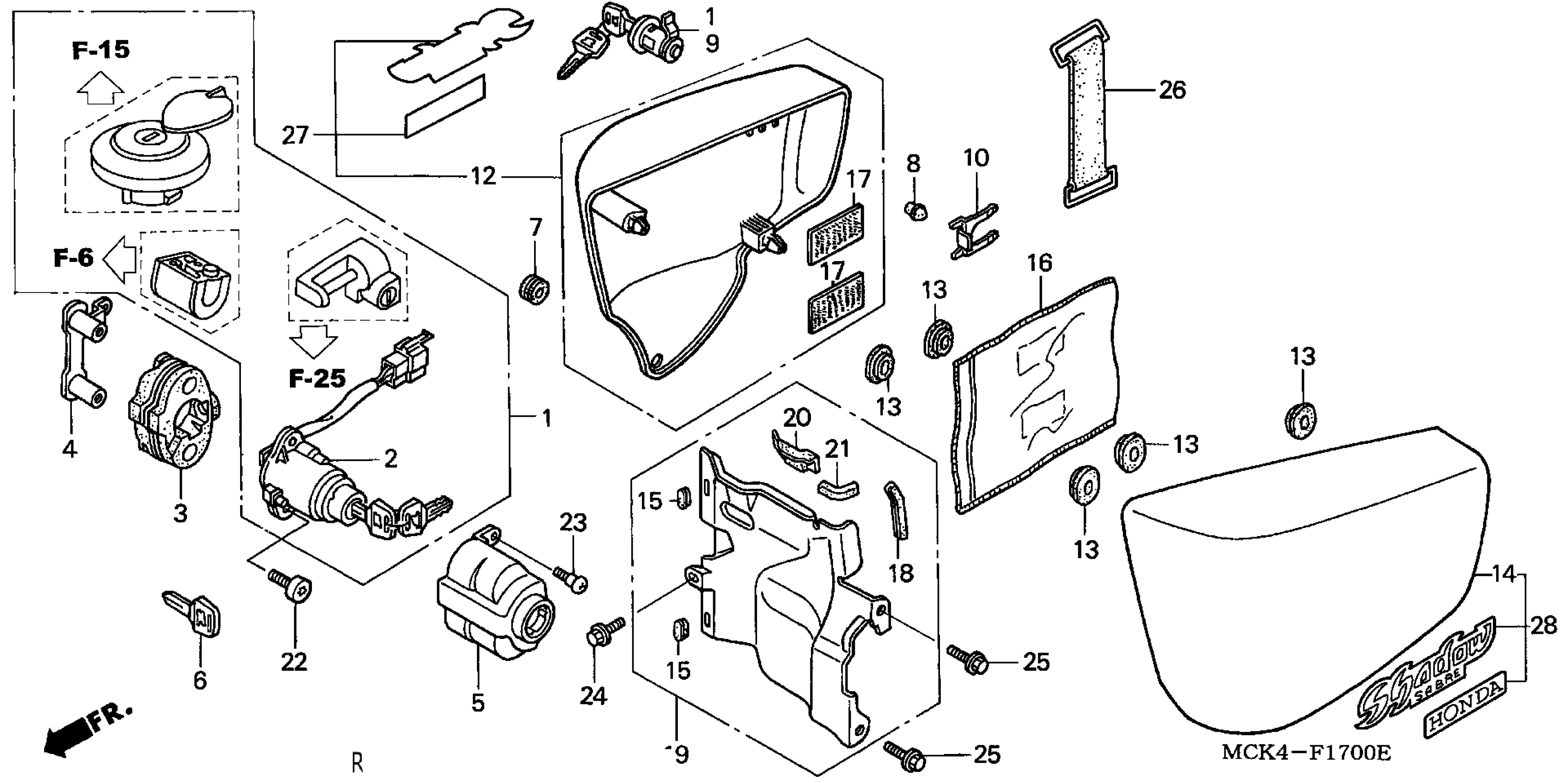

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 SIDE COVER Diagram

#

Description
Price

1

KEY SET This part replaces 35010-MCK-A00.

35010-MCK-A01

Unavailable

2

SWITCH ASSY., COMBINATION

35100-MCK-A00

$63.52

3

BASE, COMBINATION SWITCH

35102-MR1-000

$12.60

4

COLLAR, COMBINATION SWITCH

35103-MR1-000

Unavailable

5

COVER, COMBINATION SWITCH

35110-MR1-000

$26.67

6

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-MR1-770

$8.97

6

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-MR1-770

$8.97

7

GROMMET, SIDE COVER

50142-437-970

$2.51

8

CAP, STEP HOLDER END

50713-ML0-720

$3.12

9

LOCK ASSY., POCKET LID

64228-MT3-003

$29.74

10

SPRING, LOCK SETTING

77211-ME4-000

$6.62

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

Unavailable

15

GROMMET, SIDE COVER

83602-MM8-000

$4.09

16

BAG, OWNER'S MANUAL

83642-MAH-A40

$2.81

17

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80

18

RUBBER, PROTECTOR

83701-MAH-300

Unavailable

19

COVER ASSY., CENTER

83702-MAH-000

$212.01

20

RUBBER C, PROTECTOR

83704-MAH-300

Unavailable

21

RUBBER D, PROTECTOR

83705-MAH-300

Unavailable

22

BOLT, TORX (6X14)

90107-KCR-000

$3.38

23

SCREW, RR. COVER

90114-GB6-920

$1.46

24

BOLT, FLANGE (6X10)

96001-06010-00

$1.50

25

BOLT, FLANGE (6X12)

96001-06012-02

$1.15

26

BAND A, BATTERY | (Optional).

95012-11001

$2.80

27

COVER SET, R. SIDE (TYPE1) (WL)

83510-MCK-A80ZA

Unavailable

27

COVER SET, R. SIDE (TYPE2) (WL)

83510-MCK-A80ZB

$174.12

28

COVER SET, L. SIDE (TYPE1) (WL)

83610-MCK-A80ZA

$177.71

28

COVER SET, L. SIDE (TYPE2) (WL)

83610-MCK-A80ZB

$156.74
