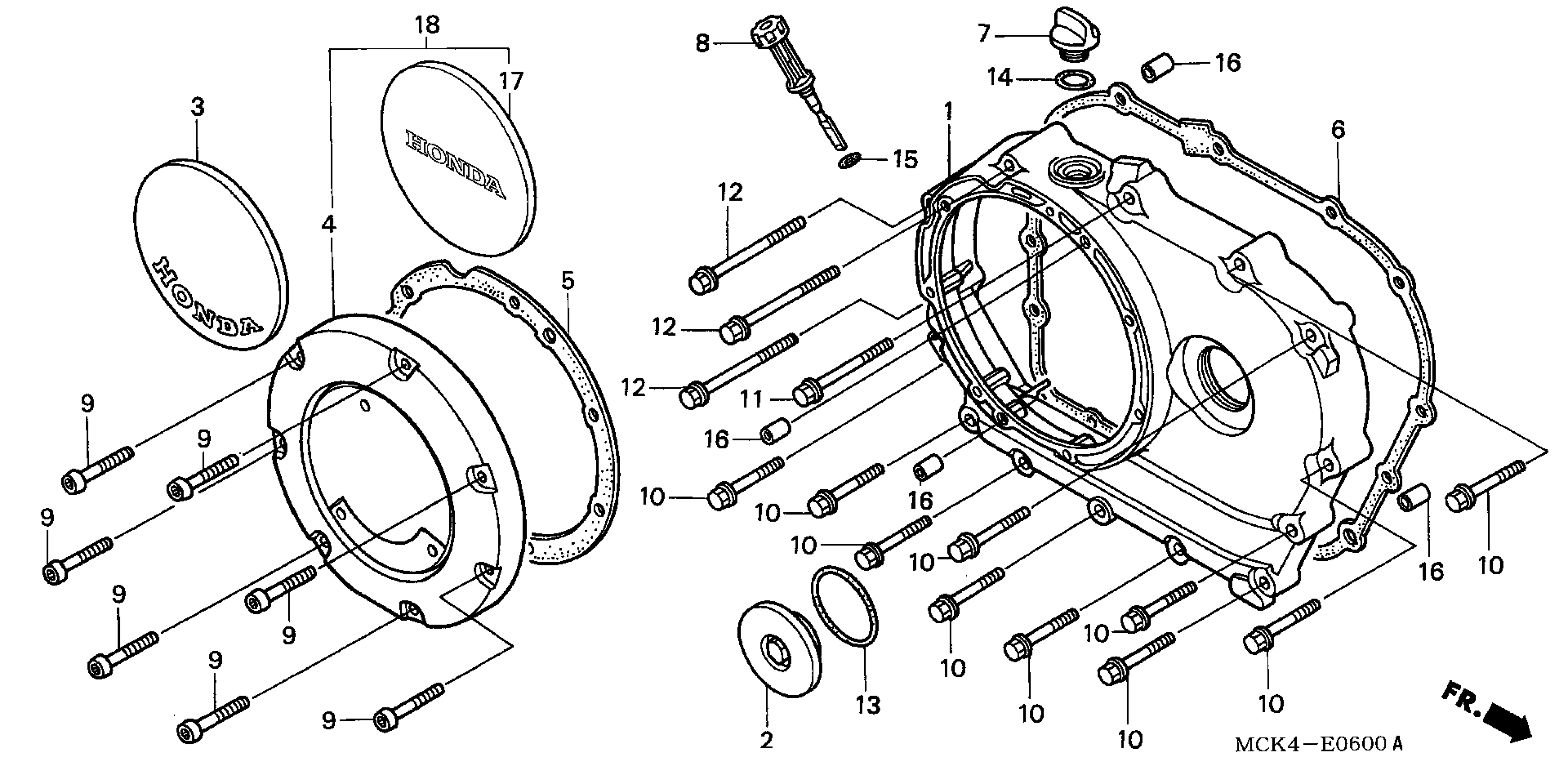

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MAH-000

$389.19

CAP (45MM)

11332-MZ5-000

Unavailable

COVER, CLUTCH

11371-MCK-A50

$242.57

GASKET, CLUTCH COVER

11372-MAH-000

$12.52

GASKET, R. CRANKCASE COVER

11394-MM8-881

$20.63

CAP, OIL FILLER

15611-KA4-710

$13.22

DIPSTICK, OIL

15650-MAA-A00

$16.62

BOLT, SPECIAL SOCKET (6X30)

90002-MAH-000

Unavailable

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.78

BOLT, FLANGE (6X50) (NSHF)

90006-GHB-730

$1.66

BOLT, FLANGE (6X60) (NSHF)

90006-GHB-750

$1.82

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

O-RING (18X3) (ARAI)

91307-KF0-003

$2.71

O-RING (8.4X2.4)

91316-MJ8-003

$2.41

PIN, DOWEL (8X14)

94301-08140

$2.62

PLATE, EMBLEM

11335-MCK-A50

$18.40
