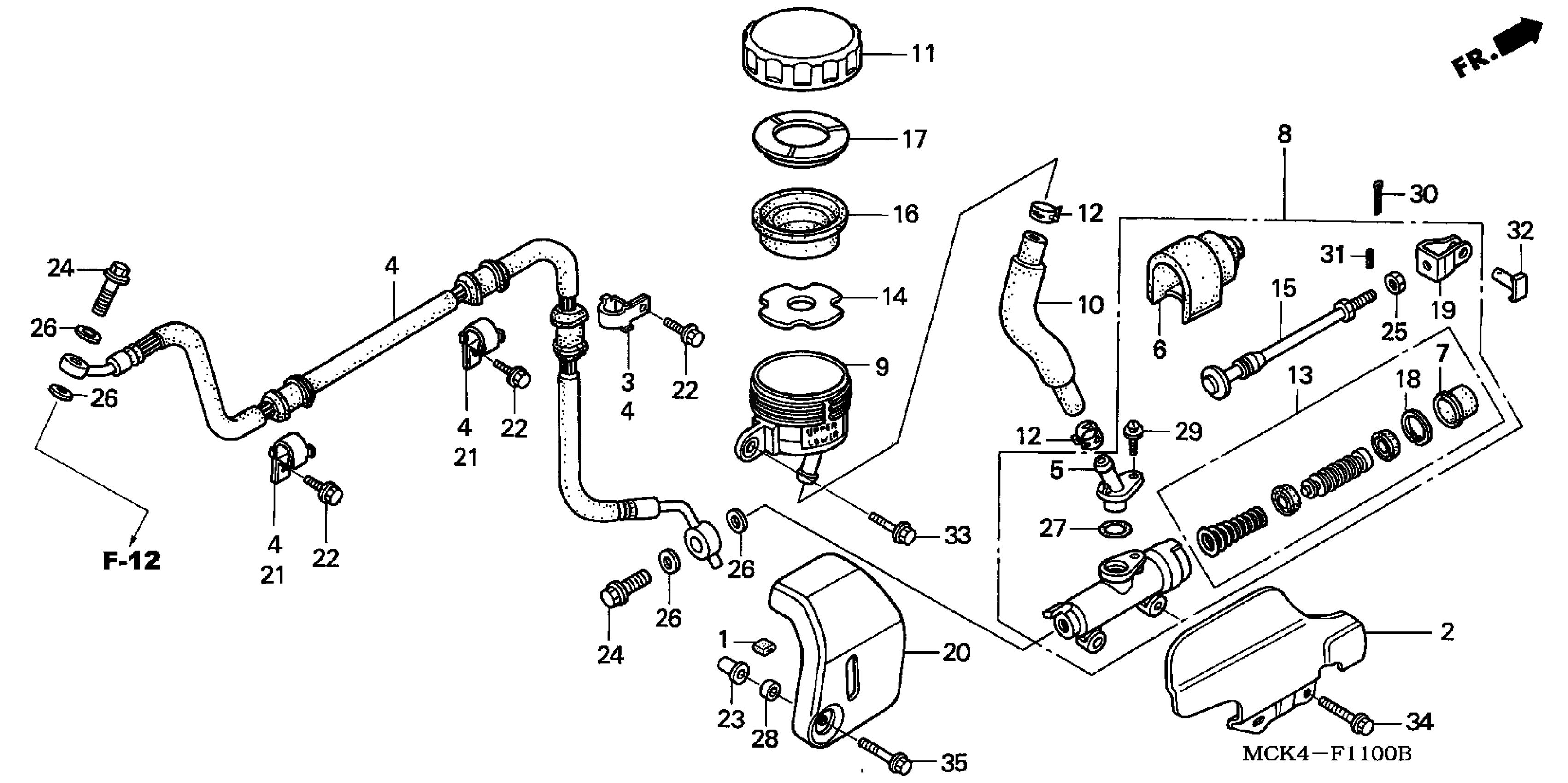

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

RUBBER, PROTECTOR GASKET

18293-147-000

$3.75

2

GUARD, MASTER CYLINDER HEAT

40545-MCK-A00

$12.23

3

CLAMP B, RR. BRAKE HOSE

43156-MAH-000

Unavailable

4

HOSE, RR. BRAKE

43310-MAH-A81

$27.28

5

CONNECTOR, RR. BRAKE MASTER CYLINDER

43503-MAH-671

$10.94

6

BOOT B, RR. MASTER CYLINDER

43504-MAH-670

Unavailable

7

BOOT

43504-MB2-006

$9.01

8

SUB ASSY, RR M/C This part replaces 43510-MCK-A01.

43510-MCK-A02

Unavailable

9

CUP, OIL (NISSIN)

43511-MR7-016

$29.55

10

HOSE, RR. MASTER CYLINDER

43512-MAH-003

Unavailable

11

CAP, OIL CUP

43513-MY1-006

$26.39

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

13

PISTON SET, MASTER CYLINDER This part replaces 43520-MJ6-305.

43520-MJ6-315

$40.74

14

FLOAT, RR. MASTER CYLINDER

43523-MAH-671

$4.02

15

ROD, PUSH

43530-MCK-A01

Unavailable

16

DIAPHRAGM

45520-300-000

$8.13

17

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

18

CIRCLIP

46182-500-013

$4.46

19

JOINT, BRAKE ROD

46504-MAH-671

$13.01

20

COVER, MASTER CYLINDER RESERVE TANK

46550-MAH-000

$176.22

21

CLAMP, BRAKE HOSE

52114-KY1-000

$4.46

22

BOLT, FLANGE (6X16)

90111-MR1-000

Unavailable

23

NUT, COWL SETTING (6MM)

90114-KAS-900

$4.69

24

BOLT, OIL (10X22)

90145-MS9-612

$6.82

25

NUT, HEX. (8MM)

90305-MAH-671

$2.99

26

WASHER, OIL BOLT

90545-300-000

$3.72

27

O-RING (14.8X2.4)

91212-422-006

Unavailable

28

COLLAR, TANK SETTING

91501-883-691

Unavailable

29

SCREW-WASHER (4X12)

93893-04012-07

$1.22

29

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

30

PIN, SPLIT (2.0X15)

94201-20150

$0.94

31

PIN, SPRING (2X10)

94305-20102

$0.80

32

PIN D, JOINT

95015-54000

$3.95

33

BOLT, FLANGE (6X16)

95701-06016-08

$1.32

34

BOLT, FLANGE (6X25)

95701-06025-00

$1.64

35

BOLT, FLANGE (6X28)

96001-06028-02

$1.78
