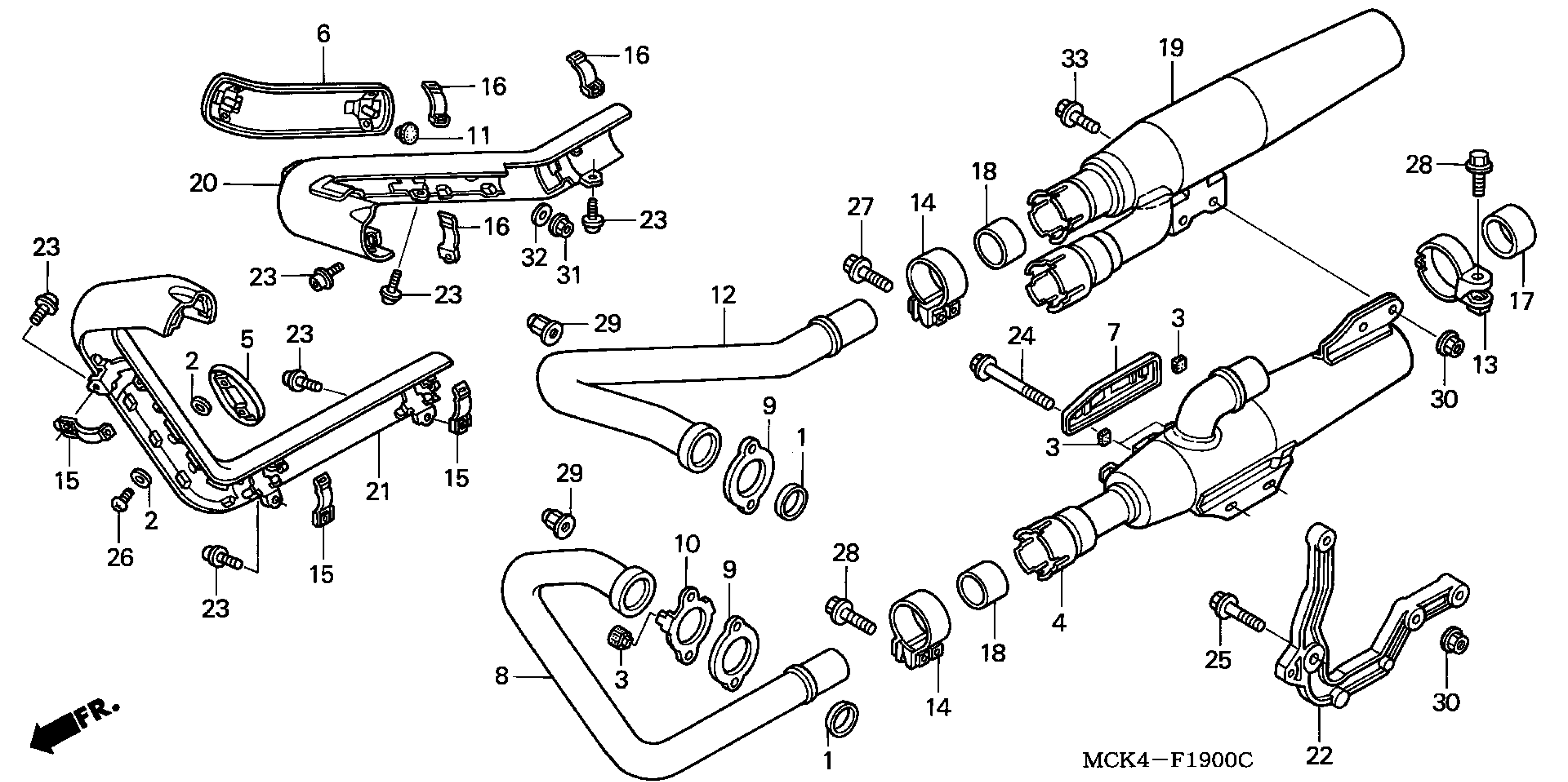

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MM8-880

$7.16

2

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

3

RUBBER, PROTECTOR

18293-MN0-000

$2.13

4

MUFFLER (LOWER)

18310-MCK-A01

Unavailable

5

SUB-COVER, EX. PIPE

18315-MAA-A00

Unavailable

6

PROTECTOR, RR. EX. PIPE

18315-MAH-003

$65.57

7

COVER, MUFFLER

18315-MR1-000

$37.20

8

PIPE, FR. EX.

18320-MAA-A01

Unavailable

9

JOINT, EX. PIPE

18325-MAH-000

$19.97

10

HOLDER, FR. EX. PIPE COVER

18326-MAH-000

Unavailable

11

GROMMET A, MUFFLER PROTECTOR

18366-GW8-670

$4.23

12

PIPE, RR. EX.

18370-MCK-A01

$221.39

13

BAND, R. RR. MUFFLER

18375-MG7-000

$29.64

14

BAND, MUFFLER

18376-KG0-003

$18.83

15

BAND, EX. PIPE COVER

18376-MM8-000

$7.90

16

BAND, RR. EX. PIPE COVER

18377-MAH-000

$13.51

17

GASKET, MUFFLER

18392-MG7-750

$13.66

18

GASKET, MUFFLER

18392-MK4-000

$13.66

19

MUFFLER (UPPER)

18410-MCK-A01

Unavailable

20

COVER, RR. EX. PIPE

18420-MAH-610

$172.95

21

COVER A, FR. EX. PIPE

18421-MAA-A01

Unavailable

22

BRACKET, MUFFLER

18455-MCK-A00

Unavailable

23

BOLT, FLANGE SOCKET (6X16)

90101-MW3-600

$2.33

24

BOLT, FLANGE (8X40)

90103-KAB-670

$4.28

25

BOLT, FLANGE (8X32)

90109-MAH-000

$9.46

26

SCREW, PAN (5X8) (STAY COVER)

90110-SH3-000

$4.26

27

BOLT, FLANGE (8X32)

90125-GS9-000

$2.97

28

BOLT, FLANGE (8X35)

90161-ML7-000

$3.67

29

NUT, CAP (8MM)

90304-ME1-670

$5.94

30

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

31

NUT-WASHER (5MM)

94070-05080

$1.49

32

WASHER, PLAIN (5MM)

94103-05800

$1.49

33

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
