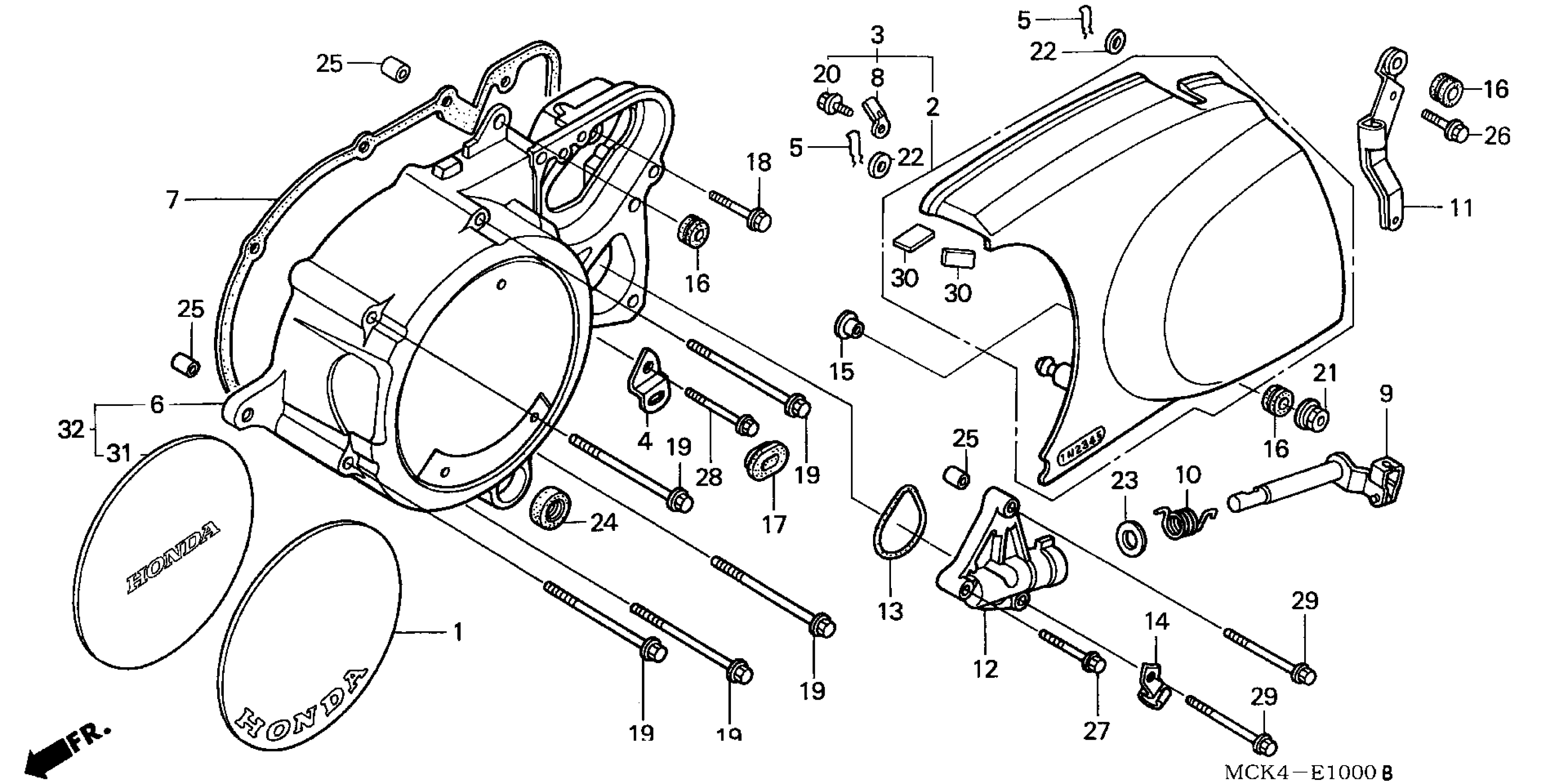

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 LEFT CRANKCASE COVER Diagram

#

Description
Price

2

COVER, L. RR.

11340-MAH-A40

$132.97

4

STAY, L. RR. COVER

11342-MM8-000

Unavailable

5

CLIP, L. RR. COVER

11356-MAH-000

$5.31

6

COVER, L. CRANKCASE

11361-MCK-A50

Unavailable

7

GASKET, L. CRANKCASE COVER

11395-MAH-000

$12.52

9

LEVER, CLUTCH

22710-MAH-000

Unavailable

10

SPRING, CLUTCH LEVER

22815-MAH-000

Unavailable

11

RECEIVER, CLUTCH CABLE

22821-MAH-000

Unavailable

12

HOLDER, CLUTCH LIFTER

22860-MAH-000

Unavailable

13

GASKET, CLUTCH LIFTER HOLDER

22862-MAH-003

$17.59

14

CLAMP, CABLE

32111-MM8-000

Unavailable

15

COLLAR, CHAIN GUARD

52159-KB7-000

$6.05

16

CUSHION, AIR CLEANER

80105-MG9-000

$2.40

17

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

18

BOLT, FLANGE (6X35) (NSHF)

90006-GHB-700

$1.78

19

BOLT, FLANGE (6X80) (NSHF)

90006-GHB-790

$1.87

21

NUT, FLANGE (6MM)

90302-187-000

$2.21

22

WASHER (9.5MM)

90504-MAH-000

$2.19

23

WASHER, ADJUST HANDLE THRUST

90553-702-000

Unavailable

24

OIL SEAL (12.5X25X8) (ARAI)

91204-425-003

$6.32

25

PIN, DOWEL (8X14)

94301-08140

$2.62

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.50

27

BOLT, FLANGE (6X35)

95801-06035-00

$0.99

28

BOLT, FLANGE (6X45)

95801-06045-00

$2.59

29

BOLT, FLANGE (6X60)

95801-06060-00

$2.07

30

CUSHION, RESERVE TANK

19105-MR8-300

$2.34

31

PLATE, EMBLEM

11335-MCK-A50

$18.40
