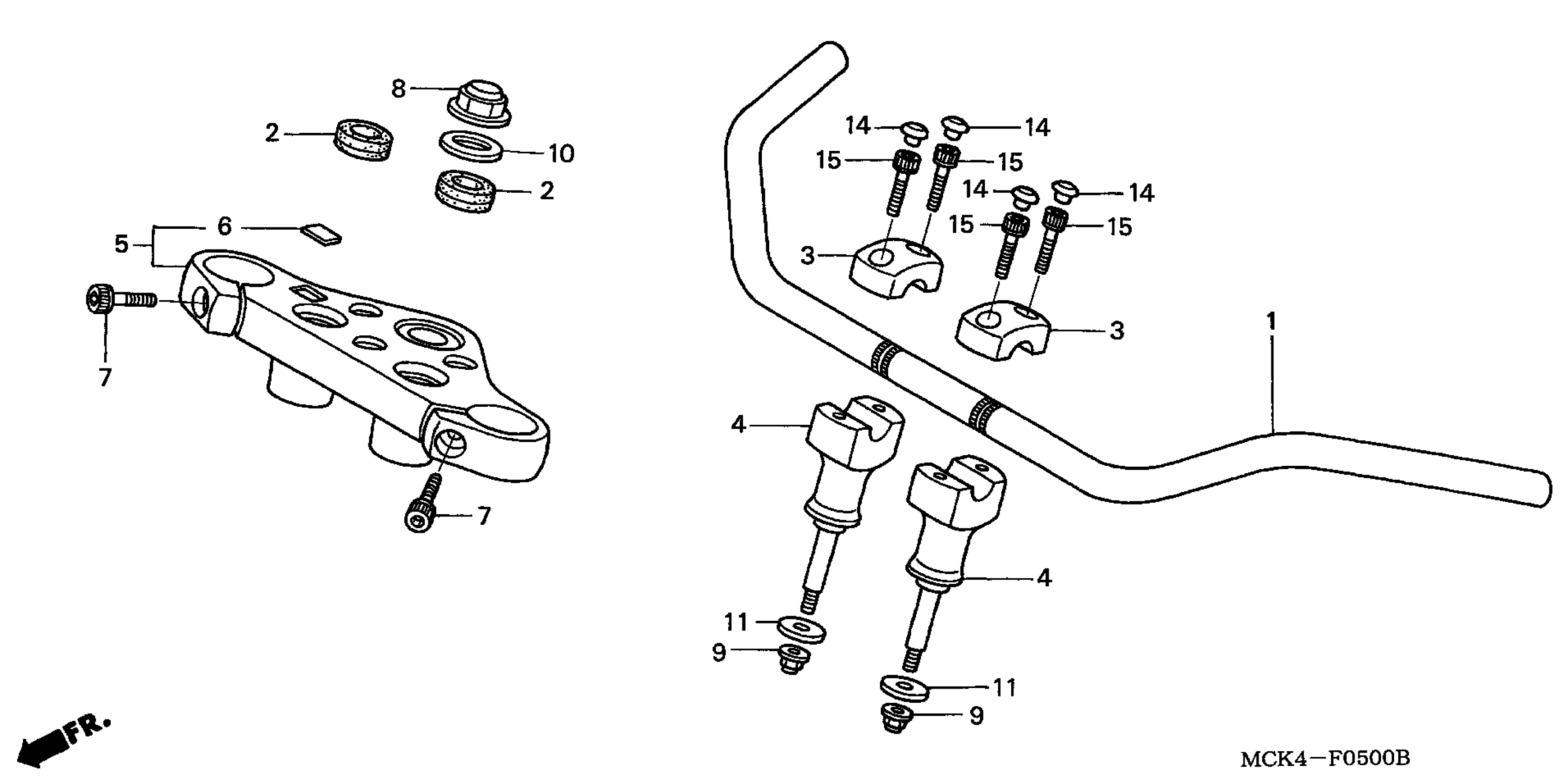

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 HANDLEBAR Diagram

#

Description

Price

1

HANDLEBAR

53100-MCK-A00

$133.27

2

CAP, HANDLE (LOWER)

53125-KW9-700

$4.94

3

HOLDER, HANDLE (UPPER)

53131-MM8-000

$17.26

4

HOLDER, HANDLE (LOWER)

53231-MZ8-A20

$48.23

5

BRIDGE ASSY., FORK TOP

53300-MBA-J11

$221.51

6

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.37

7

BOLT, SOCKET (8X30)

90112-KM4-000

$3.77

8

NUT, STEERING STEM

90304-415-000

$17.81

9

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

9

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

10

WASHER, STEERING STEM

90503-283-000

$4.07

11

WASHER, HANDLE HOLDER (LOWER)

90535-MR1-770

$3.55

14

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.36

15

BOLT, SOCKET (8X32)

96700-08032-10

$1.48
