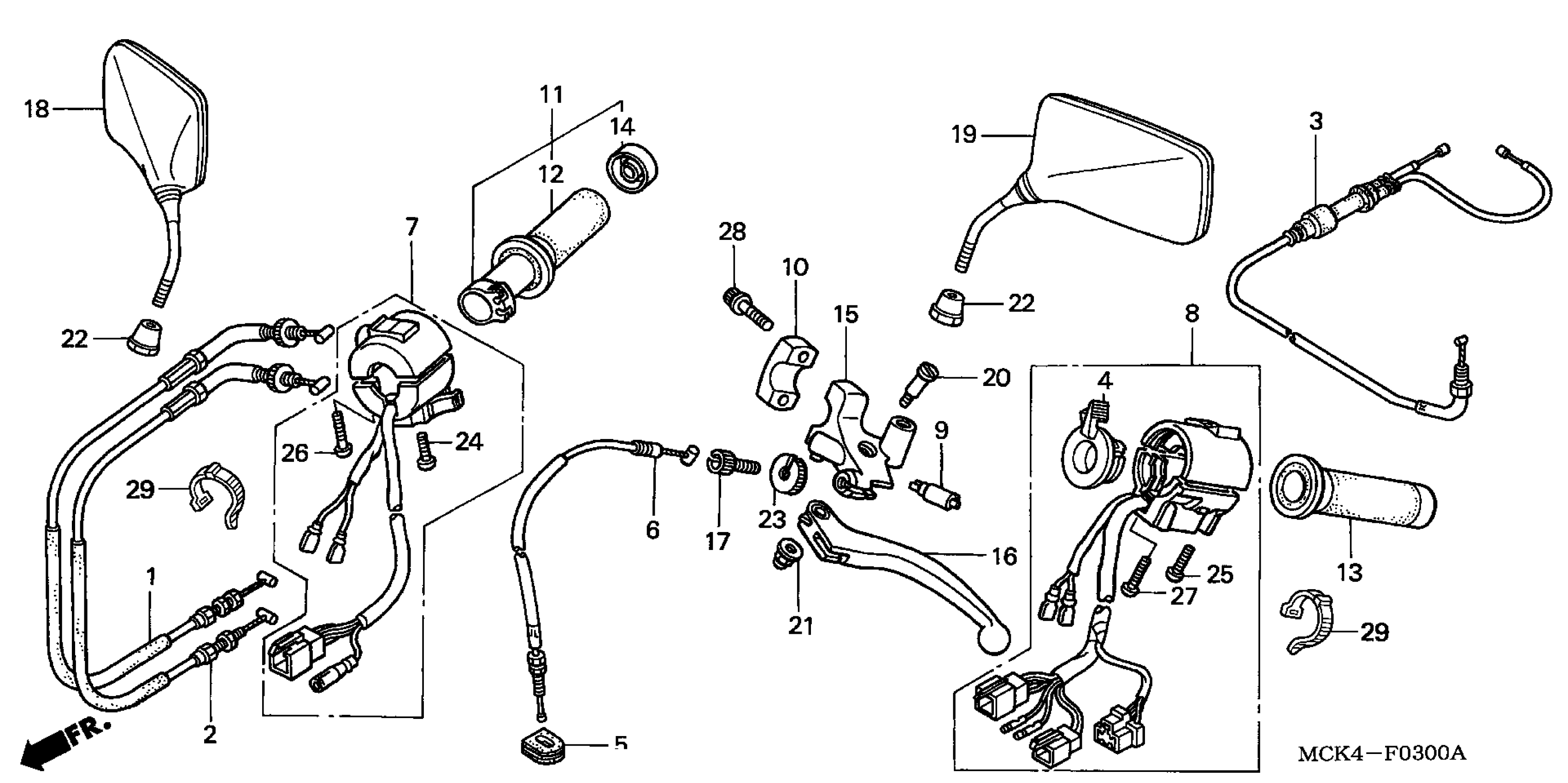

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 HANDLE SWITCH Diagram

CABLE A, THROTTLE

17910-MCK-A00

$29.64

CABLE B, THROTTLE

17920-MCK-A00

$29.13

CABLE, CHOKE

17950-MCK-A00

$65.95

LEVER, CHOKE

17962-MZ0-671

$22.04

GROMMET, WIRE

19905-ZA8-701

$3.92

CABLE, CLUTCH

22870-MCK-A00

$23.82

SWITCH ASSY., STARTER & STOP This part replaces 35013-MBH-671.

35013-MAH-A02

$137.60

SWITCH ASSY., STARTER & STOP This part replaces 35013-MBH-661.

35013-MAH-A02

$137.60

SWITCH SET, TURN SIGNAL

35020-MCK-A00

$135.74

SWITCH, FR. LEVER

35330-413-003

$21.91

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$27.25

GRIP, R.

53145-MM8-000

$43.84

GRIP, R.

53145-MM8-000

$43.84

GRIP, R. This part replaces 53165-MM8-000.

53145-MM8-000

$43.84

GRIP, L. HANDLE

53166-KCR-000

$36.92

CAP, GRIP END

53167-MM8-000

$9.37

BRACKET, HANDLE LEVER

53172-MR1-000

$35.68

LEVER, L. HANDLE

53178-MAH-000

$19.50

BOLT, WIRE ADJUSTING

53192-268-000

$6.72

MIRROR, R.

88210-GCK-000

Unavailable

MIRROR, L.

88220-GCK-000

$83.01

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, LOCK

90314-323-000

$4.45

NUT, FIXING

90321-MA6-750

$10.45

SCREW, PAN (5X20)

93500-05020-0A

$1.49

SCREW, PAN (5X22)

93500-05022-0A

$1.49

SCREW, PAN (5X25)

93500-05025-0A

$1.49

SCREW, PAN (5X32)

93500-05032-0A

$1.49

BOLT, SOCKET (6X22)

96600-06022-10

$2.10

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$2.10

BAND B1, CABLE

32161-404-610

$2.23
