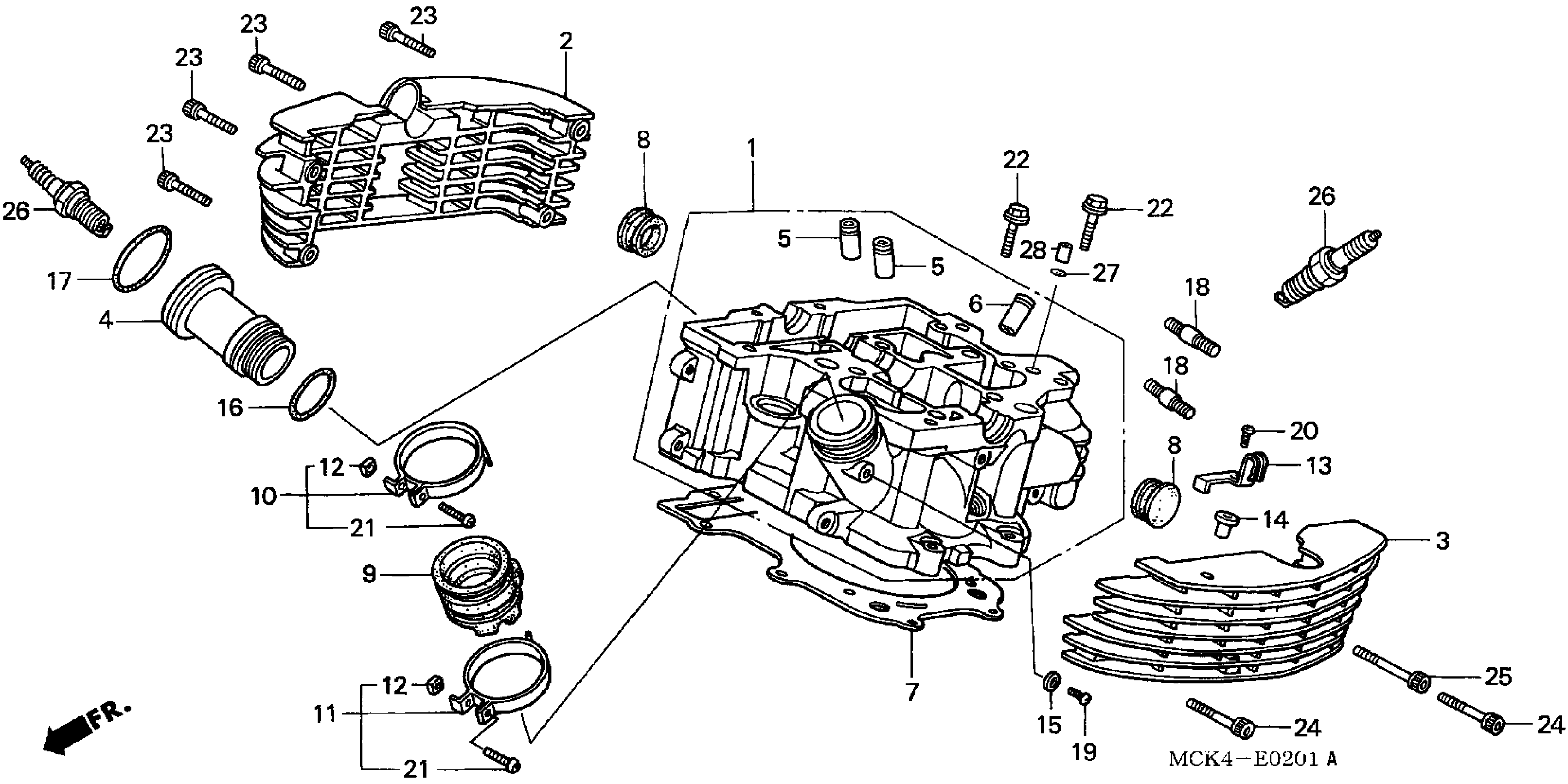

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 CYLINDER HEAD (RR.) Diagram

#

Description
Price

1

CYLINDER HEAD, RR.

12220-MCK-L50

Unavailable

2

FIN A, RR. CYLINDER HEAD

12222-MAH-A80

$947.00

3

FIN B, RR. CYLINDER HEAD

12223-MAH-A80

$81.89

4

SLEEVE, PLUG

12225-MG8-000

$38.87

5

GUIDE, VALVE

12231-MG8-305

$20.08

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MAH-003

$38.39

8

PLUG, CAMSHAFT

12312-ME9-750

$10.12

9

INSULATOR, CARBURETOR

16211-MAH-000

$23.53

10

BAND A, INSULATOR

16218-MAH-000

$10.57

11

BAND B, INSULATOR

16219-MAH-000

$6.87

12

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

13

CLIP, IGNITION WIRE

32905-MAH-000

$16.84

14

NUT (5MM)

64528-KV3-000

$8.80

15

WASHER, SEALING (5MM)

90452-323-000

$1.59

16

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

17

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

18

BOLT 2, STUD (8X28)

92900-08028-0E

$2.34

19

SCREW, PAN (5X8)

93500-05008-0A

$1.49

20

SCREW, PAN (5X12)

93500-05012-0G

$1.49

21

SCREW, PAN (5X25)

93500-05025-0G

$1.49

22

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

23

BOLT, SOCKET (6X20)

90001-MCK-A50

$2.18

24

BOLT, SOCKET (6X35)

90003-MCK-A50

Unavailable

25

BOLT, SOCKET (6X45)

90004-MCK-A50

$2.26

26

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

26

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

26

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

26

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

26

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

26

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54

27

O-RING (9.8X2.7) (NOK)

91309-MJ0-005

$4.06

28

PIN, DOWEL (10X12)

94301-10120

$2.28
