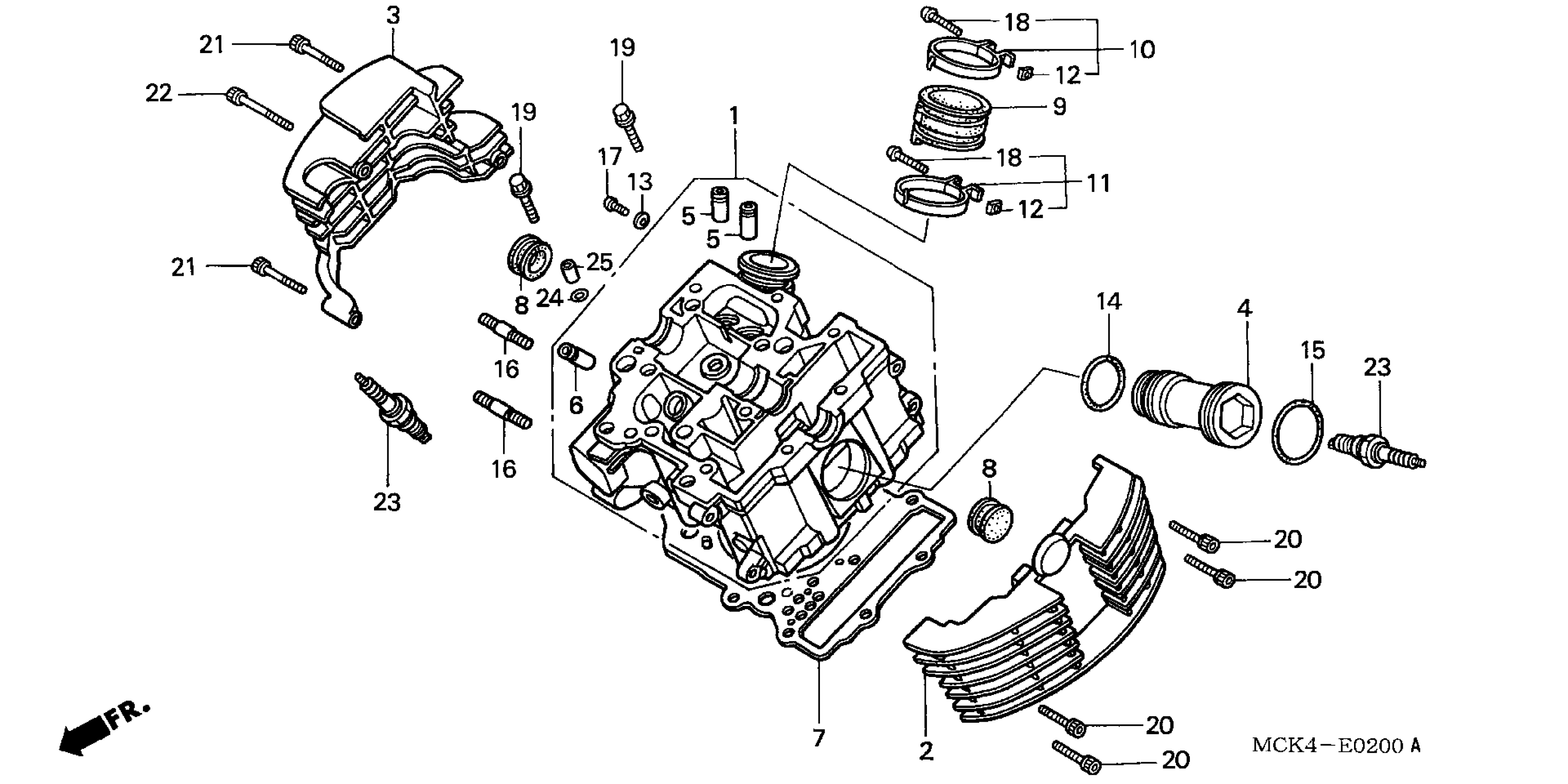

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 CYLINDER HEAD (FR.) Diagram

#

Description
Price

1

CYLINDER HEAD, FR.

12210-MCK-L50

$876.51

2

FIN A, FR. CYLINDER HEAD

12211-MAH-A80

Unavailable

3

FIN B, FR. CYLINDER HEAD

12221-MAH-A80

$93.41

4

SLEEVE, PLUG

12225-MG8-000

$38.87

5

GUIDE, VALVE

12231-MG8-305

$20.08

6

GUIDE, IN VALVE This part replaces 12233-MG8-305.

12233-MG8-405

Unavailable

6

GUIDE, IN VALVE

12233-MG8-405

Unavailable

7

GASKET, CYLINDER HEAD

12251-MAH-003

$38.39

8

PLUG, CAMSHAFT

12312-ME9-750

$10.12

9

INSULATOR, CARBURETOR

16211-MAH-000

$23.53

10

BAND A, INSULATOR

16218-MAH-000

$10.57

11

BAND B, INSULATOR

16219-MAH-000

$6.87

12

NUT, SQUARE (5MM)

16222-MV4-300

$2.15

13

WASHER, SEALING (5MM)

90452-323-000

$1.59

14

O-RING (27.4X2.4) (ARAI)

91304-MG7-003

$6.45

15

O-RING (35.3X2.4) (NOK)

91351-MG7-004

$7.99

16

BOLT 2, STUD (8X28)

92900-08028-0E

$2.34

17

SCREW, PAN (5X8)

93500-05008-0A

$1.49

18

SCREW, PAN (5X25)

93500-05025-0G

$1.49

19

BOLT, FLANGE (6X35)

95701-06035-07

$1.80

20

BOLT, SOCKET (6X25)

90002-MCK-A50

Unavailable

21

BOLT, SOCKET (6X35)

90003-MCK-A50

Unavailable

22

BOLT, SOCKET (6X45)

90004-MCK-A50

$2.26

23

SPARK PLUG (DPR6EA-9) (NGK) | (Optional).

98069-56916

$2.62

23

SPARK PLUG (X20EPR-U9) (DENSO) | (Optional).

98069-56926

$2.54

23

SPARK PLUG (DPR7EA-9) (NGK)

98069-57916

$2.62

23

SPARK PLUG (X22EPR-U9) (DENSO)

98069-57926

$2.54

23

SPARK PLUG (DPR8EA-9) (NGK) | (Optional).

98069-58916

$2.62

23

SPARK PLUG (X24EPR-U9) (DENSO) | (Optional).

98069-58926

$2.54

24

O-RING (9.8X2.7) (NOK)

91309-MJ0-005

$4.06

25

PIN, DOWEL (10X12)

94301-10120

$2.28
