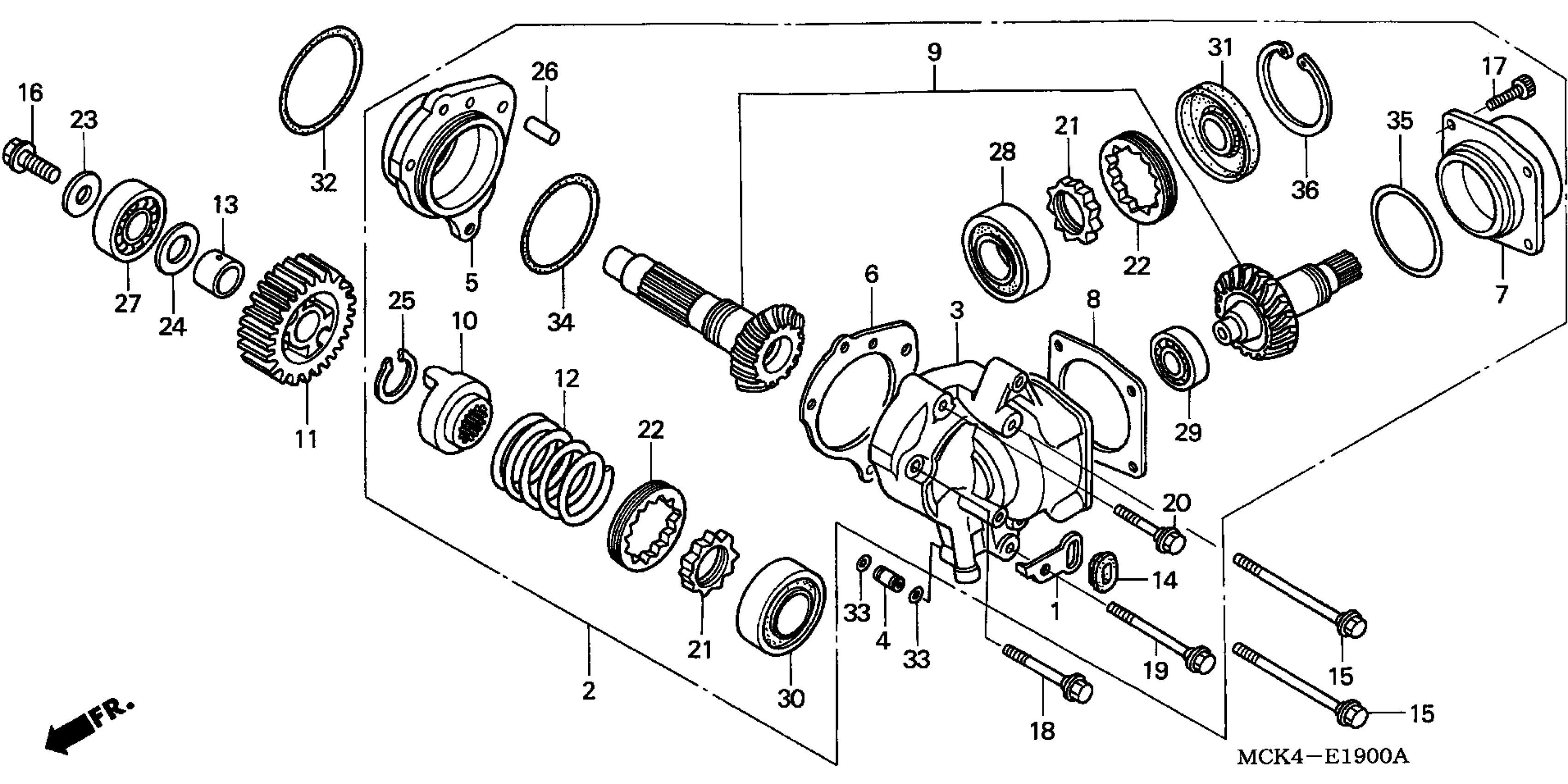

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 CROSS SHAFT Diagram

#

Description
Price

1

STAY, L. RR. COVER

11342-MAH-000

Unavailable

2

CASE ASSY., SIDE GEAR

21100-MCK-A00

$1,213.30

3

CASE, SIDE GEAR

21200-MM8-000

$576.10

4

ORIFICE, SIDE GEAR CASE

21215-ME9-000

$8.75

5

HOLDER, FINAL DRIVESHAFT BEARING

21281-MM8-000

$128.36

6

SHIM, FINAL DRIVESHAFT (0.40)

21311-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.45)

21312-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.50)

21313-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.55)

21314-MG8-000

Unavailable

6

SHIM, FINAL DRIVESHAFT (0.60)

21315-MG8-000

Unavailable

7

HOLDER, CROSS SHAFT BEARING

21371-MM8-680

Unavailable

8

SHIM, CROSS SHAFT (0.20)

21377-MB0-770

$21.06

8

SHIM, CROSS SHAFT (0.25)

21378-MB0-770

$20.14

8

SHIM, CROSS SHAFT (0.30)

21379-MB0-770

$20.14

8

SHIM, CROSS SHAFT (0.35)

21380-MB0-770

$20.14

8

SHIM, CROSS SHAFT (0.40)

21381-MB0-770

$22.99

8

SHIM, CROSS SHAFT (0.45)

21382-MB0-770

$22.99

8

SHIM, CROSS SHAFT (0.50)

21383-MB0-770

$22.99

8

SHIM, CROSS SHAFT (0.55)

21384-MB0-770

$22.99

8

SHIM, CROSS SHAFT (0.60)

21385-MB0-770

$22.99

9

SHAFT SET, CROSS

23200-MM8-000

$345.70

10

LIFTER, DAMPER

23721-MG8-000

$52.64

11

GEAR, DAMPER SHAFT (31T)

23726-MBC-000

Unavailable

12

SPRING, DAMPER

23732-MAH-000

$38.28

13

COLLAR (22X25X18.5)

23733-MG8-000

$16.74

14

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

15

BOLT, UBS (8X105)

90030-MG8-000

$7.51

16

BOLT, SPECIAL (10MM)

90038-ME9-000

Unavailable

17

BOLT, SOCKET (8X22)

90061-MB0-000

$4.96

18

BOLT, UBS (8X60)

90029-MG8-000

Unavailable

19

BOLT, UBS (8X85)

90064-MCK-A00

$5.14

20

BOLT, UBS (8X45)

90065-HA8-680

$6.46

21

NUT, LOCK (30MM)

90241-MB0-000

$18.94

22

NUT, LOCK (64MM)

90242-MB0-000

$29.19

23

WASHER (10MM)

90404-MG8-000

$8.16

24

WASHER, THRUST (20MM)

90451-426-000

$4.65

25

CIRCLIP (OUTER) (28MM)

90602-463-000

$3.32

26

PIN, DOWEL (10X24)

90701-MG8-000

$4.29

27

BEARING, RADIAL BALL (20X52X15) (TOYO)

91003-MG8-003

$36.49

28

BEARING, RADIAL BALL (5206) This part replaces 91008-300-008.

91012-MG7-003

$86.71

28

BEARING, RADIAL BALL (5206)

91012-MG7-003

$86.71

29

BEARING, BALL (6303) (KOYO)

91011-MB0-003

$27.90

29

BEARING, BALL (6303) (KOYO) This part replaces 91011-MB0-004.

91011-MB0-003

$27.90

30

BEARING, SPECIAL (30X62X25.8) (TOYO)

91012-MG8-003

$79.97

31

OIL SEAL (25X66X8.5) (ARAI)

91205-MG7-003

$16.85

32

O-RING (69.5X2.25) (ARAI)

91300-MG7-003

Unavailable

33

O-RING (4.8X1.9) (NOK) O-RING (7.7X2.3) (ARAI) This part replaces 91307-422-000.

91313-MA6-005

$2.38

33

O-RING (4.8X1.9) (NOK)

91313-MA6-005

$2.38

34

O-RING (64.5X3) (ARAI)

91310-MG7-003

Unavailable

35

O-RING (69.5X3) (ARAI)

91314-MG7-003

$8.30

36

CIRCLIP (INNER) (65MM)

94520-65120

$2.78
