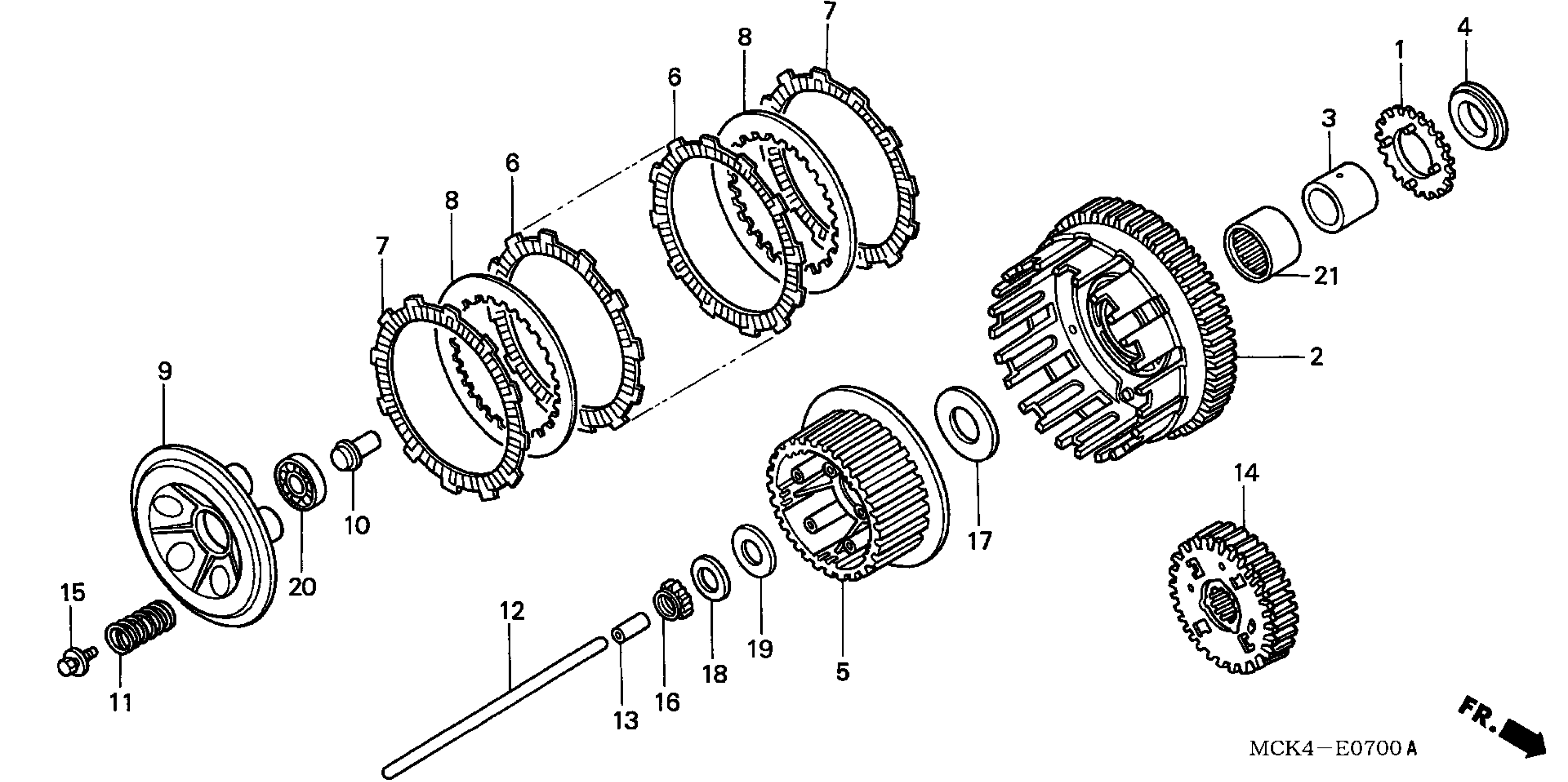

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 CLUTCH Diagram

#

Description
Price

1

SPROCKET, OIL PUMP DRIVE (26T)

15131-MG8-000

Unavailable

2

CLUTCH (OUTER)

22100-MCK-A00

Unavailable

3

GUIDE, CLUTCH (OUTER)

22116-MG8-000

Unavailable

4

COLLAR, DISTANCE

22117-MG8-000

Unavailable

5

CENTER, CLUTCH

22121-MCK-A00

Unavailable

6

DISK, CLUTCH FRICTION

22201-MAH-000

$27.66

7

DISK, CLUTCH FRICTION

22201-MM5-000

$28.39

8

PLATE, CLUTCH This part replaces 22321-ME5-003.

22321-GHB-811

$12.02

8

PLATE, CLUTCH This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

9

PLATE, CLUTCH PRESSURE

22350-MM5-000

Unavailable

10

PIECE, CLUTCH JOINT

22366-MS2-611

$17.03

11

SPRING, CLUTCH

22401-MAH-003

$6.93

12

ROD, CLUTCH LIFTER

22850-MAH-000

Unavailable

13

PIECE, CLUTCH LIFTER ROD

22852-MK5-000

$7.41

14

GEAR ASSY., PRIMARY DRIVE

23110-MAH-000

Unavailable

15

BOLT-WASHER (6X25)

90022-MM5-000

$2.97

16

NUT, LOCK (25MM)

90231-MS2-610

$18.78

17

WASHER, THRUST (28.2X56X2)

90401-MS2-610

$15.87

18

WASHER, SPRING (25MM) (CHUO SPRING)

90432-MM8-003

$7.70

19

WASHER, THRUST (25X40X2)

90451-VM0-000

$5.72

20

BEARING, RADIAL BALL (16003) This part replaces 91008-KK6-000.

91011-KK6-013

$15.40

20

BEARING, RADIAL BALL (16003) This part replaces 91008-362-000.

91011-KK6-013

$15.40

20

BEARING, RADIAL BALL (16003) This part replaces 91010-HC0-003.

91011-KK6-013

$15.40

20

BEARING, RADIAL BALL (16003)

91011-KK6-013

$15.40

21

BEARING, NEEDLE (35X42X30) (TOYO)

91024-MB0-003

$86.11

21

BEARING, NEEDLE (35X42X30) (TOYO) This part replaces 91024-MB0-004.

91024-MB0-003

$86.11
