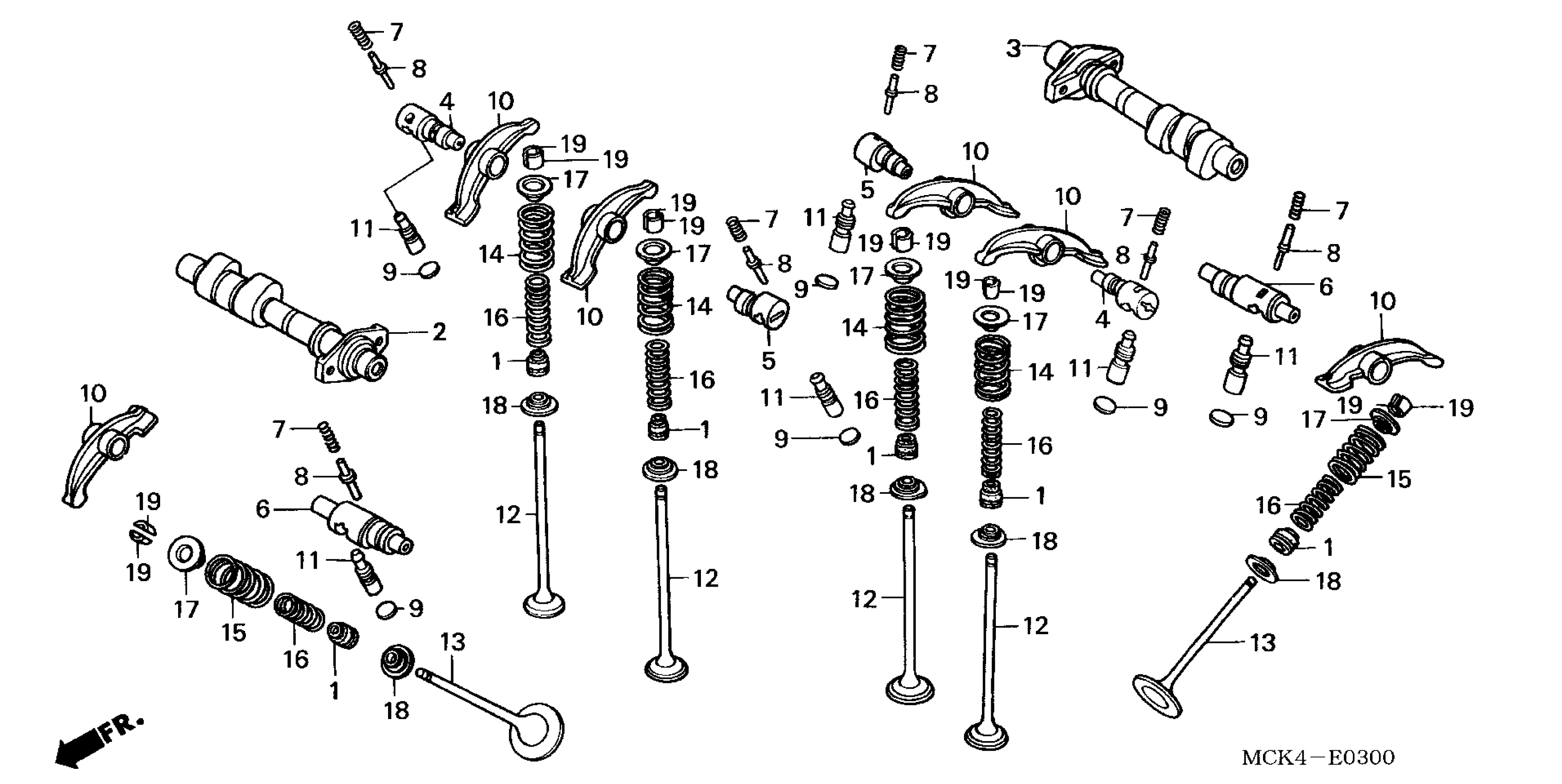

Honda VT1100C2A (07) SHADOW SABRE, USA, VIN# 1HFSC430-7A700001 CAMSHAFT Diagram

SEAL, VALVE STEM (ARAI)

12209-413-003

$14.98

CAMSHAFT, FR.

14111-MAH-000

Unavailable

CAMSHAFT, RR.

14121-MAH-000

$281.43

SHAFT B, ROCKER ARM

14451-MR6-670

$44.26

SHAFT A, ROCKER ARM

14452-MR6-670

$36.08

SHAFT C, ROCKER ARM

14453-MR6-670

Unavailable

SPRING, TAPPET ADJUSTING ASSIST

14461-MK7-670

Unavailable

SHAFT, TAPPET ADJUSTING ASSIST

14462-ME9-020

Unavailable

SHIM, TAPPET ADJUSTING (0.5)

14466-ME9-000

$5.16

SHIM, TAPPET ADJUSTING (1.0)

14467-ME9-000

$5.67

ARM, VALVE ROCKER

14611-MR5-670

Unavailable

ADJUSTER, HYDRAULIC LASH (NITTAN)

14630-MM8-000

$57.02

VALVE, IN.

14711-MR5-670

$48.77

VALVE, EX.

14721-MAH-000

$79.42

SPRING, IN. VALVE This part replaces 14751-ME9-000.

14751-MEA-670

$9.80

SPRING, EX. VALVE (OUTER)

14752-ME9-000

$13.84

SPRING, VALVE (INNER)

14762-MR5-671

Unavailable

RETAINER, VALVE SPRING

14771-410-010

$8.75

SEAT, VALVE SPRING

14775-ME9-000

$13.72

COTTER, VALVE

14781-MB9-000

$4.95
