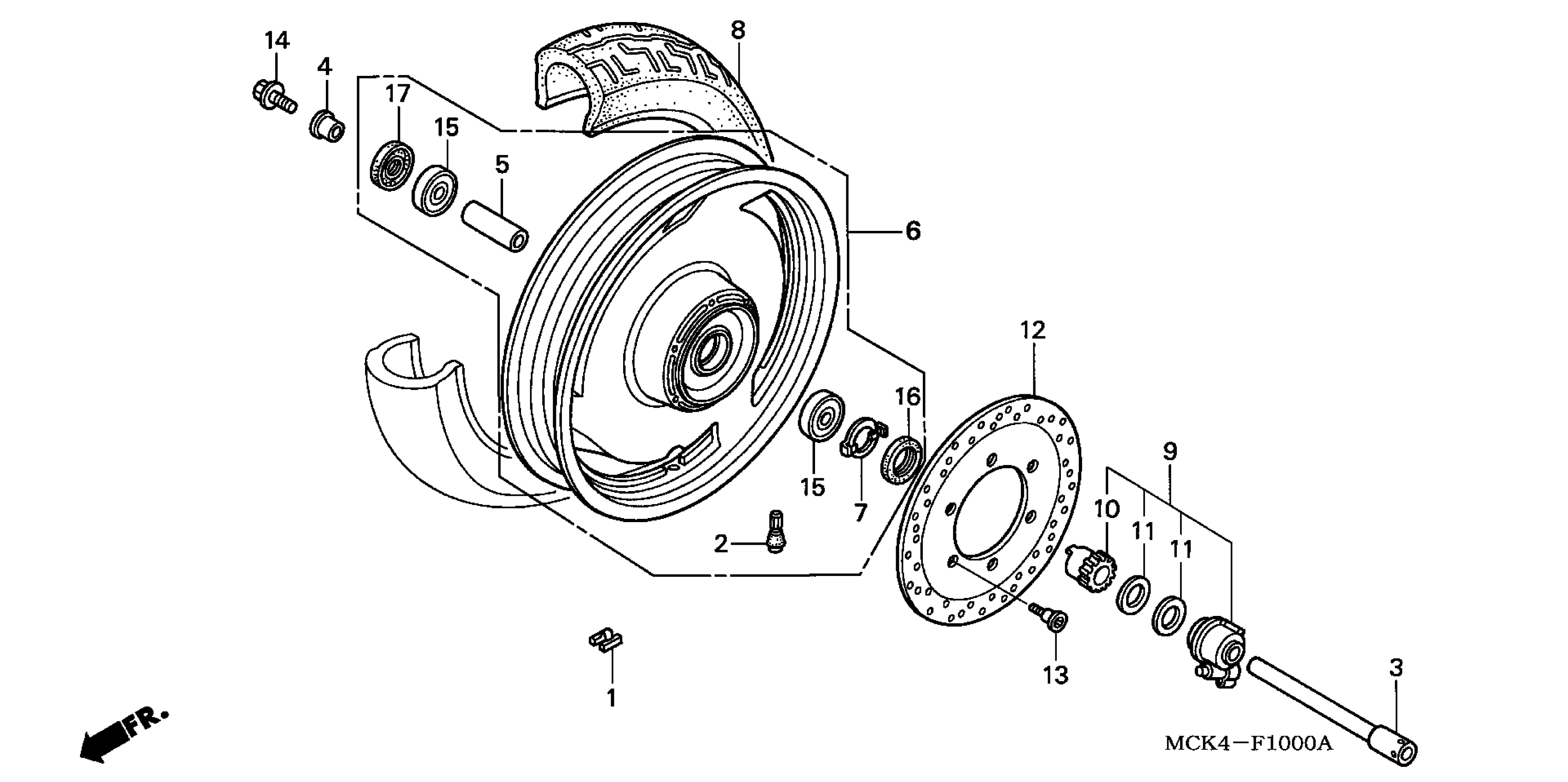

Honda VT1100C2A (06) SHADOW SABRE, USA, VIN# 1HFSC430-6A600001 TO 1HFSC430-6A699999 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.74

WEIGHT, BALANCE (20G)

42705-MCF-D60

$15.38

WEIGHT, BALANCE (30G)

42706-MCF-D60

$14.48

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

AXLE, FR. WHEEL

44301-MAH-671

$61.88

COLLAR, FR. WHEEL SIDE

44311-MCK-A00

Unavailable

COLLAR, FR. AXLE DISTANCE

44620-MBC-000

$16.92

WHEEL SUB-ASSY., FR. This part replaces 44650-MCK-A02.

44650-MCK-A03

Unavailable

WHEEL SUB-ASSY., FR.

44650-MCK-A03

Unavailable

RETAINER, GEAR BOX

44680-ML7-000

$5.08

TIRE, FR. (120/90-18) (M/C 65H) (DUNLOP U.S.A.)

44711-MCK-A02

Unavailable

BOX ASSY., SPEEDOMETER GEAR

44800-MM8-003

$98.63

GEAR, SPEEDOMETER

44806-MM8-003

$32.36

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

DISK, FR. BRAKE

45251-MBC-000

Unavailable

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

BOLT, DISK (8X24)

90105-MV9-003

$6.21

BOLT, FR. AXLE

90105-MBT-610

$5.76

BEARING, RADIAL BALL (6204)

91052-MBR-003

$18.89

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66
