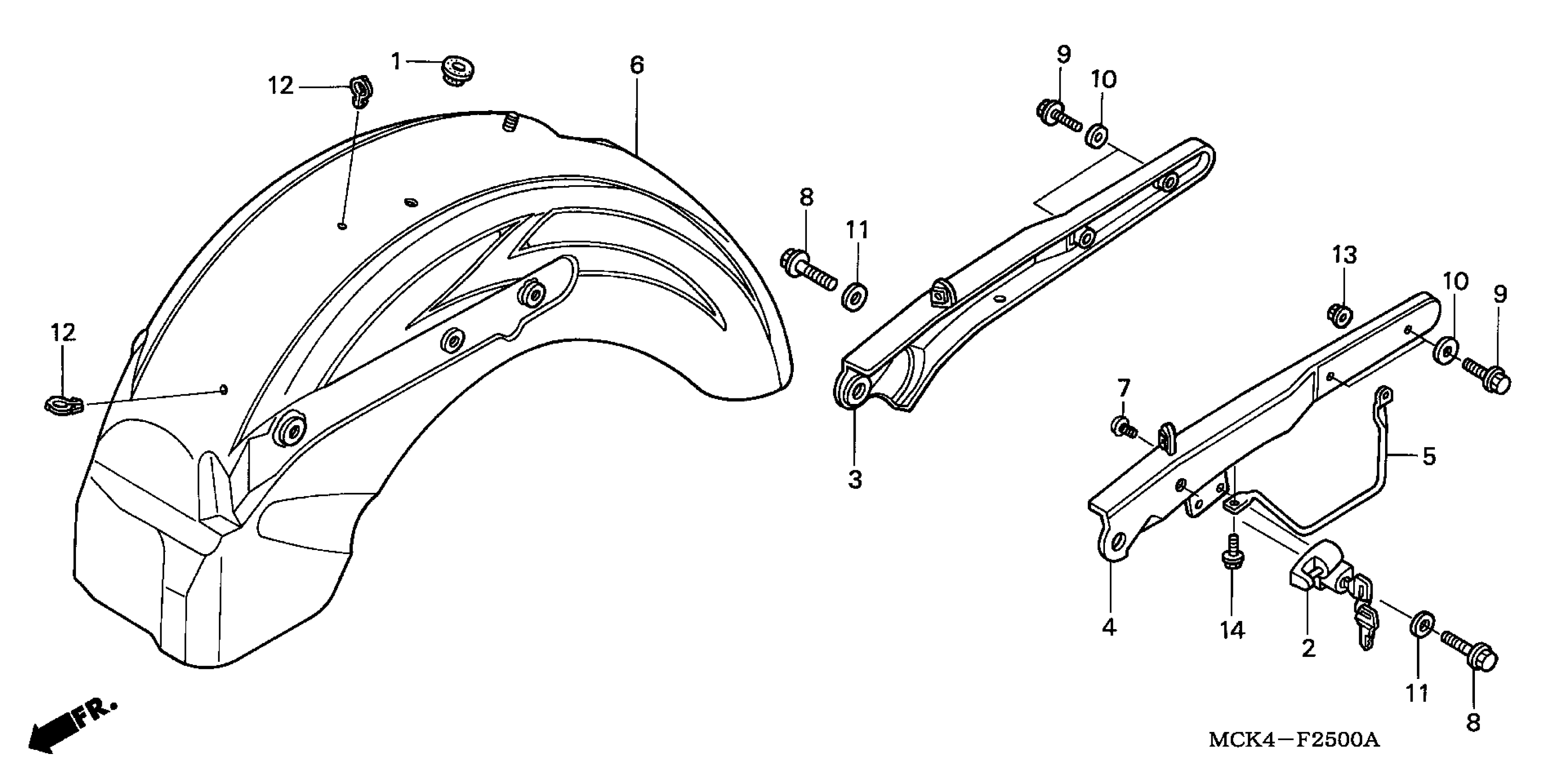

Honda VT1100C2A (05) SHADOW SABRE, USA, VIN# 1HFSC430-5A500001 TO 1HFSC430-5A599999 REAR FENDER Diagram

GROMMET, WIRE HARNESS

32983-447-000

$2.92

HOLDER ASSY., HELMET (COO) This part replaces 50710-GCN-003.

50710-GCN-305

$26.23

GRAB RAIL, R.

77330-MCK-A00

$102.20

GRAB RAIL, L.

77340-MCK-A00

$106.61

WIRE, L. GRAB RAIL

77341-MM8-000

Unavailable

FENDER SET, RR. (TYPE1)

80110-MCK-A60ZA

$943.80

FENDER SET, RR. (TYPE2) (WL)

80110-MCK-A60ZB

$1,203.90

SCREW, PAN (6X12)

90106-MAV-000

$2.18

BOLT, SPECIAL FLANGE (10X40) This part replaces 90124-KR3-000.

90101-MAA-000

$11.41

BOLT, SPECIAL FLANGE (8X26)

90183-438-000

$4.85

WASHER, PLAIN (8MM)

90501-MM8-610

$2.33

WASHER, PLAIN (10MM)

90502-MM8-610

$2.92

CLIP, HARNESS This part replaces 90659-MBC-680.

90659-734-K51

$2.13

CLIP, HARNESS (NIFCO)

90659-734-K51

$2.13

NUT, FLANGE (6MM)

94050-06080

$1.49

BOLT, FLANGE (6X16)

96001-06016-07

$1.49
