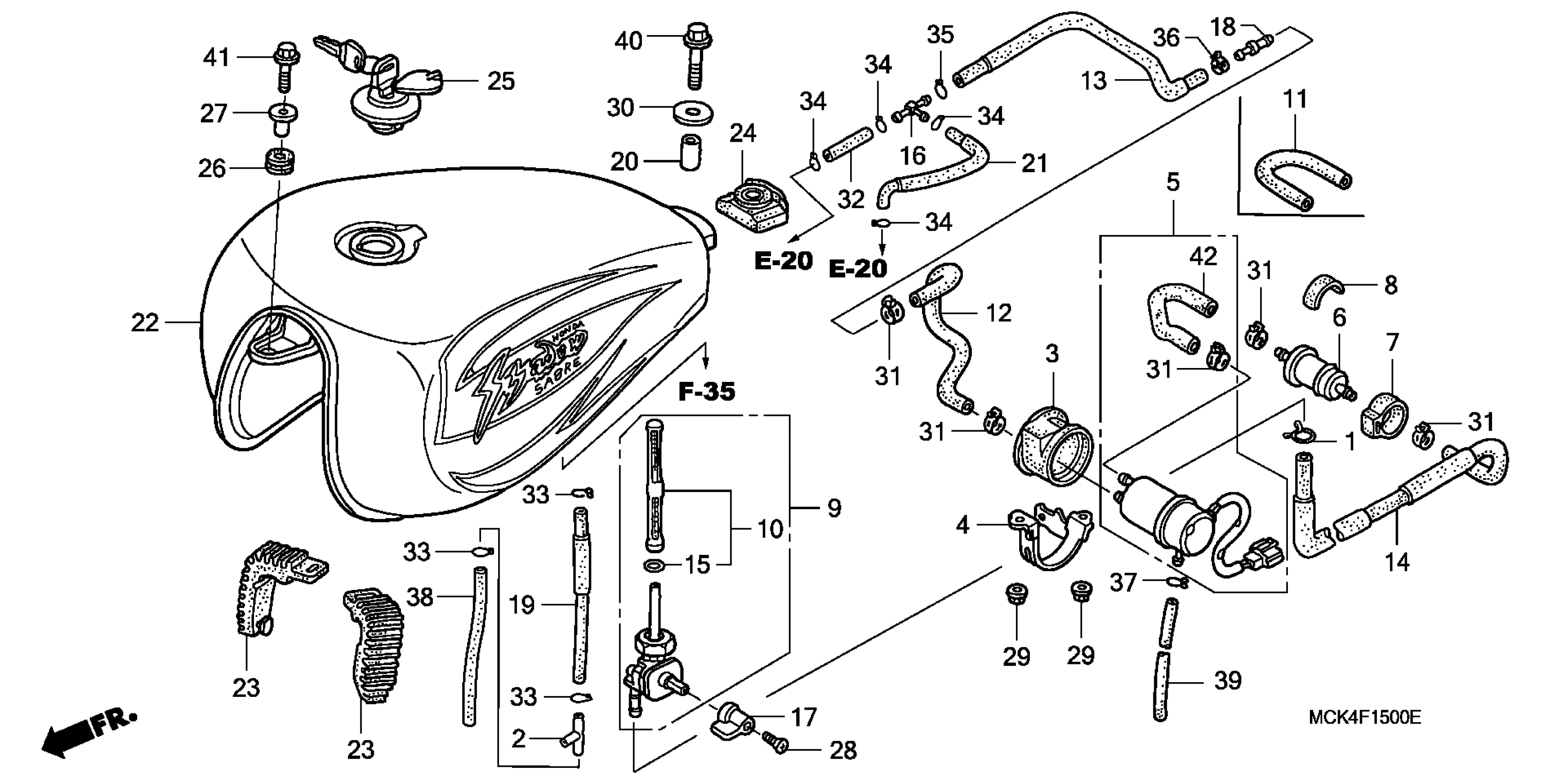

Honda VT1100C2A (05) SHADOW SABRE, USA, VIN# 1HFSC430-5A500001 TO 1HFSC430-5A599999 FUEL TANK Diagram

#

Description
Price

1

CLIP, OIL DRAIN TUBE

15771-KV6-000

$3.48

2

T-JOINT

16180-195-731

$11.63

3

RUBBER, FUEL PUMP

16701-MAA-000

$18.01

4

BAND, FUEL PUMP

16703-MCK-A00

$144.39

5

PUMP, FUEL This part replaces 16710-MCK-305.

16710-MCK-315

$131.98

5

PUMP, FUEL

16710-MCK-315

$131.98

6

FILTER, FUEL

16900-MG8-003

$21.10

7

CUSHION, FUEL STRAINER

16905-MG7-000

$7.39

8

PROTECTOR

16911-MAH-300

$5.91

9

PETCOCK ASSY.

16950-MAH-023

$93.11

10

SCREEN SET, FUEL STRAINER

16952-MAH-003

$32.36

12

TUBE C, FUEL

16953-MCK-A00

Unavailable

13

TUBE D, FUEL

16954-MAH-000

$14.89

14

TUBE A, FUEL

16955-MCK-A00

$24.04

15

O-RING

16958-KM9-005

$3.62

16

JOINT, FUEL TUBE

16961-MK7-000

$19.47

17

LEVER, PETCOCK

16963-MY5-610

$12.30

18

JOINT, FUEL TUBE

16966-MR1-000

$7.05

19

TUBE, FUEL TANK BREATHER

17467-MAH-000

Unavailable

20

COLLAR, FUEL TANK SETTING

17515-MAH-000

$2.80

21

TUBE, L. CARBURETOR FUEL

17515-MG8-000

$10.51

22

TANK SET, FUEL (TYPE1) (WL) This part replaces 17520-MCK-A60ZA.

17520-MCK-A40ZA

Unavailable

22

TANK SET, FUEL (TYPE2) (WL)

17520-MCK-A60ZB

Unavailable

23

RUBBER, FR. FUEL TANK

17611-MM8-000

$23.93

24

RUBBER, RR. FUEL TANK

17613-MM8-000

$34.00

25

CAP, FUEL FILLER This part replaces 17620-KR3-751.

17620-KR3-753

$63.69

26

RUBBER, RADIATOR MOUNTING

19051-GE2-000

$4.64

27

COLLAR, SETTING

61104-422-000

$6.44

28

SCREW, OVAL (5X12)

90111-MZ5-000

$3.59

29

NUT, U (6MM)

90301-473-003

$3.79

30

WASHER, TANK MOUNTING

90455-896-700

$2.86

31

CLAMP, CANISTER HOSE

90682-SA0-671

$7.13

32

BULK HOSE, FUEL (5.5X3000) (5.5X65)

95001-55003-60M

$42.48

33

CLIP, TUBE (B8)

95002-02080

$1.59

34

CLIP, TUBE (B10)

95002-02100

$1.72

35

CLIP, TUBE (B12)

95002-02120

Unavailable

36

CLAMP, TUBE (D12)

95002-41200-08

$2.30

37

CLIP, TUBE (C9)

95002-50000

$1.14

38

BULK HOSE, VACUUM (4.5X1000) (4.5X370)

95005-45001-10M

$21.06

39

BULK HOSE, VACUUM (5X3000) (5X300)

95005-50003-30M

$18.72

40

BOLT, FLANGE (8X35)

95701-08035-07

$1.28

41

BOLT, FLANGE (6X25)

96001-06025-07

Unavailable

42

TUBE B, FUEL

16952-MCK-A01

Unavailable
