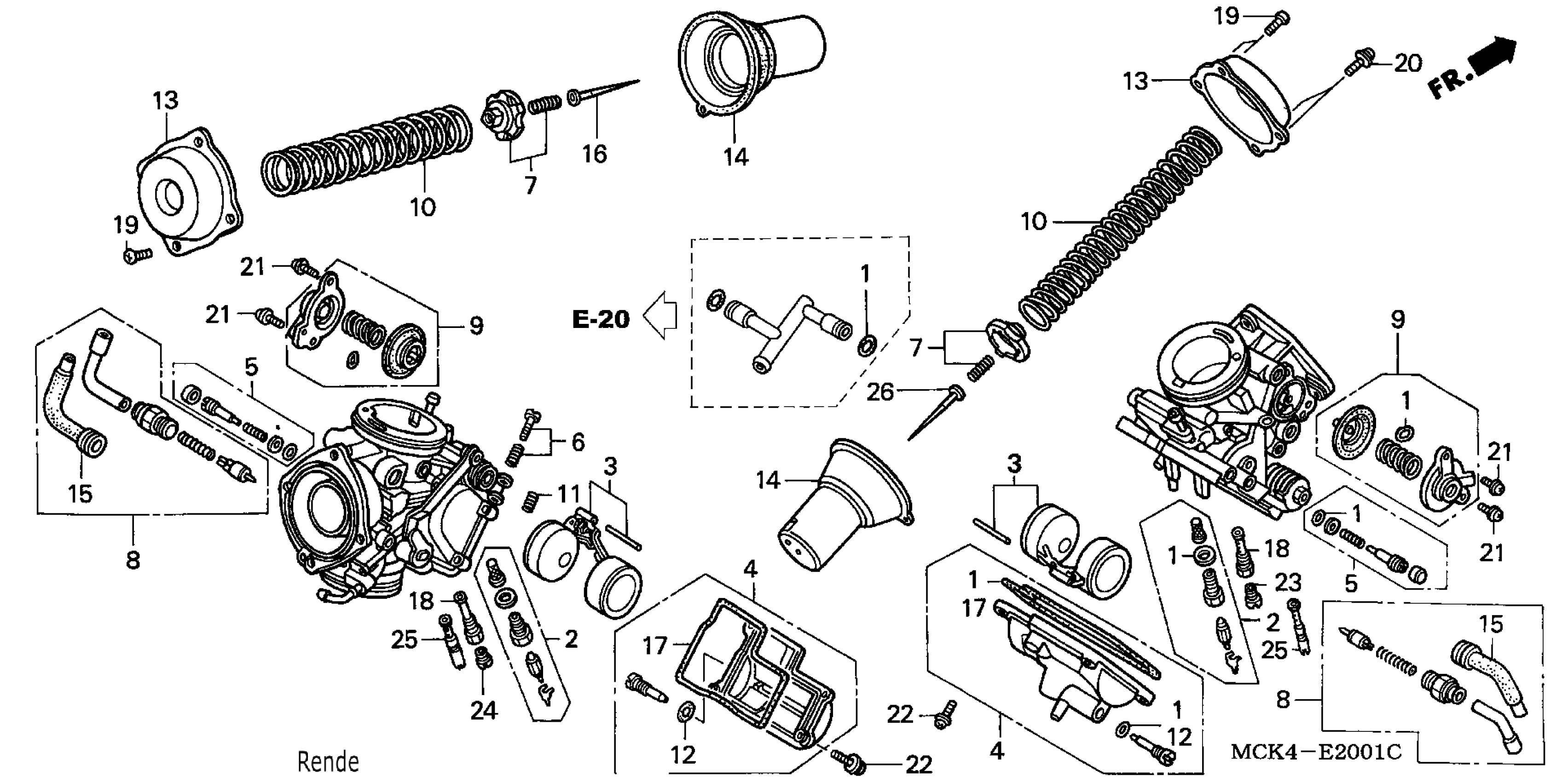

Honda VT1100C2A (05) SHADOW SABRE, USA, VIN# 1HFSC430-5A500001 TO 1HFSC430-5A599999 CARBURETOR (COMPONENTS) Diagram

#

Description
Price

1

GASKET SET

16010-MAH-750

$40.82

2

VALVE SET, FLOAT

16011-MAH-000

$70.23

3

FLOAT SET

16013-MAH-000

$49.54

4

CHAMBER SET, FLOAT

16015-MAH-750

$131.75

5

SCREW SET

16016-MAH-670

$26.48

6

SCREW SET C

16029-MB0-671

Unavailable

7

PLATE SET, VALVE

16037-MAK-000

$17.18

8

VALVE SET, STARTER

16046-MZ6-730

$62.40

9

VALVE SET, AIR CUT

16048-MCK-A51

$94.77

10

SPRING, COMPRESSION COIL

16050-MCK-A01

$12.43

11

SPRING

16052-ME9-672

$5.67

12

O-RING (1.3X4.3)

16075-GHB-640

$2.92

13

TOP

16107-MM8-004

Unavailable

14

PISTON, VACUUM

16111-MBH-670

$145.15

15

CAP, CABLE SEALING

16118-ME9-671

$14.18

16

NEEDLE, JET

16131-MCK-A01

Unavailable

17

GASKET, FLOAT CHAMBER

16163-MAH-750

$35.12

18

HOLDER, NEEDLE JET

16165-MCK-G01

$37.43

19

SCREW, PAN (4X10)

93500-04010-0A

$1.49

19

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

20

SCREW, PAN (4X10)

93500-04010-0A

$1.49

20

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

21

SCREW-WASHER (4X12)

93892-04012-08

$1.49

21

SCREW-WASHER (4X12) This part replaces 93892-04012-18.

93892-04012-08

$1.49

22

SCREW-WASHER (4X16)

93892-04016-00

$1.49

22

SCREW-WASHER (4X16) This part replaces 93892-04016-10.

93892-04016-00

$1.49

23

JET, MAIN (#175)

99101-MCK-1750

Unavailable

24

JET, MAIN (#180)

99101-MCK-1800

$11.06

25

JET, SLOW (#42) This part replaces 99103-MT2-0420.

99103-MV9-0420

$20.89

26

NEEDLE, JET

16132-MCK-A01

$28.42
