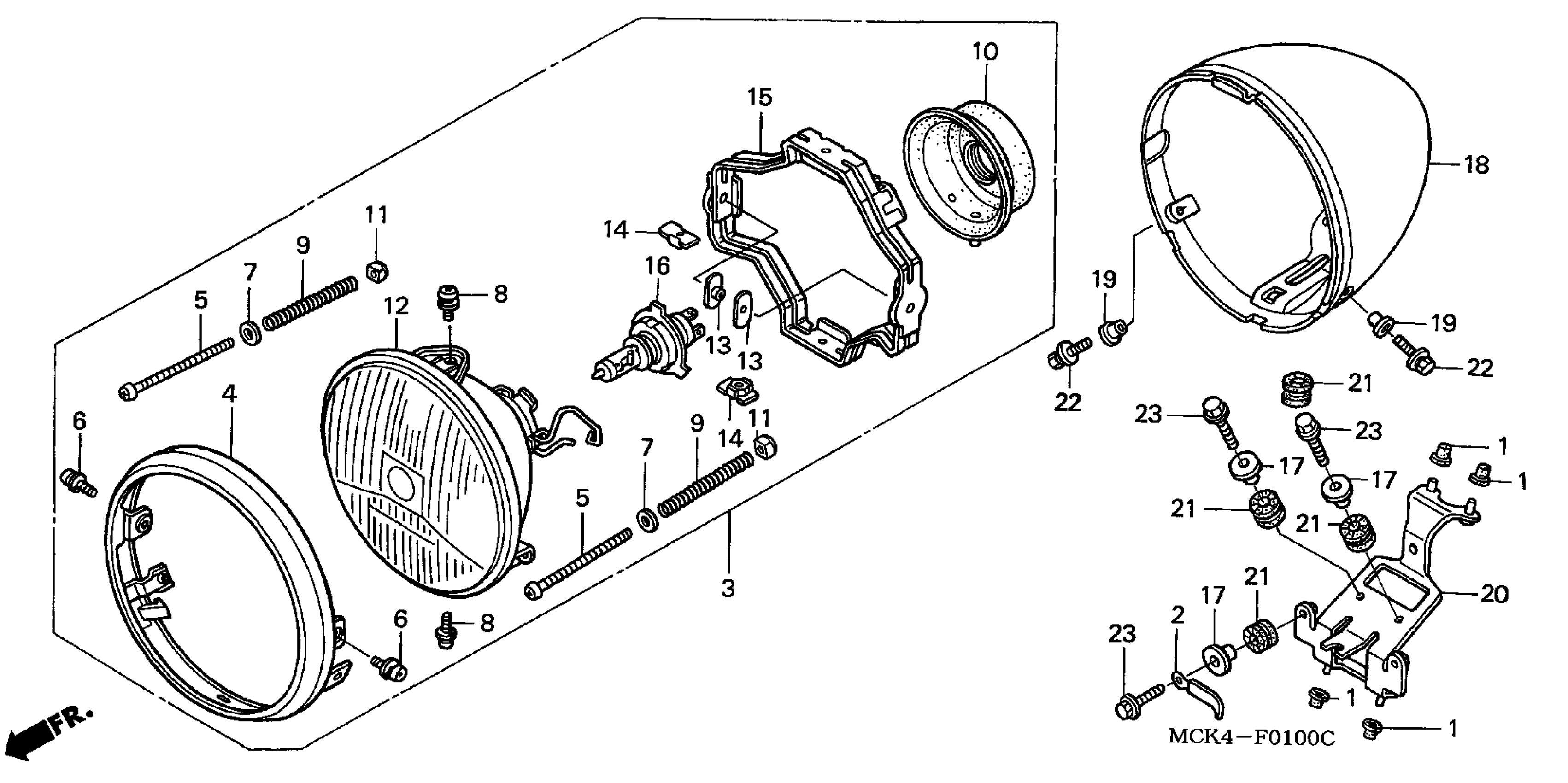

Honda VT1100C2A (02) SHADOW SABRE, USA, VIN# 1HFSC430-2A200001 TO 1HFSC430-2A299999 HEADLIGHT Diagram

#

Description
Price

1

RUBBER, RADIATOR MOUNTING

19113-MB1-870

$3.31

2

CLIP, SUB-WIRE

32901-MA1-000

$4.81

3

HEADLIGHT ASSY. (12V 60/55W)

33100-MCK-A01

Unavailable

4

RIM, HEADLIGHT

33101-MAH-671

$55.43

5

SCREW, BEAM ADJUSTING

33103-MAH-671

$4.74

6

SCREW-WASHER

33104-MAH-671

$3.83

7

WASHER

33105-MAH-671

$1.69

8

SCREW-WASHER

33106-MAH-671

Unavailable

9

SPRING, BEAM ADJUSTING

33107-MK7-671

$3.87

10

COVER, RUBBER

33112-MM9-013

$9.90

11

NUT, BEAM ADJUSTING

33118-438-841

$2.06

12

HEADLIGHT UNIT

33120-MCK-A01

Unavailable

13

NUT, SPECIAL

33128-MAH-671

$3.50

14

NUT

33129-MAH-671

Unavailable

15

RING, HEADLIGHT

33153-MBC-003

Unavailable

16

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601.

34901-MC7-602

$34.13

16

BULB, HEADLIGHT (12V 60/55W) (STANLEY) This part replaces 34901-MC7-601AH.

34901-MC7-602

$34.13

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

Unavailable

17

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

Unavailable

18

CASE, HEADLIGHT

61301-MBA-000

$124.37

19

COLLAR, HEADLIGHT SETTING

61304-292-000

$3.31

20

STAY, HEADLIGHT

61311-MBA-000

$46.81

21

RUBBER, TAILLIGHT

80112-MA6-000

$3.74

22

BOLT-WASHER (5X16)

93412-05016-00

$0.99

23

BOLT, FLANGE (6X25)

95701-06025-00

$1.79
