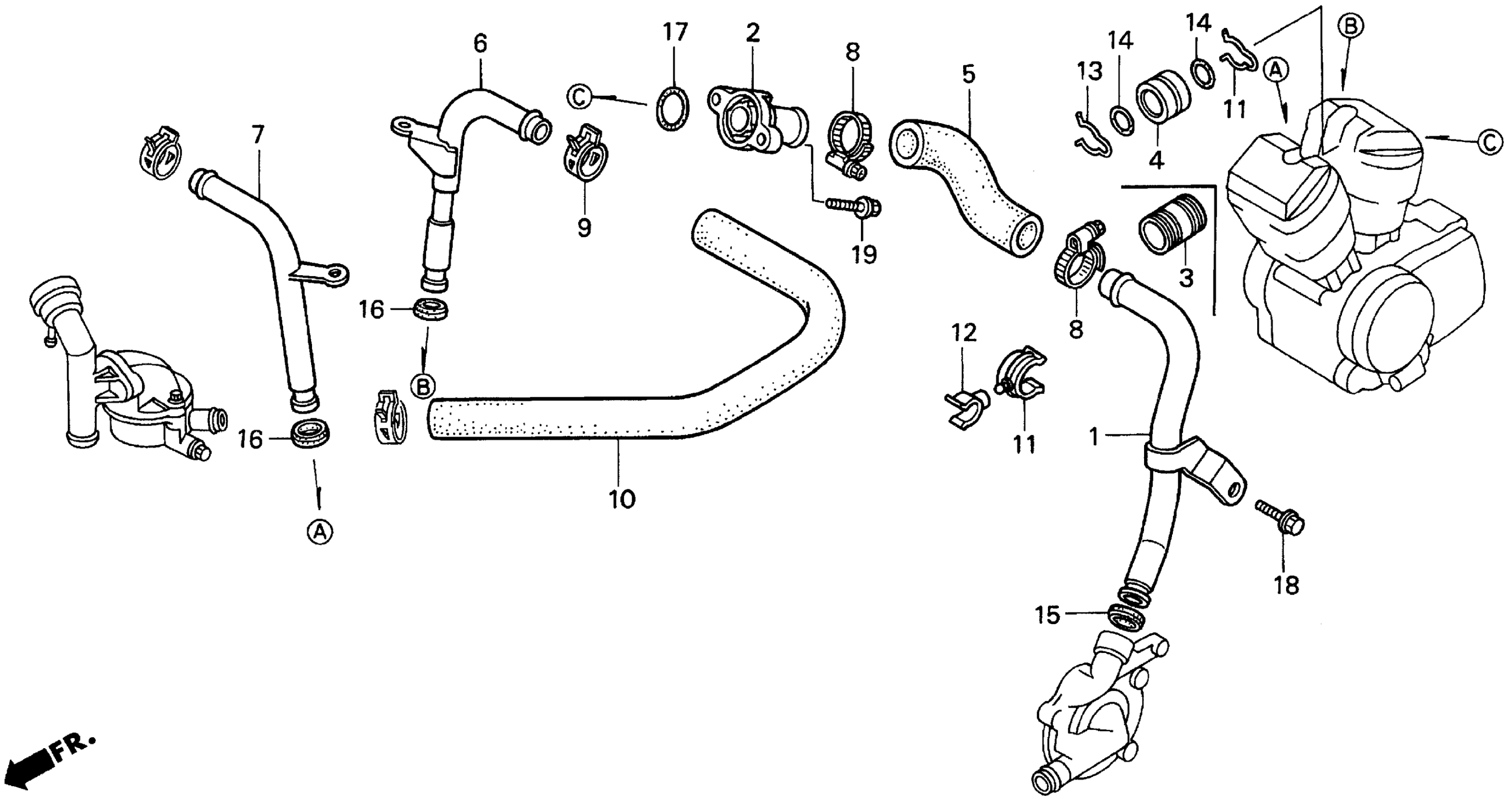

Honda VT1100C2A (02) SHADOW SABRE, 97, VIN# 1HFSC323-VA240001 VT1100C2WATER PIPE Diagram

PIPE, INLET WATER (NOT AVAILABLE)

19501-MAH-000

Unavailable

JOINT, WATER HOSE (SOURCE: VINTAGE PARTS INC.)

19504-MAH-000

Unavailable

JOINT, WATER

19505-MR1-000

Unavailable

HOSE, IN. WATER (NOT AVAILABLE)

19506-MAH-000

Unavailable

PIPE A, OUTLET WATER

19511-MM8-000

$33.15

PIPE A, OUTLET WATER This part replaces 19511-MAH-000.

19511-MM8-000

$33.15

PIPE A, OUTLET WATER

19511-MM8-000

$33.15

CLAMP, WATER HOSE

19516-MB6-000

$14.41

CLIP, WATER HOSE

19517-KM9-000

$8.28

HOSE B, OUTLET WATER

19522-MM8-000

$30.89

CLIP, RING (18MM)

90601-MR1-000

$3.84

O-RING (18X2.6) (ARAI)

91306-KK4-003

$2.92

SEAL, WATER PIPE (22.5MM)

91315-MAH-003

$7.66

SEAL, WATER PIPE

91315-ME9-003

$4.53

O-RING

91356-169-003

$2.92

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

BOLT, FLANGE (6X22)

95701-06022-00

$1.80
