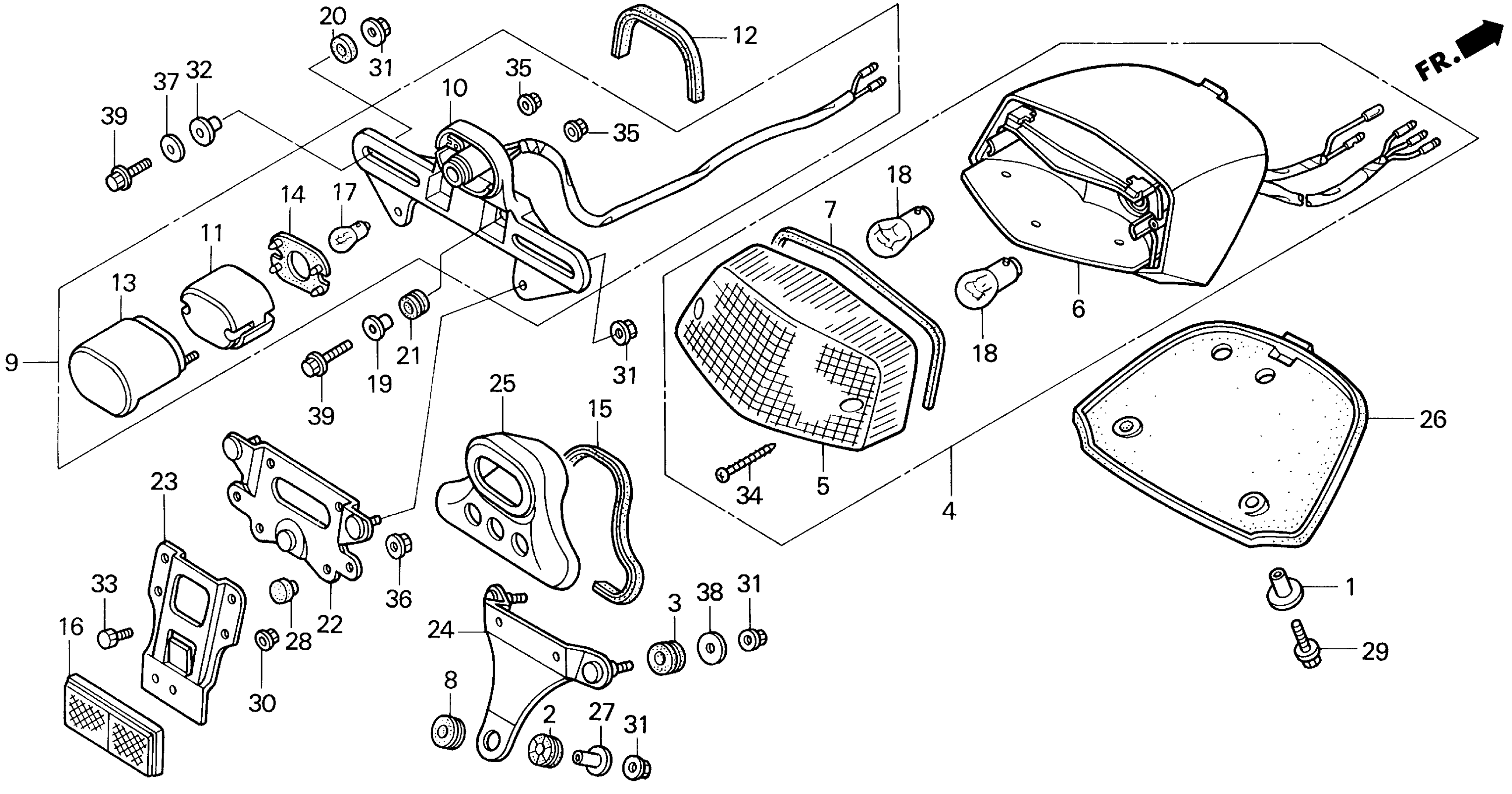

Honda VT1100C2A (02) SHADOW SABRE, 97, VIN# 1HFSC323-VA240001 VT1100C2TAILLIGHT Diagram

#

Description
Price

1

COLLAR, AIR CLEANER SETTING

17216-HA7-670

$6.16

2

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.80

3

GROMMET, RADIATOR

19053-MB2-000

$4.52

4

TAILLIGHT ASSY. (NOT AVAILABLE)

33701-MAH-671

Unavailable

5

LENS, TAILLIGHT

33702-MR1-671

$64.00

6

BASE, TAILLIGHT (NOT AVAILABLE)

33704-MAH-671

Unavailable

7

GASKET, TAILLIGHT

33709-MAH-671

Unavailable

8

RUBBER, TAILLIGHT MOUNTING

33715-965-000

$5.10

9

LIGHT ASSY., LICENSE (NOT AVAILABLE)

33720-MAH-671

Unavailable

10

BASE, LICENSE

33721-MAH-671

Unavailable

11

LENS, LICENSE LIGHT

33722-MB1-013

$19.68

12

RUBBER A, LICENSE LIGHT (NOT AVAILABLE)

33725-MAH-000

Unavailable

13

COVER

33727-MB1-003

Unavailable

14

GASKET, LENS

33729-MB1-003

$6.30

15

RUBBER B, LICENSE LIGHT (NOT AVAILABLE)

33730-MAH-000

$10.59

16

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

17

BULB (12V8W) This part replaces 34616-568-671.

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34902-500-003.

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34908-272-000.

34909-505-003

$2.92

17

BULB (12V8W)

34909-505-003

$2.92

17

BULB (12V8W) This part replaces 34909-505-610.

34909-505-003

$2.92

18

BULB (12V 23/8W) (STANLEY)

34905-425-671

$6.67

19

COLLAR, ELECTRIC PLATE

50302-KG1-000

Unavailable

20

RUBBER, HANDLE COVER (UPPER)

53210-HA0-000

$2.64

21

GROMMET, SEAT COWL

77219-MJ6-000

$3.36

22

PLATE, RR. LICENSE (NOT AVAILABLE)

80102-MAH-000

Unavailable

23

PLATE, RR. REFLECTOR (NOT AVAILABLE) This part replaces 80103-MAH-000.

80103-MAH-A40

Unavailable

24

BRACKET, LICENSE LIGHT (SOURCE: VINTAGE PARTS INC.)

80120-MAH-A40

$65.95

24

BRACKET, LICENSE LIGHT (SOURCE: VINTAGE PARTS INC.) This part replaces 80120-MAH-000.

80120-MAH-A40

$65.95

25

COVER, LICENSE LIGHT (NOT AVAILABLE)

80121-MAH-000

Unavailable

26

RUBBER, TAILLIGHT CUSHION (SOURCE: VINTAGE PARTS INC.)

80125-MAH-000

$29.23

27

COLLAR, BOX MOUNTING (NOT AVAILABLE)

81257-GT8-600

Unavailable

28

RUBBER, NUMBER PLATE BRACKET CUSHION

84702-MF2-670

$4.57

29

BOLT, FLANGE (5X25)

90112-GG2-900

$4.62

30

NUT, FLANGE (5MM) (FUSE RASHI)

90301-MG8-000

$4.66

31

NUT, FLANGE (6MM)

90303-MR1-000

$1.49

32

COLLAR, DISTANCE (NOT AVAILABLE)

91551-723-650

Unavailable

33

BOLT, HEX. (6X10) (NOT AVAILABLE)

92101-06010-0G

Unavailable

34

SCREW, TAPPING (4X35)

93901-34880

$1.49

35

NUT, FLANGE (4MM)

94050-04080

$1.49

36

NUT, FLANGE (6MM)

94050-06080

$1.49

37

WASHER, PLAIN (6MM)

94103-06000

$1.49

38

WASHER, PLAIN (6MM)

94103-06800

$1.49

39

BOLT, FLANGE (6X20)

95701-06020-00

$1.55
