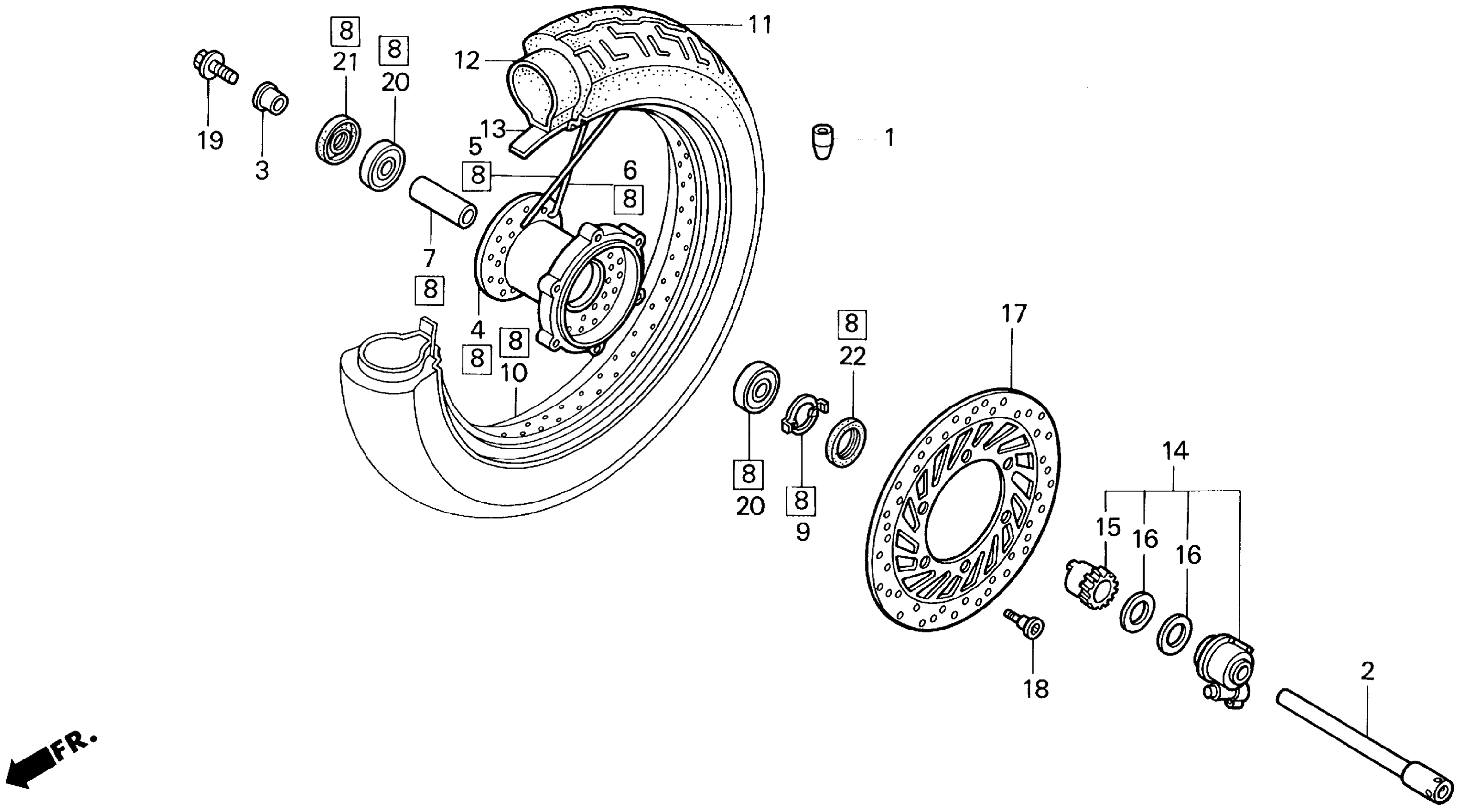

Honda VT1100C2A (02) SHADOW SABRE, 97, VIN# 1HFSC323-VA240001 VT1100C2FRONT WHEEL Diagram

#

Description
Price

1

WEIGHT, BALANCE (20G) This part replaces 42707-MR6-670.

42705-MEG-003

$8.08

1

WEIGHT, BALANCE (15G) This part replaces 42708-MR1-670.

42704-MEG-003

$8.08

2

AXLE, FR. WHEEL

44301-MAH-671

$61.88

3

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$19.15

4

HUB, FR. WHEEL (SOURCE: VINTAGE PARTS INC.)

44601-MAH-000

Unavailable

5

SPOKE SET, FR. (INNER)

44604-MAH-405

Unavailable

6

SPOKE SET, FR. (OUTER)

44605-MAH-405

Unavailable

7

COLLAR, FR. AXLE DISTANCE

44620-MAH-000

$20.36

8

WHEEL SUB-ASSY., FR. (NOT AVAILABLE)

44650-MAH-305

Unavailable

9

RETAINER, GEAR BOX

44680-ML7-000

$5.08

10

RIM, FR. WHEEL (NOT AVAILABLE)

44701-MAH-003

Unavailable

11

TIRE, FR. (120/90-18) (65H) (BLACK WALL) (DUNLOP) (NOT AVAILABLE)

44711-MAH-672

Unavailable

12

TUBE, TIRE (120/90-18) (DUNLOP) (NOT AVAILABLE)

44712-MAH-671

Unavailable

13

FLAP, TIRE (30-18) (DUNLOP) (NOT AVAILABLE)

44713-MAH-671

Unavailable

14

BOX ASSY., SPEEDOMETER GEAR

44800-MM8-003

$98.63

15

GEAR, SPEEDOMETER

44806-MM8-003

$32.36

16

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$2.99

17

DISK, FR. BRAKE

45251-MS9-750

Unavailable

18

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

19

BOLT, FR. AXLE

90305-ML7-000

$10.50

20

BEARING, RADIAL BALL (6004UU)

91054-MAM-003

$32.23

20

BEARING, RADIAL BALL (6004UU) This part replaces 91054-MN8-741.

91054-MAM-003

$32.23

21

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$9.16

21

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$9.16

21

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$9.16

22

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.66

22

DUST SEAL (45X55X5) (ARAI) This part replaces 91258-ML7-004.

91258-ML7-003

$8.66
