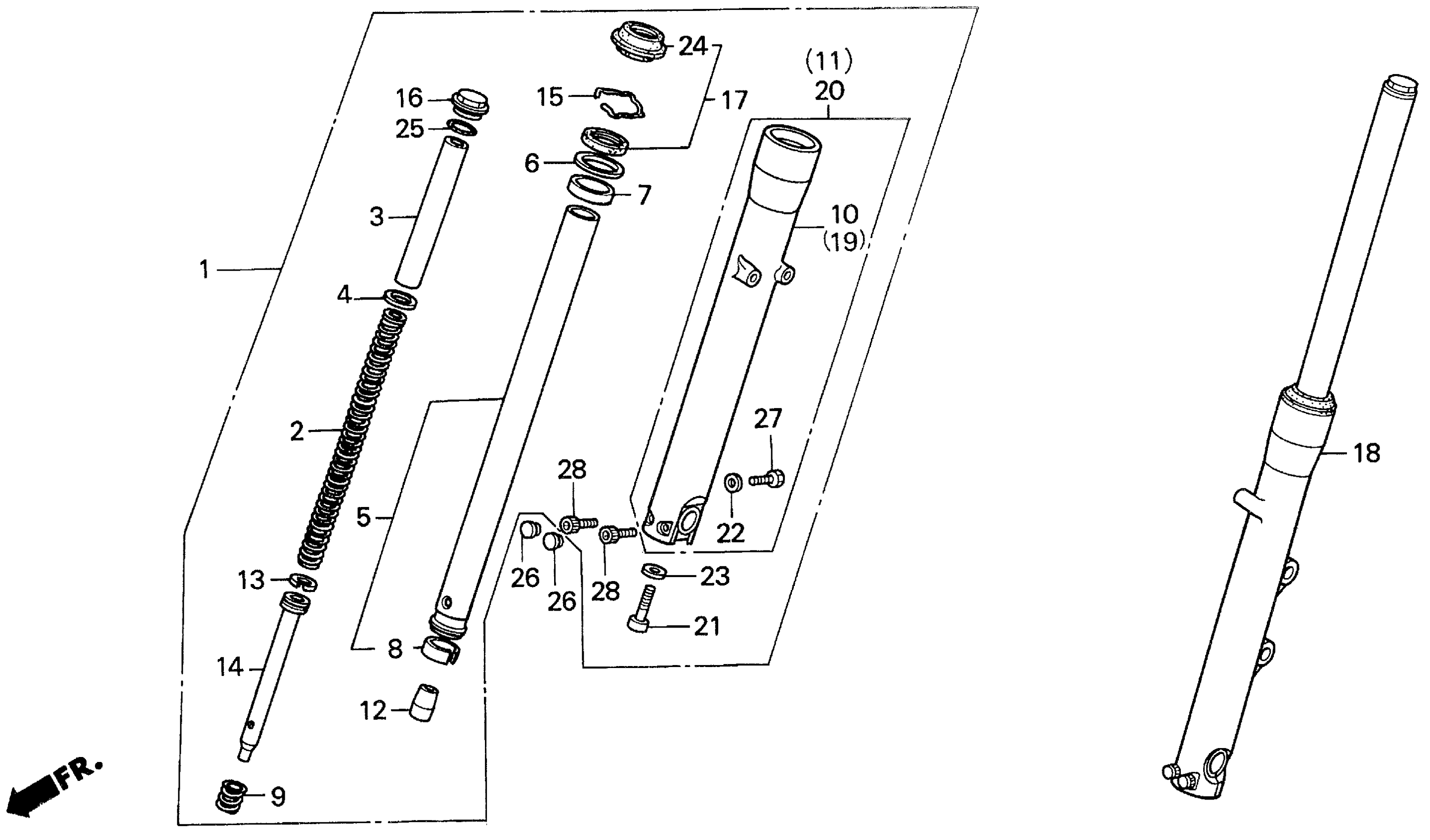

Honda VT1100C2A (02) SHADOW SABRE, 97, VIN# 1HFSC323-VA240001 VT1100C2FRONT FORK Diagram

#

Description
Price

1

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-MAH-A01

Unavailable

2

SPRING, FR. FORK (SHOWA) (NOT AVAILABLE)

51401-MAH-671

Unavailable

3

COLLAR, SPRING (SHOWA)

51402-MM8-881

Unavailable

4

PLATE, SPRING JOINT

51404-MB4-003

$4.94

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-MAH-A01

Unavailable

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

7

BUSH, GUIDE (SHOWA)

51414-KCR-003

$14.02

8

BUSH, SLIDER (SHOWA)

51415-KCR-003

$12.27

9

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.89

10

CASE, R. (LOWER) (NOT AVAILABLE)

51420-MAH-A01

Unavailable

12

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

13

RING, PISTON (SHOWA)

51437-MN5-003

$8.53

14

PIPE, SEAT (SHOWA)

51440-MAH-671

Unavailable

15

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

16

BOLT, FR. FORK

51455-MG9-771

$45.36

17

SEAL SET, FR. FORK

51490-MN8-305

$35.20

18

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-MAH-A01

Unavailable

19

CASE, L. (LOWER) (NOT AVAILABLE)

51520-MAH-A01

Unavailable

21

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

23

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

24

DUST SEAL

91254-MM8-003

$17.88

25

O-RING

91356-MB4-003

$3.54

26

CAP, SOCKET BOLT (8MM)

91455-MB0-010

$3.77

28

BOLT, SOCKET (8X35)

96600-08035-10

$3.33
