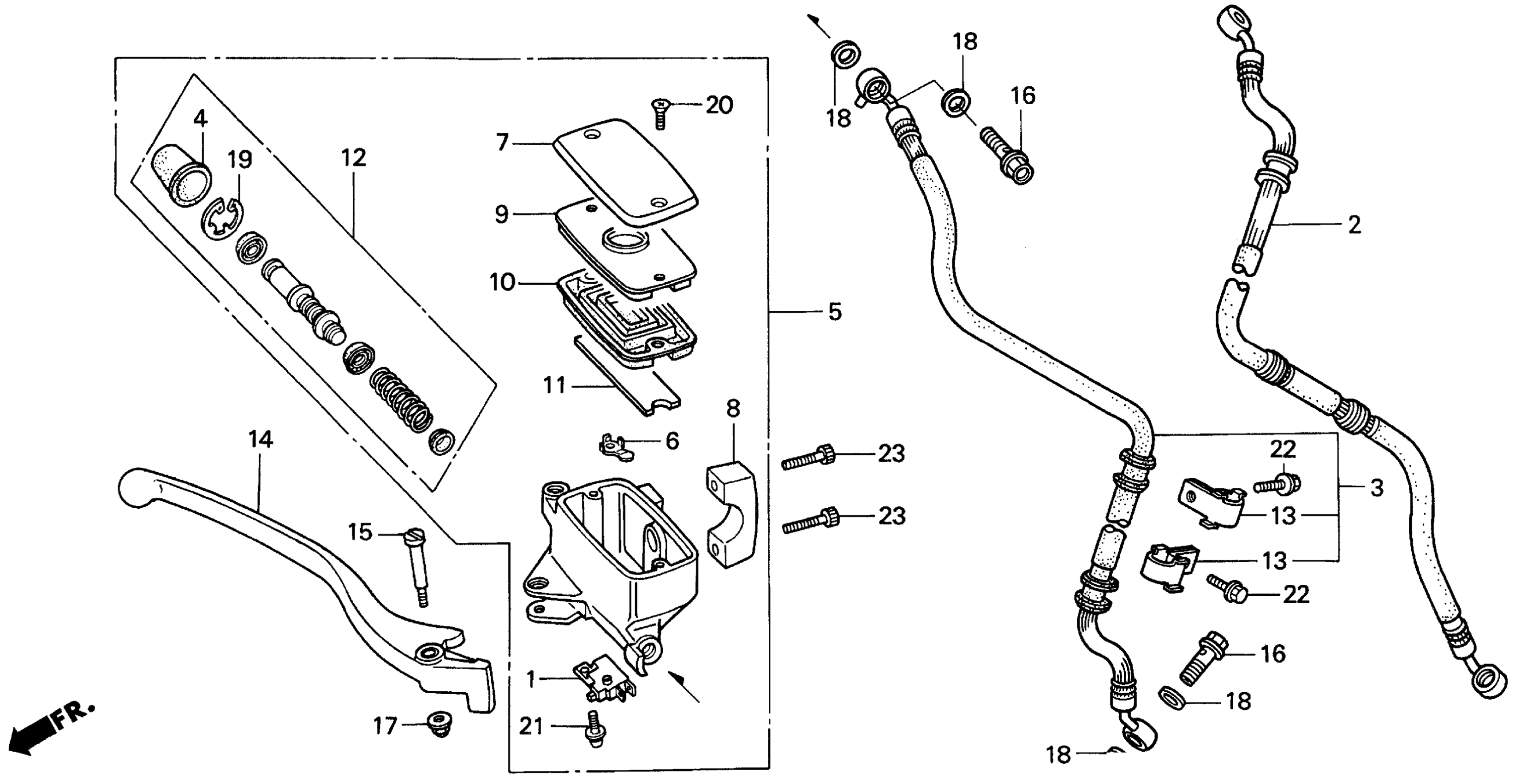

Honda VT1100C2A (02) SHADOW SABRE, 97, VIN# 1HFSC323-VA240001 VT1100C2FR. BRAKE MASTER CYL. 95-97 Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MM5-600

$19.29

3

HOSE, FR. BRAKE (NOT AVAILABLE)

45126-MAH-671

Unavailable

4

BOOT

45504-410-003

$10.93

4

BOOT This part replaces 45504-HM4-830.

45504-410-003

$10.93

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN)

45510-MAH-305

Unavailable

5

MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) This part replaces 45510-MAH-A00.

45510-MAH-305

Unavailable

6

PROTECTOR (SOURCE: VINTAGE PARTS INC.)

45512-GW3-980

Unavailable

7

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MR1-006.

45513-MR1-016

$27.48

7

CAP, MASTER CYLINDER (NISSIN)

45513-MR1-016

$27.48

7

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MZ0-890.

45513-MR1-016

$27.48

8

HOLDER, MASTER CYLINDER (NISSIN)

45517-MR1-671

$24.47

8

HOLDER, MASTER CYLINDER (NISSIN) This part replaces 45517-MZ0-760.

45517-MR1-671

$24.47

9

PLATE, DIAPHRAGM

45518-MM5-006

$9.57

9

PLATE, DIAPHRAGM This part replaces 45518-MZ0-760.

45518-MM5-006

$9.57

10

DIAPHRAGM

45520-MM5-006

$13.57

10

DIAPHRAGM This part replaces 45520-MZ0-760.

45520-MM5-006

$13.57

11

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.18

11

FLOAT, FR. MASTER CYLINDER (NISSIN) This part replaces 45523-MZ0-890.

45523-MN5-006

$4.18

12

MASTER CYLINDER SET

45530-471-831

Unavailable

12

MASTER CYLINDER SET This part replaces 45530-HM4-830.

45530-471-831

Unavailable

13

CLAMP, BRAKE HOSE

52115-ML8-670

$4.94

14

LEVER, R. HANDLE (COO)

53175-MFR-305

$16.84

14

LEVER, R. HANDLE (COO) This part replaces 53175-ML5-006.

53175-MFR-305

$16.84

14

LEVER, R. HANDLE (COO) This part replaces 53175-MAH-A00.

53175-MFR-305

$16.84

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$8.46

15

BOLT, HANDLE LEVER PIVOT This part replaces 90114-MZ0-760.

90114-MA5-671

$8.46

16

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$6.82

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

17

NUT, CAP (6MM)

90201-415-000

$1.96

18

WASHER, OIL BOLT

90545-300-000

$3.72

19

CIRCLIP

90651-MA5-671

$2.38

19

CIRCLIP This part replaces 90651-HM4-830.

90651-MA5-671

$2.38

20

SCREW, FLAT (4X12)

93600-04012-1A

$0.57

21

SCREW-WASHER (4X12)

93893-04012-07

$1.22

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

22

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

23

BOLT, SOCKET (6X22)

96600-06022-10

$1.91

23

BOLT, SOCKET (6X22) This part replaces 96700-06022-10.

96600-06022-10

$1.91
