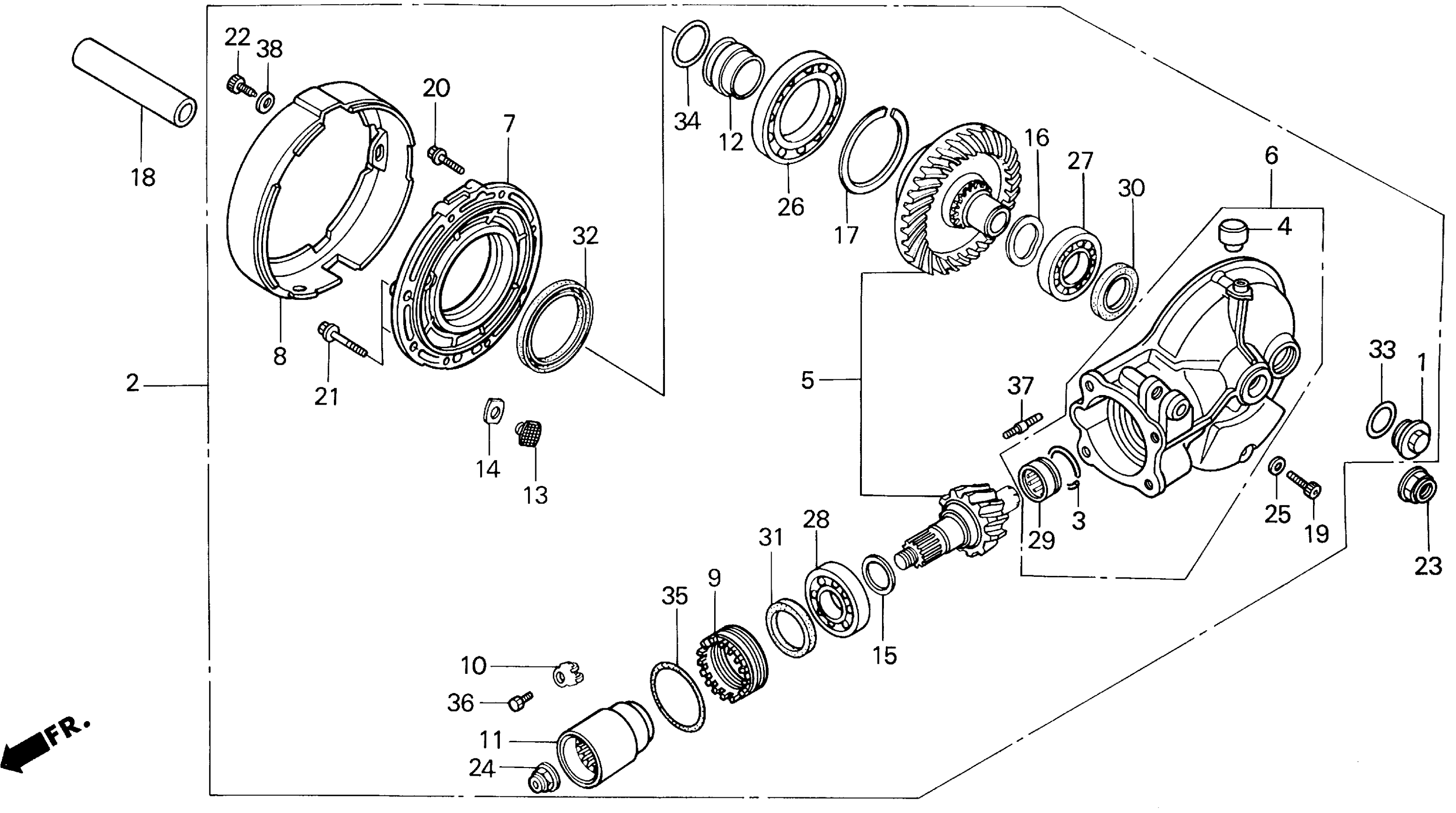

Honda VT1100C2A (02) SHADOW SABRE, 97, VIN# 1HFSC323-VA240001 FINAL DRIVEN GEAR Diagram

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

CAP, VALVE ADJ.

12361-300-000

Unavailable

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

GEAR ASSY,FINAL This part replaces 41300-MAH-000.

41300-MAH-010

Unavailable

RING, STOPPER

41305-MB4-770

$5.62

CAP, BREATHER This part replaces 41306-MB0-010.

41306-MB0-020

$9.24

GEAR SET, FINAL

41310-MM8-305

$509.26

CASE SET, FINAL

41311-MM8-305

Unavailable

COVER, GEAR CASE This part replaces 41321-ME5-770.

41321-ME5-771

$148.38

COVER, GEAR CASE

41321-ME5-771

$148.38

PLATE, DUST GUARD

41324-MAH-000

$114.23

RETAINER, BEARING

41331-ME9-010

$132.46

LOCK A, BEARING ADJUSTING (SINGLE TAB)

41332-415-000

$2.51

LOCK B, BEARING ADJUSTING (DOUBLE TABS)

41333-415-000

$2.51

JOINT, PINION

41410-ME9-770

$146.31

HOLDER, O-RING

41433-MB0-010

$12.90

PIN, RING GEAR STOPPER

41436-MB0-310

$31.90

SHIM A, STOPPER PIN (0.10)

41437-MB0-310

$5.45

SHIM B, STOPPER PIN (0.15)

41438-MB0-310

$5.14

SHIM A, PINION GEAR (1.82)

41450-MG8-000

$7.46

SHIM B, PINION GEAR (1.88)

41451-MG8-000

$7.46

SHIM C, PINION GEAR (1.94)

41452-MG8-000

$7.11

SHIM D, PINION GEAR (2.00)

41453-MG8-000

$7.11

SHIM E, PINION GEAR (2.06)

41454-MG8-000

$7.11

SHIM F, PINION GEAR (2.12)

41455-MG8-000

$7.11

SHIM G, PINION GEAR (2.18)

41456-MG8-000

$7.11

WASHER, SPECIAL (35X40)

41510-MB0-003

$12.26

SPACER A, RING GEAR (1.82)

41530-MB0-000

$16.64

SPACER B, RING GEAR (1.88)

41531-MB0-000

$16.64

SPACER C, RING GEAR (1.94)

41532-MB0-000

$16.64

SPACER D, RING GEAR (2.00)

41533-MB0-000

$16.64

SPACER E, RING GEAR (2.06)

41534-MB0-000

$16.64

SPACER F, RING GEAR (2.12)

41535-MB0-000

$16.64

SPACER G, RING GEAR (2.18)

41536-MB0-000

$16.64

SPACER H, RING GEAR (2.24)

41537-MB0-000

$16.64

SPACER I, RING GEAR (2.30)

41538-MB0-000

$16.64

COLLAR B, RR. DISTANCE

42625-MAH-000

$36.84

BOLT, SOCKET (8X11)

90109-ME5-770

$5.73

BOLT, FLANGE (8X27)

90133-MB0-000

$8.11

BOLT, FLANGE (10X35)

90134-HA0-000

$7.88

BOLT, HEX. (6X16)

90170-MB0-000

$2.54

NUT, U (18MM)

90305-MB4-003

$12.52

NUT, HEX. (16MM)

90381-MT3-000

$7.95

GASKET (8MM)

90471-580-000

$2.92

BEARING, RADIAL BALL (16012C3)

91051-MB0-005

$120.87

BEARING, RADIAL BALL (16012C3) This part replaces 91051-MG8-005.

91051-MB0-005

$120.87

BEARING, RADIAL BALL (57/34C3) This part replaces 91052-MG8-005.

91052-MB0-003

$46.23

BEARING, RADIAL BALL (6305)

91061-MB0-005

$125.16

BEARING, RADIAL BALL (6305) This part replaces 91061-MG8-005.

91061-MB0-005

$125.16

BEARING, NEEDLE (19/18) (KOYO) This part replaces 91062-MB4-773.

91062-MG8-005

$46.33

BEARING, NEEDLE (19/18) (KOYO)

91062-MG8-005

$46.33

OIL SEAL (34X50X7) (ARAI)

91261-MB0-003

$12.13

OIL SEAL (34X50X7) (ARAI) This part replaces 91261-MB0-005.

91261-MB0-003

$12.13

OIL SEAL (39X51X7) (NOK) This part replaces 91262-ME9-003.

91262-ME9-005

$15.51

OIL SEAL (39X51X7) (NOK)

91262-ME9-005

$15.51

OIL SEAL (60X80X8) (ARAI)

91265-MB0-003

$15.95

O-RING (30.8MM)

91302-001-020

$3.75

O-RING (35.2X2.4) (NOK)

91356-MB0-005

$3.35

O-RING (58.5X3.5)

91359-MB0-000

$5.25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

BOLT, STUD (10X32)

92900-10032-0E

$3.67

WASHER, PLAIN (6MM)

94101-06800

$1.49
