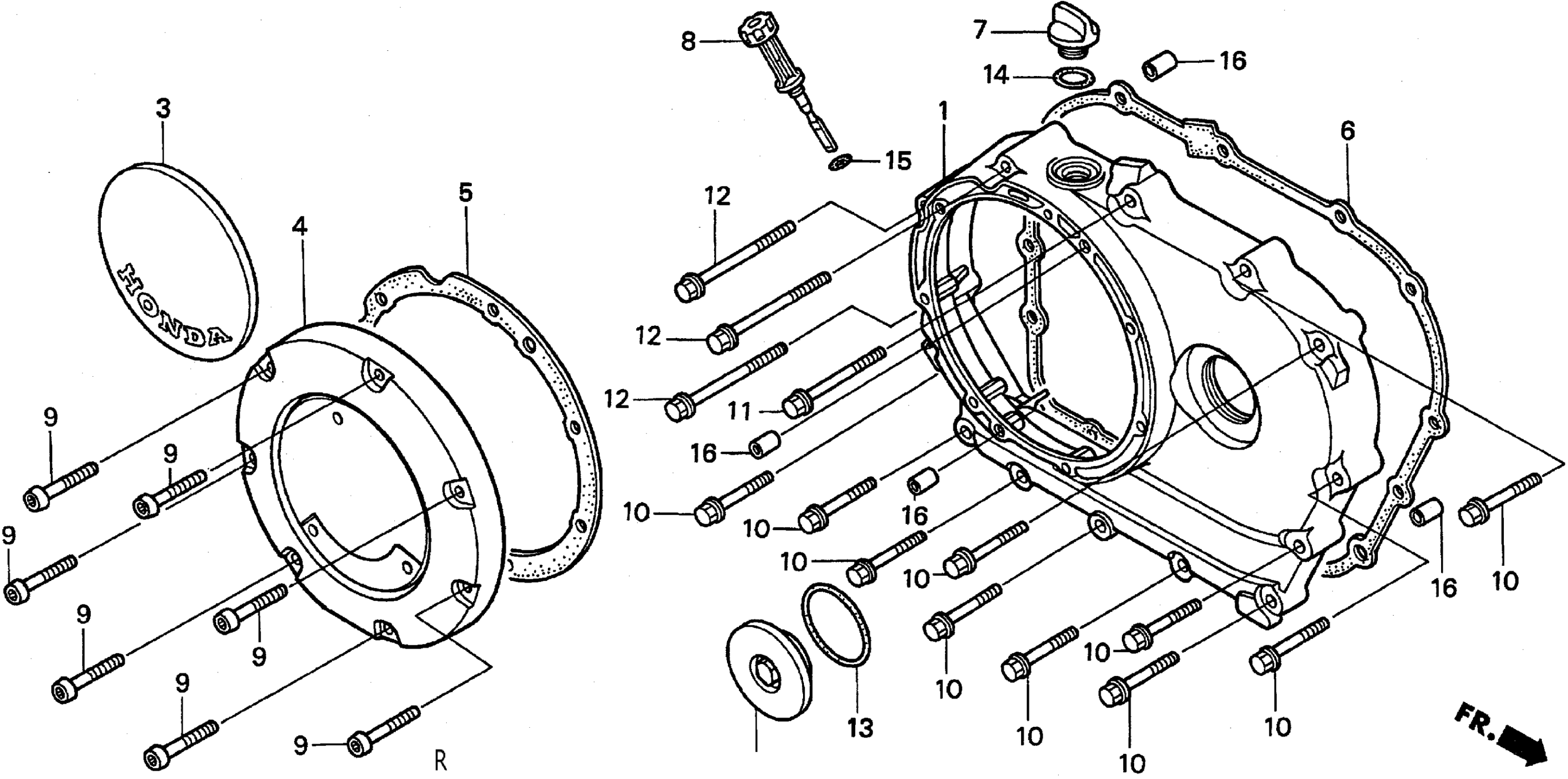

Honda VT1100C22A (02) MOTORCYCLE, 98, VIN# 1HFSC323-WA300001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MAH-000

$421.18

CAP (45MM)

11332-MZ5-000

Unavailable

PLATE, EMBLEM

11335-MAH-A40

$55.75

COVER SET, CLUTCH

11370-MAH-305

$271.49

COVER SET, CLUTCH This part replaces 11371-MAH-000.

11370-MAH-305

$271.49

GASKET, CLUTCH COVER

11372-MAH-000

$13.65

GASKET, R. CRANKCASE COVER

11394-MM8-881

$22.48

CAP, OIL FILLER

15611-KY4-900

$5.05

DIPSTICK, OIL

15650-MAH-000

Unavailable

BOLT, SPECIAL SOCKET (6X30)

90002-MAH-000

Unavailable

BOLT, FLANGE (6X35) (NSHF)

90004-GHB-700

$4.07

BOLT, FLANGE (6X50) (NSHF)

90004-GHB-730

$4.25

BOLT, FLANGE (6X60) (NSHF)

90004-GHB-750

$4.06

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (18X3) (ARAI)

91302-KE8-003

$2.61

O-RING (8.4X2.4)

91316-MJ8-003

$2.61

PIN, DOWEL (8X14)

94301-08140

$2.25
