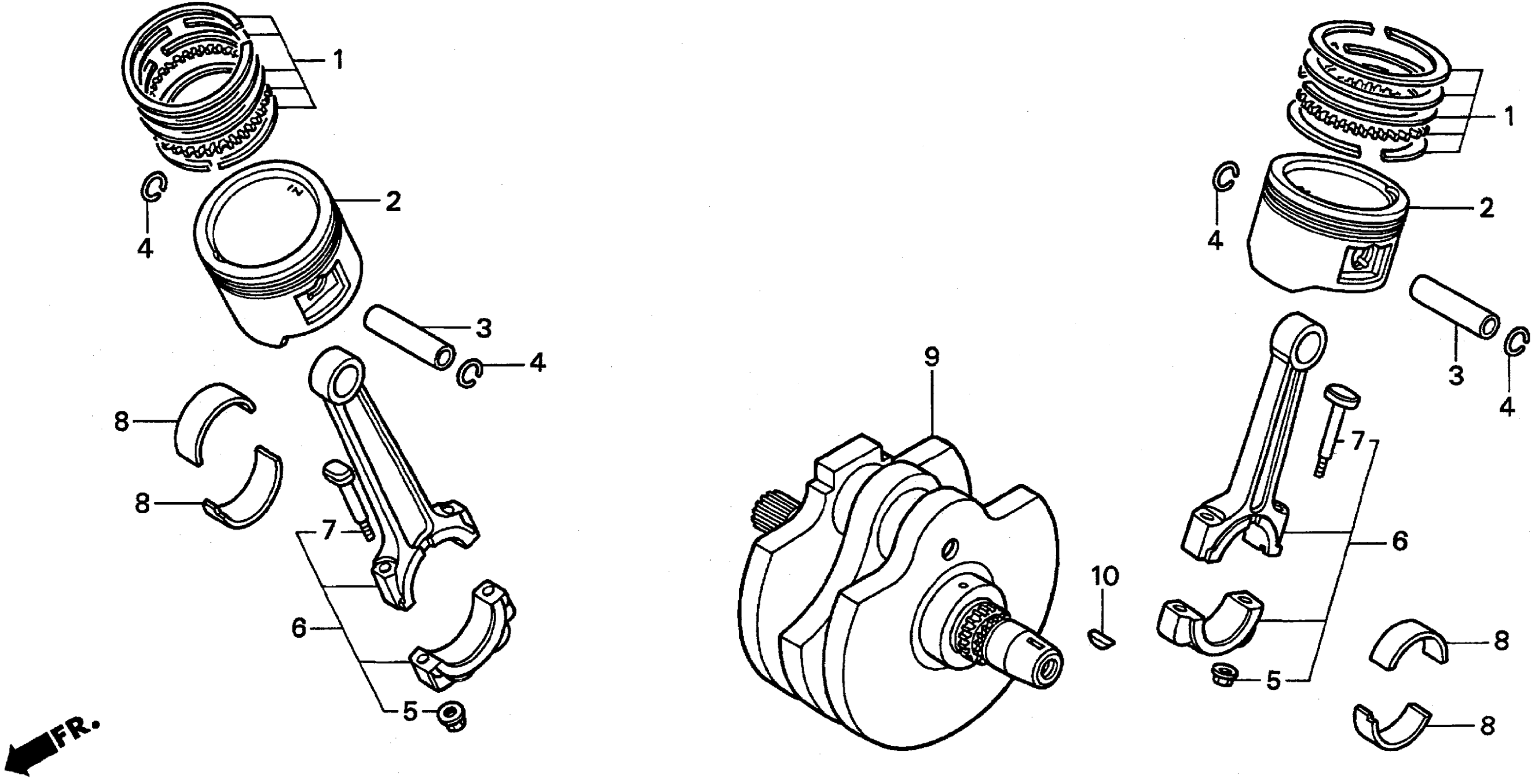

Honda VT1100C22A (02) MOTORCYCLE, 98, VIN# 1HFSC323-WA300001 CRANKSHAFT Diagram

#

Description
Price

1

RING SET, PISTON (STD)

13011-MG8-315

$82.65

1

RING SET, PISTON (OVER SIZE) (0.25) | (Optional).

13012-MG8-315

$94.03

1

RING SET, PISTON (OVER SIZE) (0.50) | (Optional).

13013-MG8-315

Unavailable

2

PISTON (STD)

13101-MAH-000

$153.38

2

PISTON (O.S. 0.25) | (Optional).

13102-MAH-305

$160.48

2

PISTON (O.S. 0.50) | (Optional).

13103-MAH-305

Unavailable

3

PIN, PISTON

13111-MG8-000

$29.44

4

CLIP, PISTON PIN (22MM)

13112-MC7-000

$2.39

5

NUT, CONNECTING ROD

13205-MG8-000

$4.72

6

ROD ASSY. C, CONNECTING This part replaces 13206-MG8-000.

13208-MG8-000

$252.23

6

ROD ASSY. C, CONNECTING This part replaces 13207-MG8-000.

13208-MG8-000

$252.23

6

ROD ASSY. C, CONNECTING

13208-MG8-000

$252.23

6

ROD ASSY. C, CONNECTING This part replaces 13209-MG8-000.

13208-MG8-000

$252.23

6

ROD ASSY. C, CONNECTING This part replaces 13210-MG8-000.

13208-MG8-000

$252.23

7

BOLT, CONNECTING ROD

13213-MG8-000

$8.41

8

BEARING A, CONNECTING ROD (GREEN)

13218-MG8-003

$14.21

8

BEARING B, CONNECTING ROD (YELLOW)

13219-MG8-003

$15.08

8

BEARING C, CONNECTING ROD (PINK)

13220-MG8-003

$15.08

9

CRANKSHAFT (NOT AVAILABLE)

13300-MAH-000

Unavailable

10

KEY, WOODRUFF (25X14)

90741-413-000

$2.56
