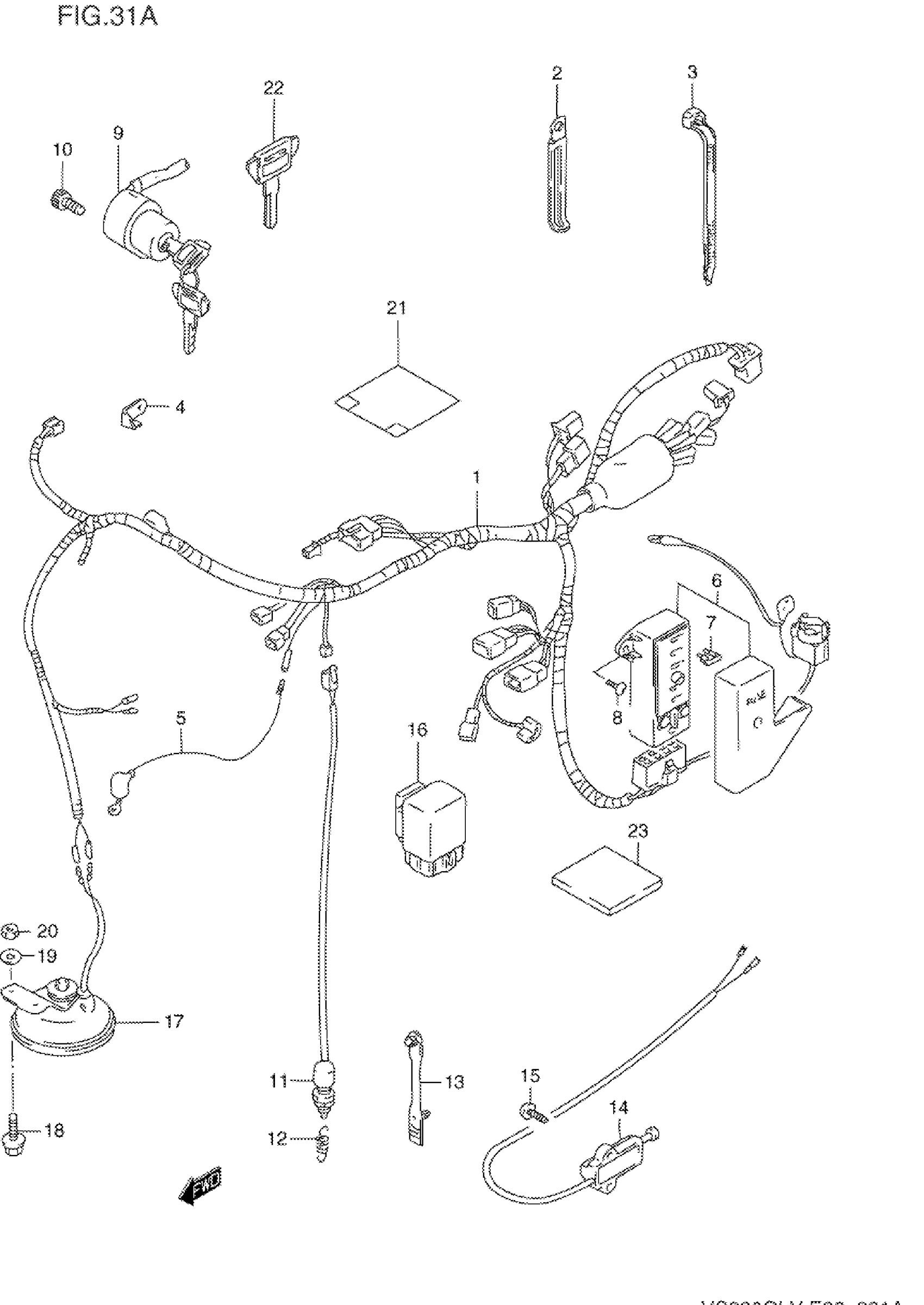

Suzuki VS800GLV (1997) WIRING HARNESS (MODEL T/V) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-39AC0

Unavailable

2

CLAMP (L:60)

09404-06429

$1.83

2

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

3

CLAMP (L:95)

09407-11401

$2.63

3

CLAMP (L:125)

09407-14403

$2.26

3

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

4

PLATE, COUPLER HOLDER

36687-38A00

Unavailable

5

WIRE, WATER TEMP GAUGE

36851-17E00

Unavailable

6

FUSE BOX ASSY | Includes Item(s) 7 - 7

36740-39A00

$101.35

7

FUSE (10A)

09481-10101

$2.07

7

.FUSE (25A) This part replaces 09481-25101.

09481-25103

Unavailable

8

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

9

SWITCH ASSY, IGNITION This part replaces 37110-38A03.

37110-38A04

$100.02

10

BOLT This part replaces 07130-05163.

07130-0516A

$2.41

11

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

12

SPRING

09443-06046

$3.10

13

CLAMP, SIDE STAND

09407-05403

$2.38

14

SWITCH ASSY,SD This part replaces 37840-39A22.

37840-39A23

$109.08

15

SCREW This part replaces 02112-76203.

02112-7620B

$2.78

16

RELAY ASSY, SIDE STAND

38740-24X50

$45.20

17

HORN ASSY

38500-39A00

$137.02

18

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

19

.WASHER This part replaces 08322-01063.

08322-0106B

$2.26

20

NUT This part replaces 08310-00063.

08310-0006A

$1.84

21

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

22

KEY, BLANK TYPE C | OPT

37146-03A00

$9.89

22

KEY, BLANK TYPE D | OPT

37146-03A10

$11.63

22

KEY, BLANK TYPE E | OPT

37146-03A20

$12.10

22

KEY, BLANK TYPE F | OPT

37146-03A30

$10.28

23

PROTECTOR

36920-02200

$3.37
