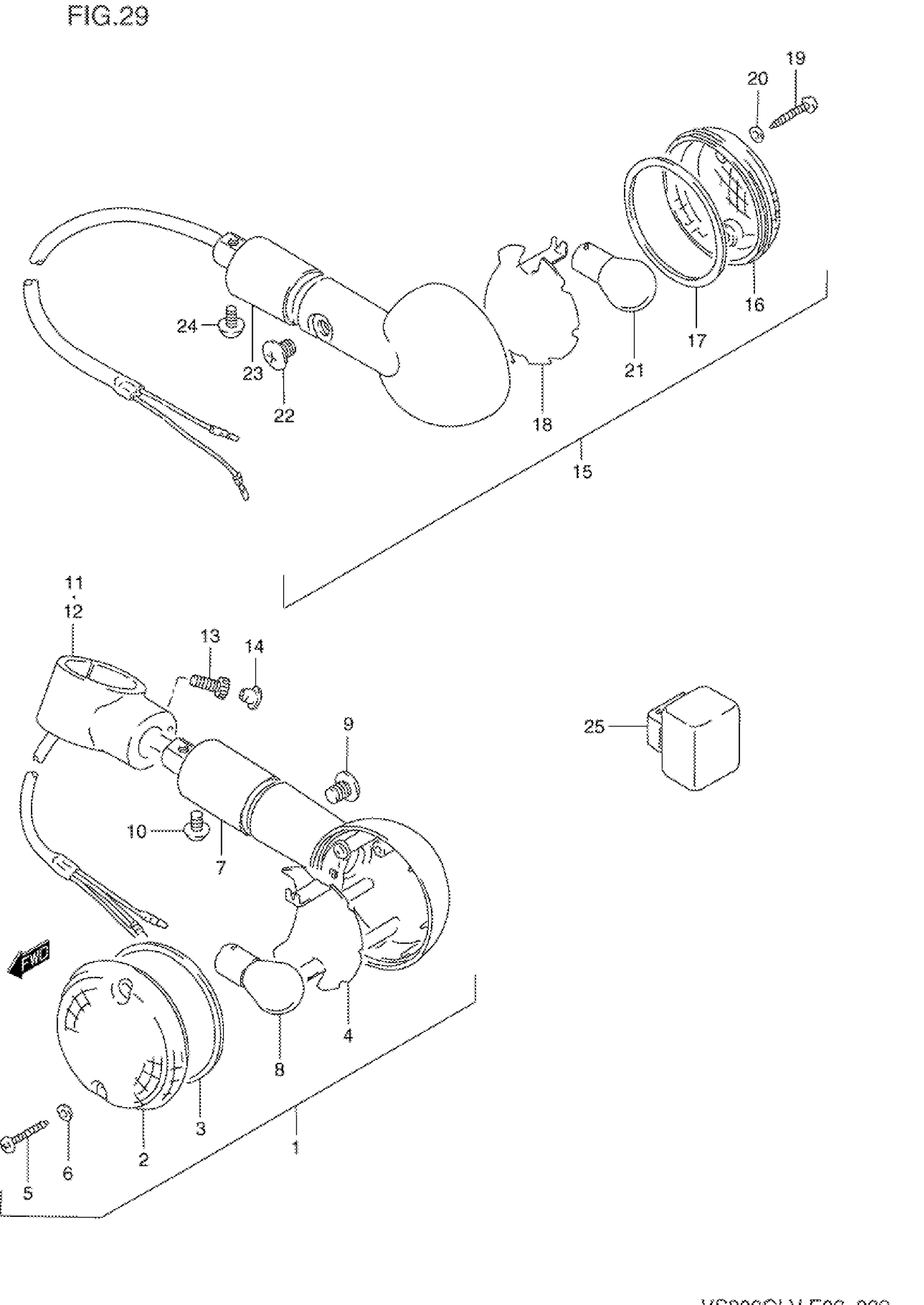

Suzuki VS800GLV (1997) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURN SIGNAL LH | MODEL N/P This part replaces 35601-39A00.

35601-38A32-999

Unavailable

1

LAMP ASSY, FR TURN SIGNAL LH | MODEL N/P This part replaces 35602-39A00.

35601-38A32-999

Unavailable

1

LAMP ASSY, FR TURN SIGNAL,L | MODEL R/S/T/V; Includes Item(s) 2 - 9

35601-38A32-999

Unavailable

2

LENS

35612-38A30

$17.90

3

GASKET

35613-38A00

$9.74

4

REFLECTOR

35624-39A00

Unavailable

5

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

6

GASKET

35627-43010

$2.28

7

STAY, TURNSIGNAL LAMP

35619-38A01

$40.32

8

BULB (12V,21/5W)

09471-12128

$6.73

9

SCREW

35623-38A01

$5.05

10

SCREW

02142-06107

Unavailable

11

BRACKET, RH

35671-39A00

Unavailable

12

BRACKET, LH

35681-39A00

$79.62

13

BOLT

07130-06167

$3.16

14

CAP

09250-05008

$3.76

15

LAMP ASSY, REAR TURNSIGNAL,R | MODEL N/P This part replaces 35603-39A00.

35603-38A02-999

Unavailable

15

LAMP ASSY, REAR TURNSIGNAL,R | MODEL N/P This part replaces 35604-39A00.

35603-38A02-999

Unavailable

15

LAMP ASSY, RR TURN SIGNAL,L | MODEL R/S/T/V; Includes Item(s) 16 - 23

35603-38A02-999

Unavailable

16

LENS

35612-38A01

$13.81

17

GASKET

35613-38A00

$9.74

18

REFLECTOR

35624-39A00

Unavailable

19

SCREW This part replaces 03211-04253.

03211-0425B

$2.70

20

GASKET

35627-43010

$2.28

21

BULB (12V,21W)

09471-12045

$3.27

22

SCREW

35623-38A01

$5.05

23

STAY, TURNSIGNAL LAMP

35619-38A01

$40.32

24

SCREW

02142-06107

Unavailable

25

RELAY, TURN SIGNAL | MODEL N/P This part replaces 38610-45D00.

38610-45D01

$78.73

25

RELAY, TURN SIGNAL | MODEL R/S/T/V

38610-45D01

$78.73
