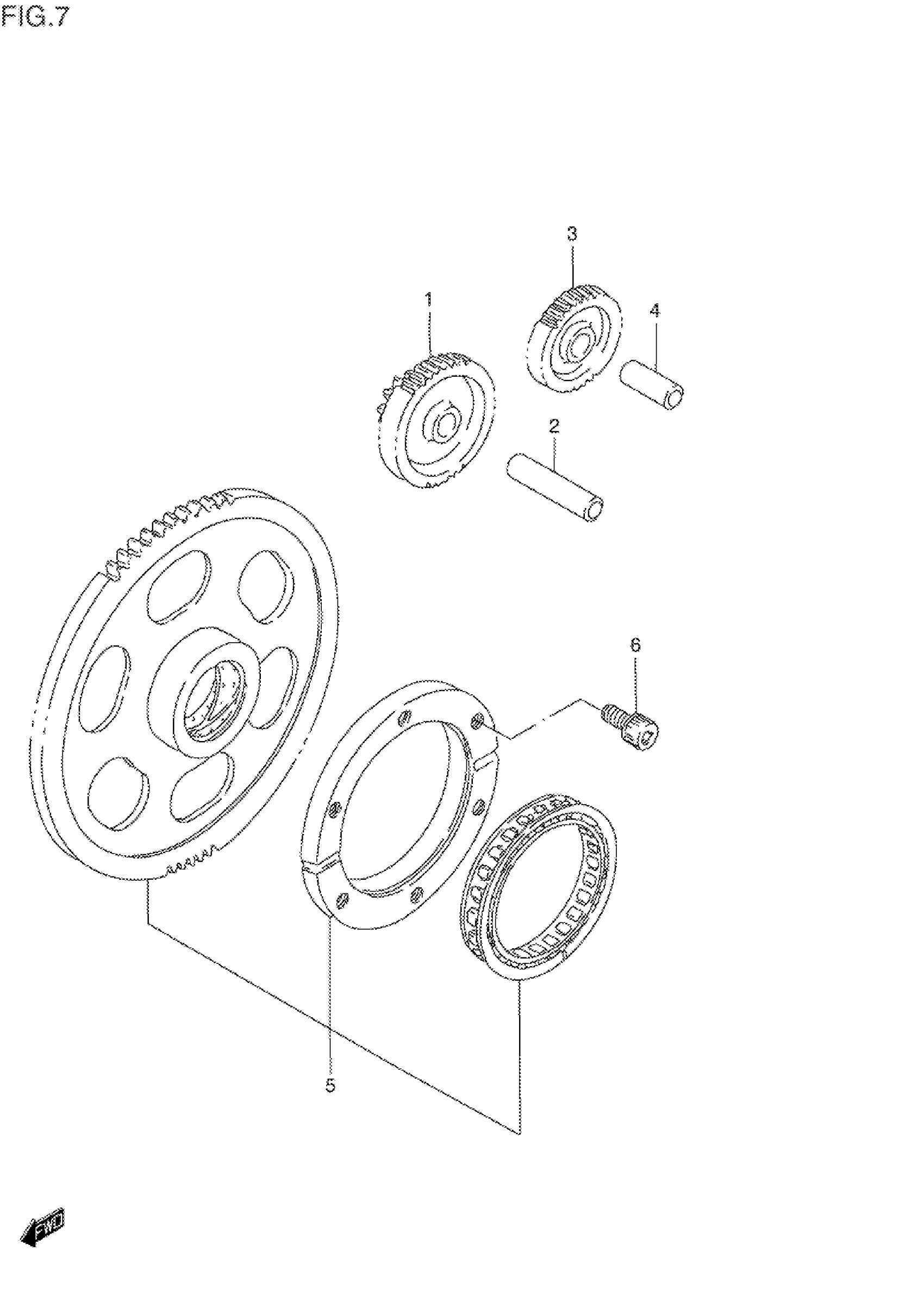

Suzuki VS800GLV (1997) STARTER CLUTCH Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1 | NT:12/41

12611-38A01

$92.83

2

PIN (10X43) | MODEL N/P/R/S This part replaces 09206-10003.

09202-10008

$11.73

2

PIN (10X43) | MODEL T/V

09202-10008

$11.73

3

GEAR, STARTER IDLE NO.2 | NT:32

12611-38A11

$63.30

4

PIN (10X27) | MODEL N/P/R/S This part replaces 09206-10004.

09202-10006

Unavailable

4

PIN (10X27) | MODEL T/V

09202-10006

Unavailable

5

CLUTCH SET, STARTER | MODEL N/P/R This part replaces 12600-38830.

12600-38832

$331.25

5

CLUTCH SET, STARTER | MODEL S/T/V This part replaces 12600-38831.

12600-38832

$331.25

6

BOLT | MODEL N/P/R This part replaces 09106-08043.

07130-0816A

$3.16

6

BOLT | MODEL S/T/V This part replaces 07130-08163.

07130-0816A

$3.16
