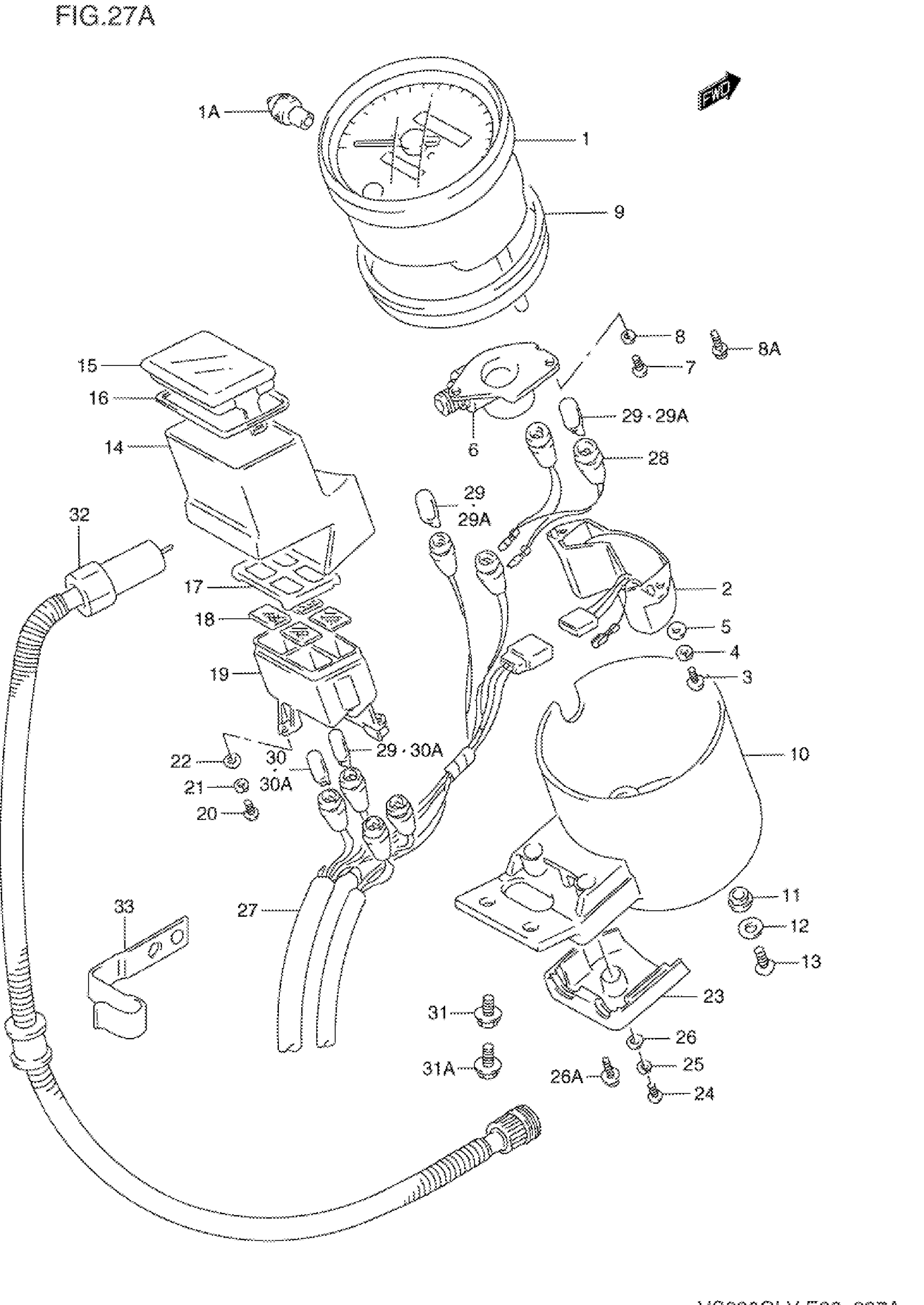

Suzuki VS800GLV (1997) SPEEDOMETER (MODEL T/V) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) | MODEL T This part replaces 34110-39AD0.

34110-39AM1

Unavailable

1

SPEEDOMETER (MILE/KILO) | MODEL V This part replaces 34110-39AM0.

34110-39AM1

Unavailable

1A

KNOB, TRIP

34124-39A10

$15.92

2

UNIT, WATER TEMP WARNING

34490-39A10

$258.98

3

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

4

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

5

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

6

BOX, METER GEAR | MODEL T This part replaces 34131-33450.

34131-19B00

Unavailable

6

BOX, METER GEAR | MODEL V

34131-19B00

Unavailable

7

SCREW | MODEL T

02112-04107

$1.55

8

LOCK WASHER | MODEL T This part replaces 08321-01043.

08321-0104A

$1.84

8A

SCREW | MODEL V This part replaces 02112-34103.

02112-3410A

$2.20

9

CUSHION, METER

34288-39A00

$12.21

10

COVER, METER

34193-39A20

$191.15

11

CUSHION This part replaces 34189-05A30.

34189-05A31

$5.32

12

WASHER

34181-38A00

$3.30

13

SCREW

02112-04087

$1.49

14

BOX, PILOT LAMP

36381-39A20

$107.25

15

LENS, PILOT BOX | MODEL T

36393-38A00

Unavailable

15

LENS, PILOT BOX | MODEL V

36393-39AJ0

$16.13

16

CUSHION

36395-38A00

$7.37

17

PLATE, PILOT LENS

36386-38A00

Unavailable

18

LENS SET, PILOT LAMP | MODEL T

36300-38810

Unavailable

18

LENS SET, PILOT LAMP | MODEL V

36300-38850

Unavailable

19

CASE, PILOT LAMP

36382-38B30

$21.77

20

SCREW This part replaces 02112-03083.

02112-0308A

$1.80

21

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

22

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

23

COVER, PILOT BOX | MODEL T This part replaces 34152-39A20.

34152-39A21

$74.08

23

COVER, PILOT BOX | MODEL V

34152-39A21

$74.08

24

SCREW | MODEL T

02112-04087

$1.49

25

LOCK WASHER | MODEL T This part replaces 08321-01043.

08321-0104A

$1.84

26

WASHER | MODEL T

08322-01047

$1.86

26A

SCREW | MODEL V This part replaces 02112-74083.

02112-7408B

$2.34

27

SOCKET, METER NO.1

34173-39AC0

Unavailable

28

SOCKET, METER NO.2 | MODEL T

34174-39A10

Unavailable

28

SOCKET, METER NO.2 | MODEL V

34174-39AJ0

Unavailable

29

BULB (12V,3W) | MODEL T

09471-12103

$3.83

29A

BULB (12V,3W) | MODEL V

09471-12103

$3.83

30

.BULB (12V1.7W) | MODEL T

09471-12108

$3.42

30A

.BULB (12V1.7W) | MODEL V

09471-12108

$3.42

31

BOLT | MODEL T This part replaces 01550-06163.

01550-0616A

$1.97

31A

SCREW | MODEL V This part replaces 02162-06163.

02162-0616B

$2.03

32

SABLE ASSY,SPEE This part replaces 34910-39A10.

34910-39A11

$114.85

33

GUIDE, METER CABLE

34938-38A02

$10.65
