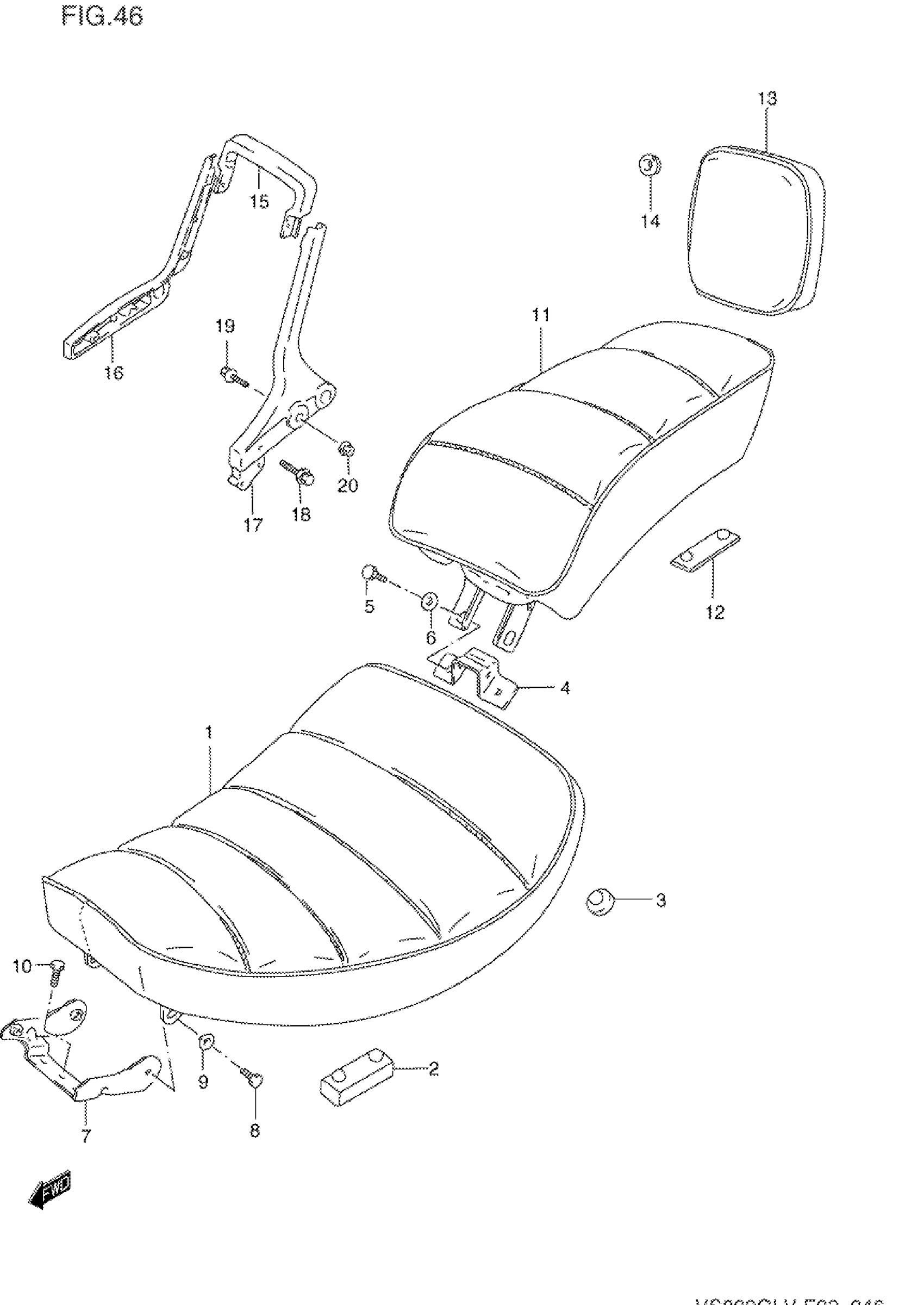

Suzuki VS800GLV (1997) SEAT (MODEL N/P/R/S) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 45100-38A41-5KR.

45100-38A43-5KR

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R/S; Includes Item(s) 2 - 3 This part replaces 45100-38A42-5KR.

45100-38A43-5KR

Unavailable

2

CUSHION

45149-43500

$6.85

3

CUSHION

09321-10012

$2.92

4

PLATE, SEAT HOOK REAR

45119-38A00

$8.18

5

BOLT | MODEL N/P/R This part replaces 01580-06163.

01580-0616A

$2.42

5

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

6

WASHER

09169-06037

$2.45

7

BRACKET, SEAT FRONT | MODEL N This part replaces 45210-38A02-03F.

45210-38A03

$31.70

7

BRACKET, SEAT FRONT | MODEL N/P This part replaces 45210-38A02-19A.

45210-38A03

$31.70

7

BRACKET, SEAT FRONT | MODEL P This part replaces 45210-38A02-0CG.

45210-38A03

$31.70

7

BRACKET, SEAT FRONT | MODEL R/S

45210-38A03

$31.70

8

BOLT | MODEL N/P/R This part replaces 01580-06163.

01580-0616A

$2.42

8

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

9

WASHER

09169-06037

$2.45

10

BOLT | MODEL N/P/R This part replaces 01177-06166.

01580-0616A

$2.42

10

BOLT | MODEL S This part replaces 01550-06163.

01550-0616A

$1.97

11

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 45300-38A40-5KR.

45300-38AV0-5KR

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL P/R/S; Includes Item(s) 12 This part replaces 45300-38A41-5KR.

45300-38AV0-5KR

Unavailable

12

CUSHION

45149-14500

$7.67

13

PAD ASSY, SEAT (BLACK) | MODEL N This part replaces 45350-38A40-5KR.

45350-38A41-5KR

Unavailable

13

PAD ASSY, SEAT (BLACK) | MODEL P/R/S; Includes Item(s) 14

45350-38A41-5KR

Unavailable

14

CUSHION This part replaces 09320-09026.

09320-09062

$2.00

15

HANDLE, PILLION RIDER UPPER

46211-38B01

Unavailable

16

HANDLE,PILLION This part replaces 46212-38A21.

46212-38A50

Unavailable

16

HANDLE, PILLION RIDER RH | CALIFORNIA ONLY

46212-38A31

Unavailable

17

HANDLE, PILLION RIDER LH

46213-38A21

Unavailable

17

HANDLE, PILLION RIDER LH | CALIFORNIA ONLY

46213-38A31

Unavailable

18

BOLT This part replaces 01580-06353.

01580-0635B

$4.00

19

BOLT, CENTER This part replaces 01580-08453.

01580-0845B

$4.68

20

NUT This part replaces 08316-10083.

08316-1008B

$2.66

21

REFER TO FIG.46A(G-11) FOR

SPECIAL NOTE

Unavailable
