1997 Suzuki VS800GLV Rear Swinging Arm Diagram

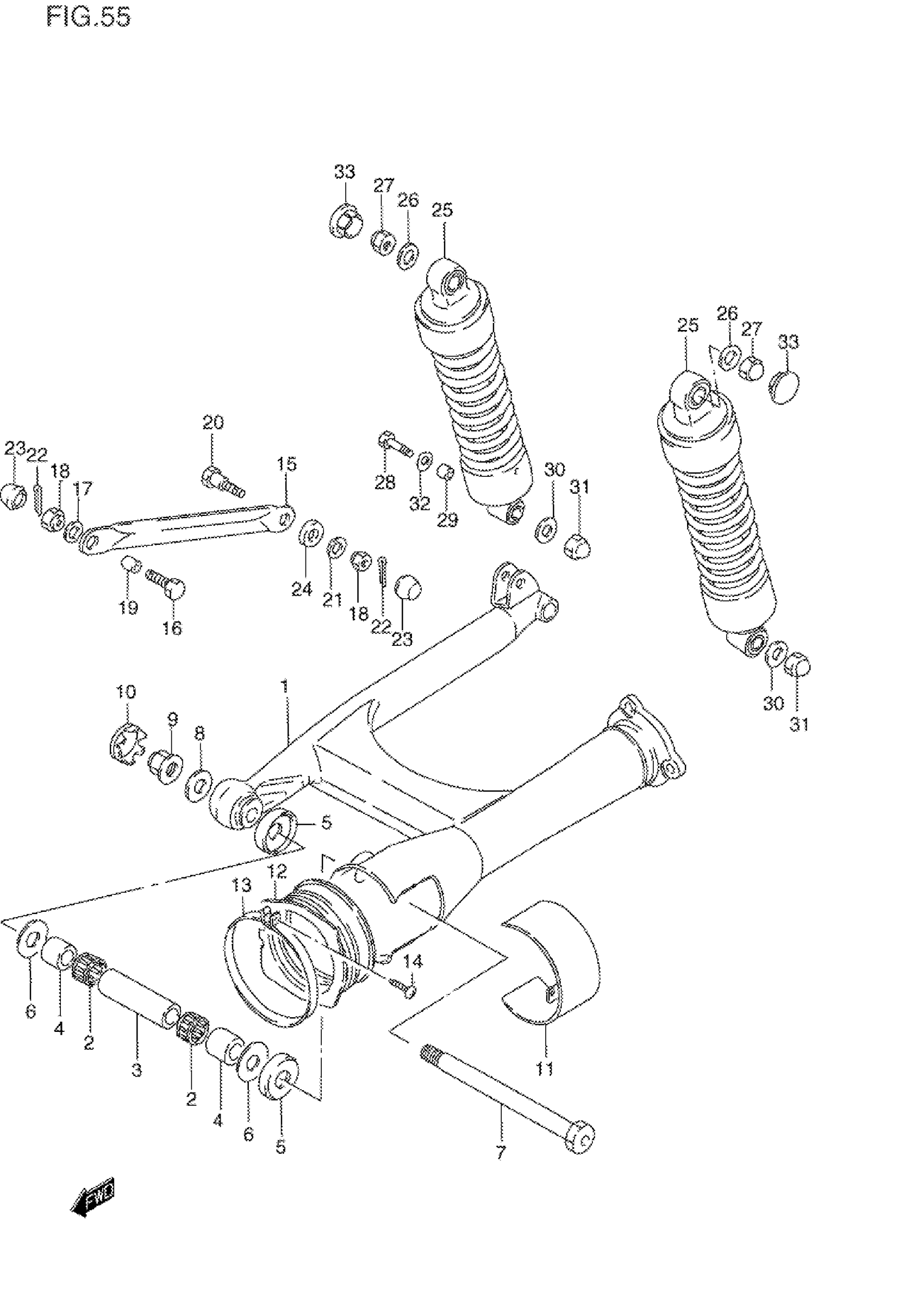

Find the part on the Rear Swinging Arm diagram for your 1997 Suzuki VS800GLV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
NO DESCRIPTION AVAILABLE | MODEL N This part replaces 61100-38E00-03F.
61100-38E01-03F
1
SWINGING ARM, REAR (RED) | MODEL N/P/R/V
61100-38E01-19A
1
NO DESCRIPTION AVAILABLE | MODEL P This part replaces 61100-38E00-0CG.
61100-38E01-0CG
1
SWINGING ARM, REAR (BLACK) | MODEL R/S/V
61100-38E01-33J
1
SWINGING ARM, REAR (BLACK) | MODEL S/T This part replaces 61100-38E01-20F.
61100-38E01-33J
1
SWINGING ARM, REAR (GREEN) | MODEL T
61100-38E01-1ZV
7
SHAFT, PIVOT
61211-38E00
9
NUT This part replaces 08319-21168.
08319-2116A
11
COVER, PIVOT LH (SILVER) | MODEL N This part replaces 61232-38A00-03F.
61232-38A00-13L
11
CAP, LH (RED) | MODEL N/P/R/V
61232-38A00-19A
11
COVER, PIVOT LH (SILVER) | MODEL P This part replaces 61232-38A00-0CG.
61232-38A00-13L
11
CAP, LH (BLACK) | MODEL R/S/V This part replaces 61232-38A00-33J.
61232-38A00-YAY
11
CAP, LH (MAROON) | MODEL S/T
61232-38A00-20F
11
CAP, LH (GREEN) | MODEL T
61232-38A00-1ZV
15
TORQUE LINK, REAR (BLACK)
64310-38A13-019
16
BOLT, FRONT (10X28)
09101-10037
26
$2.54
26
WASHER | MODEL P/R/S/T/V This part replaces 09160-10013.
09160-10123
27
NUT | MODEL N/P This part replaces 08316-16106.
08316-1010B
27
NUT | MODEL R/S/T/V This part replaces 08316-10103.
08316-1010B
