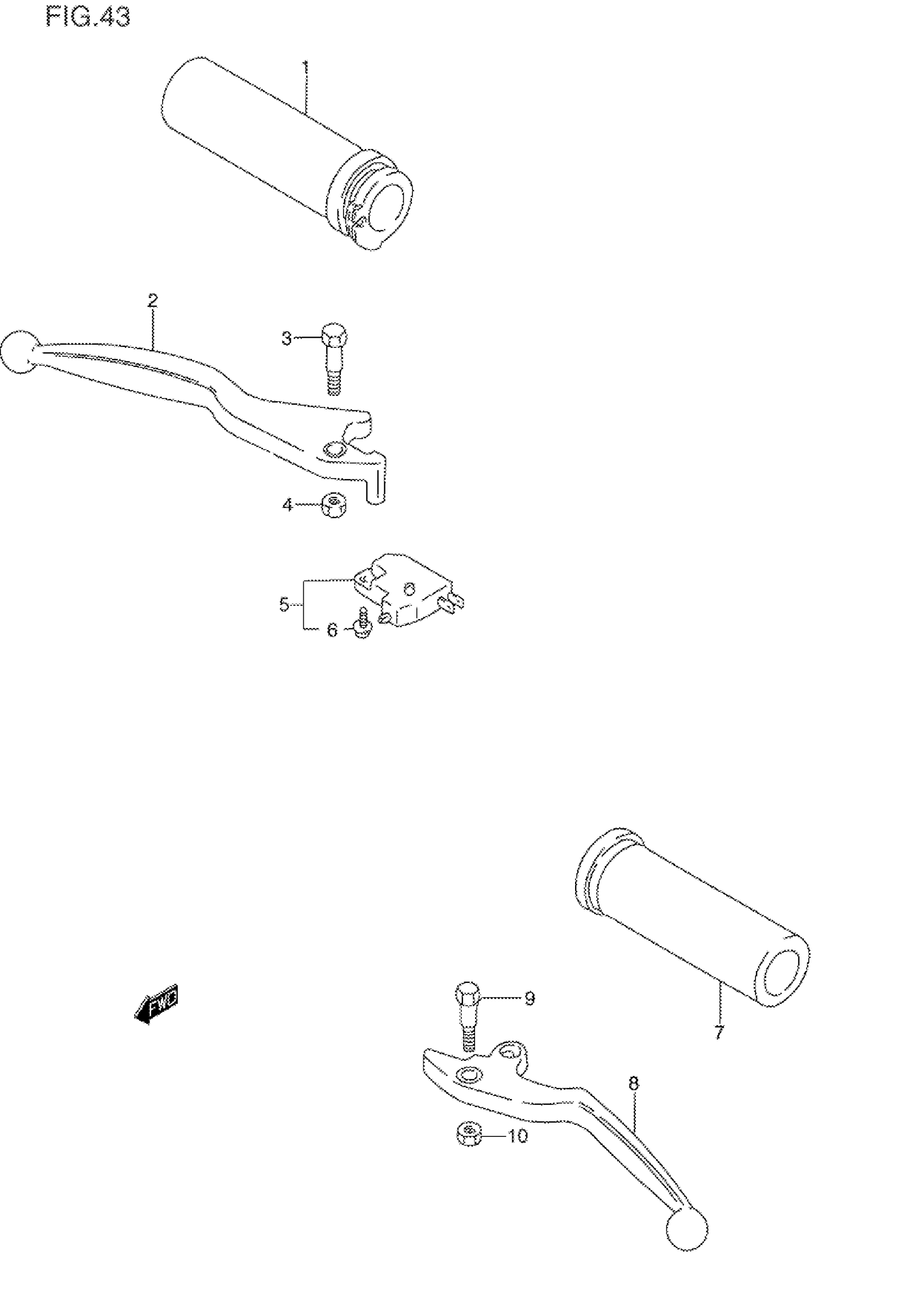

Suzuki VS800GLV (1997) HANDLE LEVER (MODEL N/P/R) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-38A02

Unavailable

2

LEVER, BRAKE | MODEL N This part replaces 57420-24B00.

57420-24B01

$23.83

2

LEVER, BRAKE | MODEL P/R

57420-24B01

$23.83

3

BOLT | MODEL N This part replaces 57431-38A00.

57431-38A10

$10.42

3

BOLT | MODEL P/R

57431-38A10

$10.42

4

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

5

SWITCH ASSY,FR BRAKE | Includes Item(s) 6 This part replaces 57460-17C00.

57460-14J02

$35.21

6

SCREW

57465-17C00

$2.37

7

GRIP, LH

57210-38A02

Unavailable

8

LEVER, CLUTCH | MODEL N This part replaces 57620-38A00.

57621-38A02

$18.76

8

LEVER, CLUTCH | MODEL P This part replaces 57620-38A01.

57621-38A02

$18.76

8

LEVER, CLUTCH | MODEL R

57621-38A02

$18.76

9

BOLT | MODEL N This part replaces 57431-38A00.

57431-38A10

$10.42

9

BOLT | MODEL P/R

57431-38A10

$10.42

10

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

11

REFER TO FIG.43A(G- 7) FOR

SPECIAL NOTE

Unavailable
