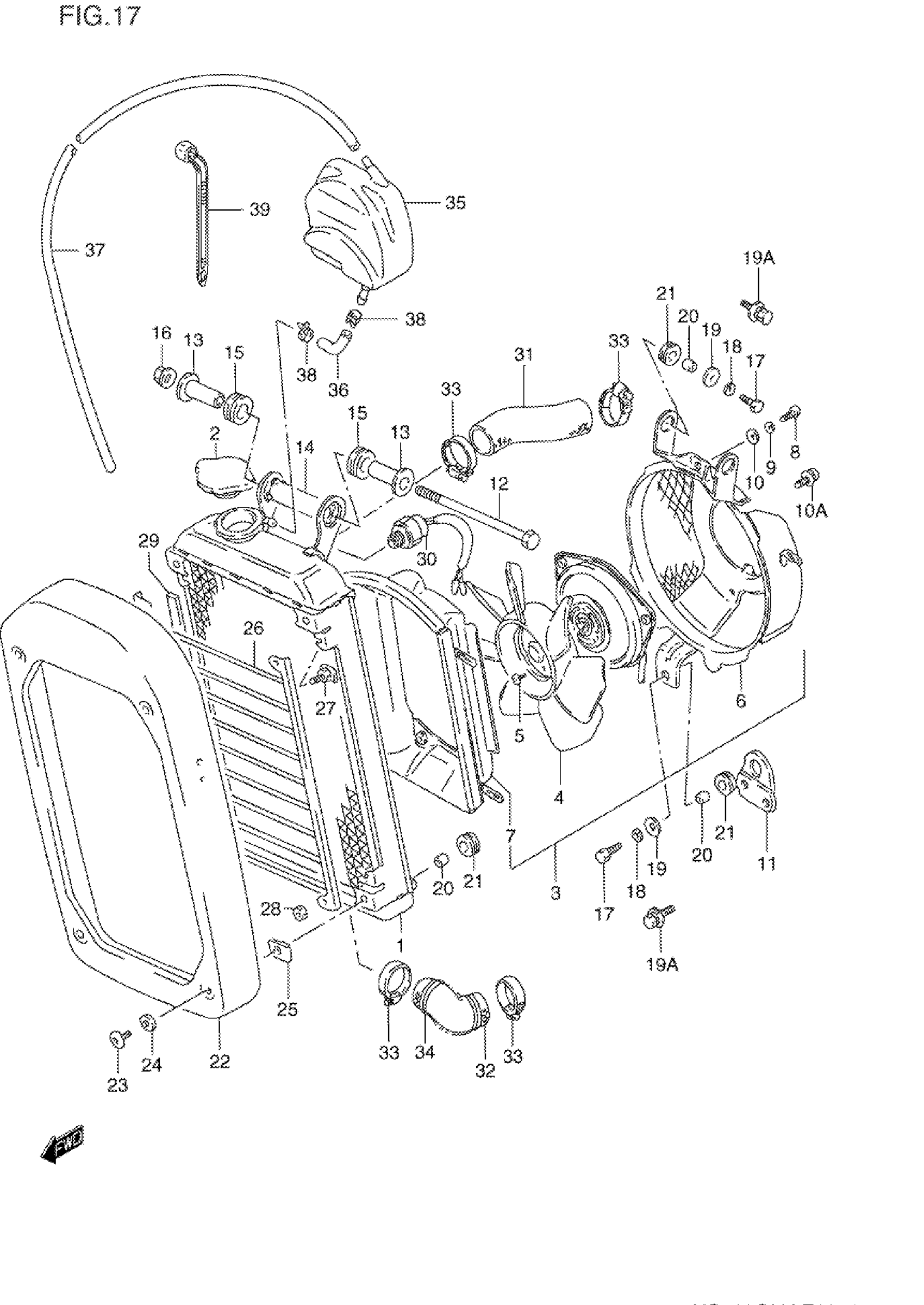

Suzuki VS800GLV (1997) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17710-39A00

Unavailable

2

CAP, RADIATOR | MODEL N/P This part replaces 17730-20930.

17730-08J00

$42.50

2

CAP, RADIATOR | MODEL R/S/T/V This part replaces 17730-12C01.

17730-08J00

$42.50

3

FAN ASSY | Includes Item(s) 4 - 10A

17800-38A03

Unavailable

4

FAN

17820-38A00

Unavailable

5

SCREW | MODEL N/P/R/S This part replaces 17801-05A00.

02112-0406B

$1.55

5

SCREW | MODEL T/V This part replaces 02112-04063.

02112-0406B

$1.55

6

SHROUD

17770-39A00

Unavailable

7

DUCT, FAN

17150-38A00

Unavailable

8

SCREW, THROTTLE | MODEL N/P/R This part replaces 02112-05106.

02112-0510A

$1.49

9

LOCK WASHER | MODEL N/P/R This part replaces 08321-21056.

08321-0105A

$1.84

10

WASHER, FRONT | MODEL N/P/R This part replaces 08322-21056.

08322-0105A

$1.84

10A

SCREW | MODEL S/T/V This part replaces 02112-75103.

02112-7510A

Unavailable

11

BRACKET, RADIATOR FAN

17808-38A00

Unavailable

12

BOLT (10X135) | MODEL N/P

09100-10198

Unavailable

12

BOLT (10X135) | MODEL R/S/T/V

09100-10277

Unavailable

13

SPACER

17782-38A01

Unavailable

14

SPACER

17783-38A00

Unavailable

15

CUSHION

09320-15008

$3.89

16

NUT This part replaces 08319-31105.

08319-3110A

$2.73

17

BOLT | MODEL N/P/R This part replaces 01107-06165.

01500-0616A

$1.78

18

LOCK WASHER | MODEL N/P/R This part replaces 08321-21064.

08321-0106A

$1.84

19

WASHER (6.5X18X1.6) | MODEL N/P/R This part replaces 09160-06039.

09160-06109

$1.49

19A

BOLT | MODEL S/T/V This part replaces 09118-06067.

09118-06017

$2.12

20

SPACER | MODEL N/P/R/S/T This part replaces 09180-06154.

09180-06261

$1.91

20

SPACER | MODEL V

09180-06261

$1.91

21

CUSHION

09320-08037

$3.72

22

COVER, RADIATOR (BLACK) | MODEL N This part replaces 17761-39A00-03F.

17761-39A01-33J

Unavailable

22

COVER, RADIATOR (BLUE) | MODEL P

17761-39A01-0CG

Unavailable

22

COVER, RADIATOR (RED) | MODEL N This part replaces 17761-39A00-19A.

17761-39A01-19A

Unavailable

22

COVER, RADIATOR (RED) | MODEL P/R/V

17761-39A01-19A

Unavailable

22

COVER, RADIATOR (BLACK) | MODEL R/S/V

17761-39A01-33J

Unavailable

22

COVER, RADIATOR (MAROON) | MODEL S/T

17761-39A01-20F

Unavailable

22

COVER, REDIATOR (GREEN) | MODEL T

17761-39A01-1ZV

Unavailable

22

COVER, RADIATOR (BLUE) | MODEL V

17761-39A01-Y0N

Unavailable

22

COVER SET, RADIATOR (CHROME) | OPTINCLUDED NO.22.23.24.26

17700-39810

Unavailable

23

SCREW (6X10)

09139-06076

$2.42

24

WASHER (6.5X14X2.0) This part replaces 09160-06093.

09160-06126

$1.91

25

NUT, FAN ASSY This part replaces 17762-39A00.

09148-06015

$3.04

26

BUMPER, RADIATOR

17790-39A00

Unavailable

27

BOLT (5X8)

09119-05014

Unavailable

28

.NUT | MODEL N/P This part replaces 08310-22055.

09140-05006

$2.19

28

NUT | MODEL R/S/T/V This part replaces 08310-00053.

08310-0005A

$1.84

29

CUSHION, RADIATOR BUMPER

17795-38A00

Unavailable

30

SWITCH, RADIATOR FAN

17680-24A02

$97.09

31

HOSE, RADIATOR IN

17851-39A00

$17.82

32

HOSE, WATER PUMP OUT | MODEL N This part replaces 17852-39A00.

17858-38820

$14.76

32

HOSE, WATER PUMP OUT | MODEL P/R This part replaces 17852-38A00.

17858-38820

$14.76

32

HOSE, WATER PUMP OUT | MODEL S/T This part replaces 17858-38A01.

17858-38820

$14.76

32

HOSE, RADIATOR OUT | MODEL V

17858-38820

$14.76

33

CLAMP | MODEL N/P/R This part replaces 09402-30502.

09402-32511

$10.86

33

CLAMP | MODEL S/T/V

09402-32511

$10.86

34

SPRING | ~F.NO.101391

09440-35005

Unavailable

35

TANK, RESERVE

17911-38A00

Unavailable

36

HOSE, INLET

17981-38A01

$7.37

37

HOSE, OUTLET | MODEL N/P/R/S/T This part replaces 17982-38A03.

17982-38810

$17.37

37

HOSE, OUTLET | MODEL V

17982-38810

$17.37

38

CLIP | MODEL N/P/R This part replaces 09401-08407.

09401-08411

$1.78

38

CLIP | MODEL S/T/V

09401-08411

$1.78

39

CLAMP

09407-14403

$2.26
