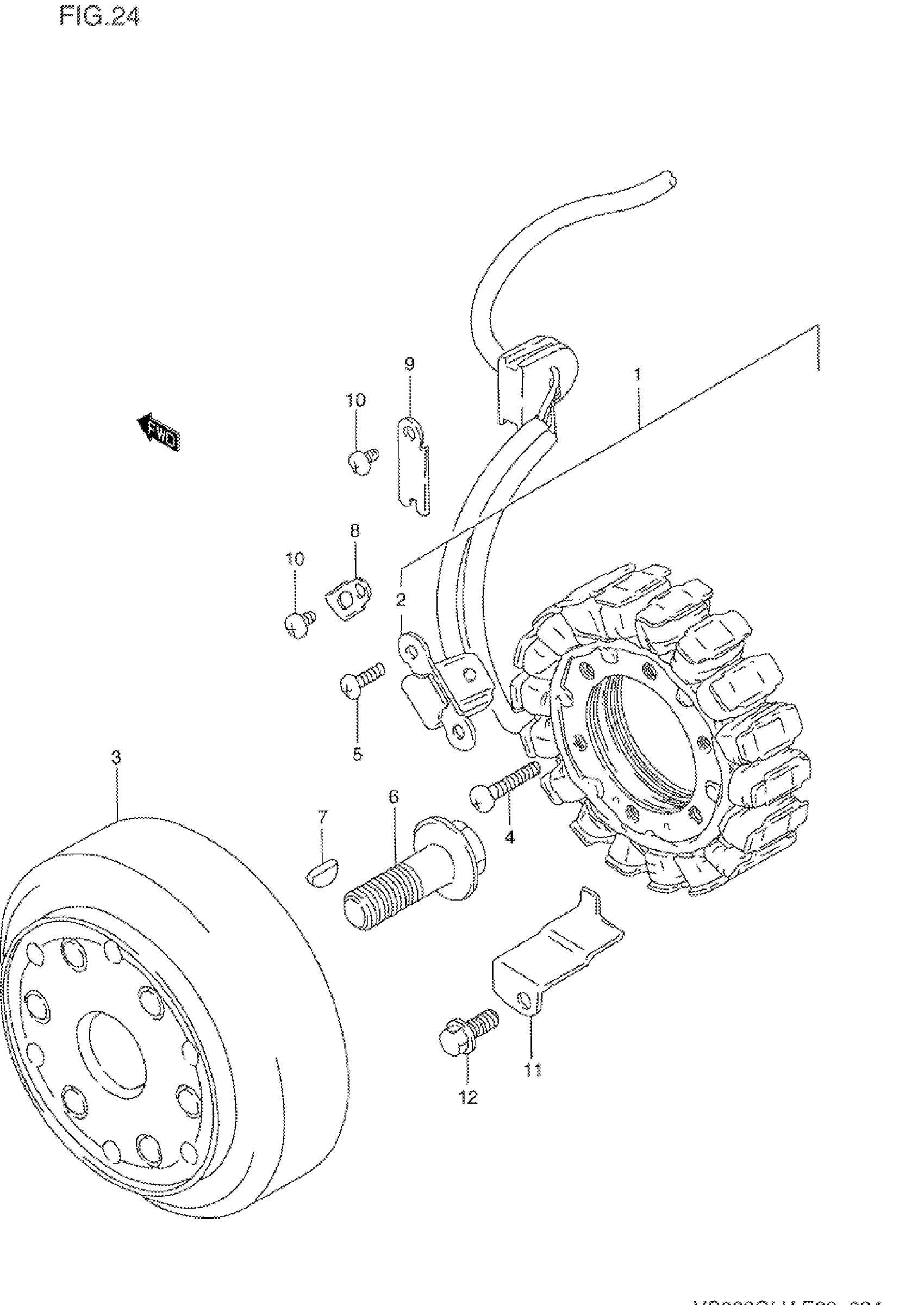

Suzuki VS800GLV (1997) MAGNETO (MODEL N/P/R/S) Diagram

#

Description
Price

1

STATOR | Includes Item(s) 2

32101-38A10

Unavailable

2

SENSOR, TIMING

32160-38A10

Unavailable

3

ROTOR

32102-38A10

Unavailable

4

SCREW | MODEL N/P

01547-06307

$2.03

4

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

$2.73

5

SCREW | MODEL N/P

02112-05107

$1.49

5

SCREW, THROTTLE | MODEL R/S This part replaces 02112-05103.

02112-0510A

$1.49

6

BOLT

09103-14001

$11.82

7

KEY | MODEL N/P/R This part replaces 08341-31049.

09420-04008

$3.42

7

KEY | MODEL S

09420-04008

$3.42

8

CLAMP

31497-45000

$1.92

9

CLAMP

32371-38A10

Unavailable

10

SCREW

02112-05107

$1.49

11

CLAMP | MODEL N/P/R This part replaces 32371-38A20.

32371-45C00

$4.58

11

CLAMP | MODEL S

32371-45C00

$4.58

12

BOLT

01547-06107

$1.65

13

REFER TO FIG.24A(D-12) FOR

SPECIAL NOTE

Unavailable
