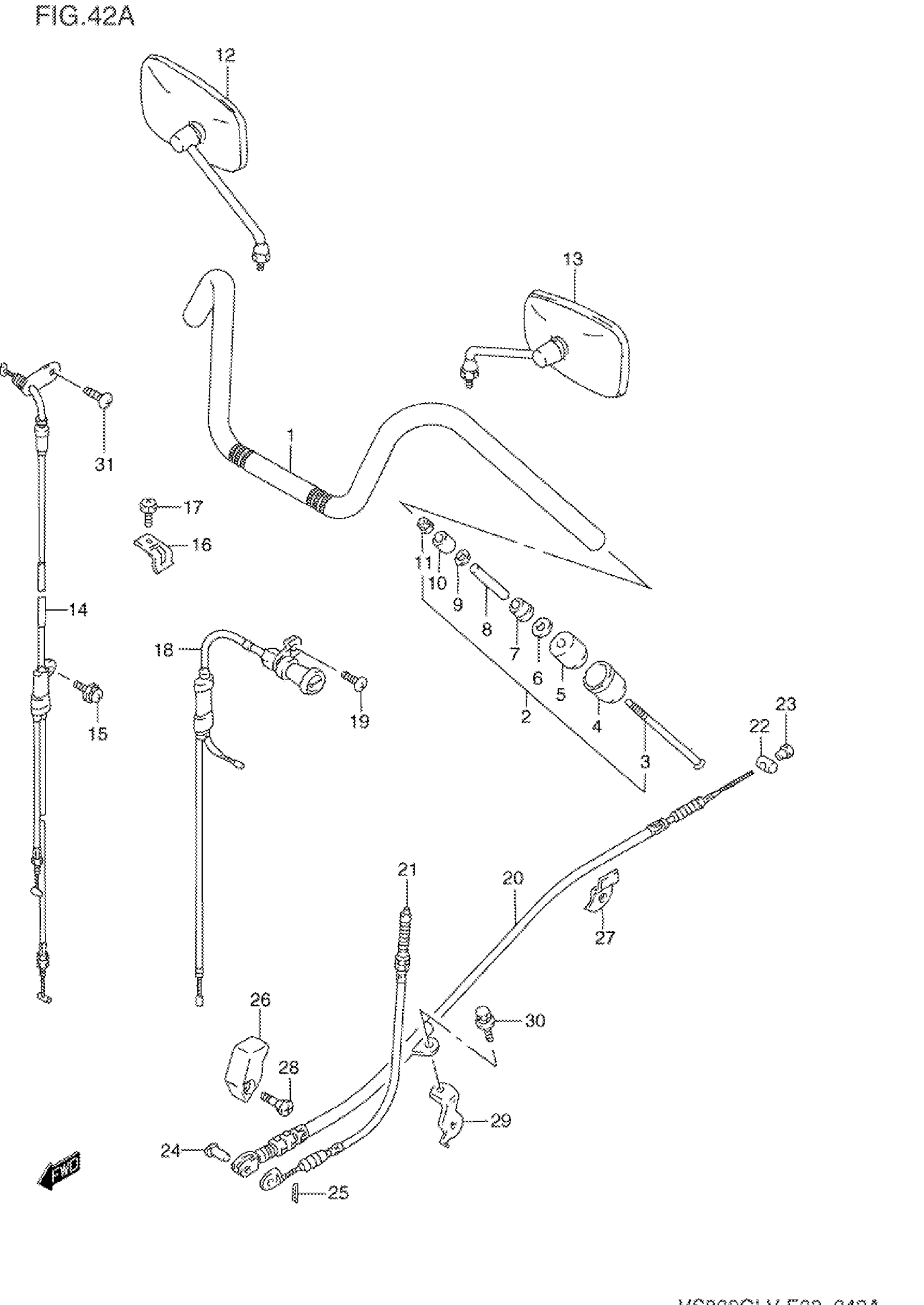

Suzuki VS800GLV (1997) HANDLEBAR (MODEL S/T/V) Diagram

#

Description
Price

1

HANDLEBAR | MODEL S

56111-38A61

Unavailable

1

HANDLEBAR | MODEL T/V

56111-38A90

Unavailable

2

BALANCER SET | MODEL S This part replaces 56200-26820.

56200-38811

Unavailable

2

BALANCER SET | MODEL T This part replaces 56200-26821.

56200-38811

Unavailable

2

BALANCER SET, HANDLEBAR | MODEL V; Includes Item(s) 3 - 11 This part replaces 56200-48830.

56200-48831

$88.55

3

SCREW

09127-06019

$3.55

4

CAP | MODEL S/T

56274-26D00

Unavailable

5

BALANCER | MODEL S/T

56271-26D10

Unavailable

6

SPACER | MODEL S/T This part replaces 56275-26D00.

56275-26D01

Unavailable

7

EXPANDER, OUTER | MODEL S This part replaces 56272-26D00.

56272-26D01

$7.25

7

EXPANDER | MODEL T/V

56272-26D01

$7.25

8

SPACER

56276-17D00

$5.07

9

WASHER (6.5X18X1.0)

09160-06028

$1.49

10

BALANCER SET This part replaces 56271-26D00.

56200-38811

Unavailable

11

NUT

09159-06024

$2.11

12

MIRROR ASSY, REAR VIEW RH | MODEL S/T

56500-38A40

Unavailable

12

MIRROR ASSY,REA | MODEL V This part replaces 56500-38A41.

56500-38A42

Unavailable

13

MIRROR ASSY, REAR VIEW LH | MODEL S/T

56600-38A40

Unavailable

13

MIRROR ASSY REA | MODEL V This part replaces 56600-38A41.

56600-38A42

Unavailable

14

CABLE ASSY, THROTTLE

58300-39E00

$61.06

15

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

16

CLAMP, THROTTLE CABLE

58621-38A00

$6.38

17

SCREW This part replaces 02112-75123.

02112-7512A

$2.42

18

CABLE ASSY, STARTER This part replaces 58400-38A13.

58400-38A14

$65.94

19

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

20

CABLE, REAR BRAKE

58510-38A01

$144.82

21

CABLE, STOP LAMP SWITCH

58830-38A00

$35.40

22

.PIN (13X18) | MODEL S/T This part replaces 09209-13005.

09209-13018

$3.42

22

PIN, REAR | MODEL V

09209-13018

$3.42

23

.NUT | MODEL S/T This part replaces 09150-06009.

09150-06010

$3.10

23

.NUT | MODEL V This part replaces 09150-06014.

09150-06010

$3.10

24

PIN, FRONT

09200-05001

$1.65

25

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

26

GUIDE, REAR BRAKE CABLE

58631-38A00

Unavailable

27

CLAMP, REAR BRAKE CABLE

58721-38A00

Unavailable

28

SCREW This part replaces 02122-06203.

02122-0620A

$1.49

29

BRACKET, REAR BRAKE CABLE

43275-38A00

Unavailable

30

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

31

SCREW

02142-05087

$1.49
