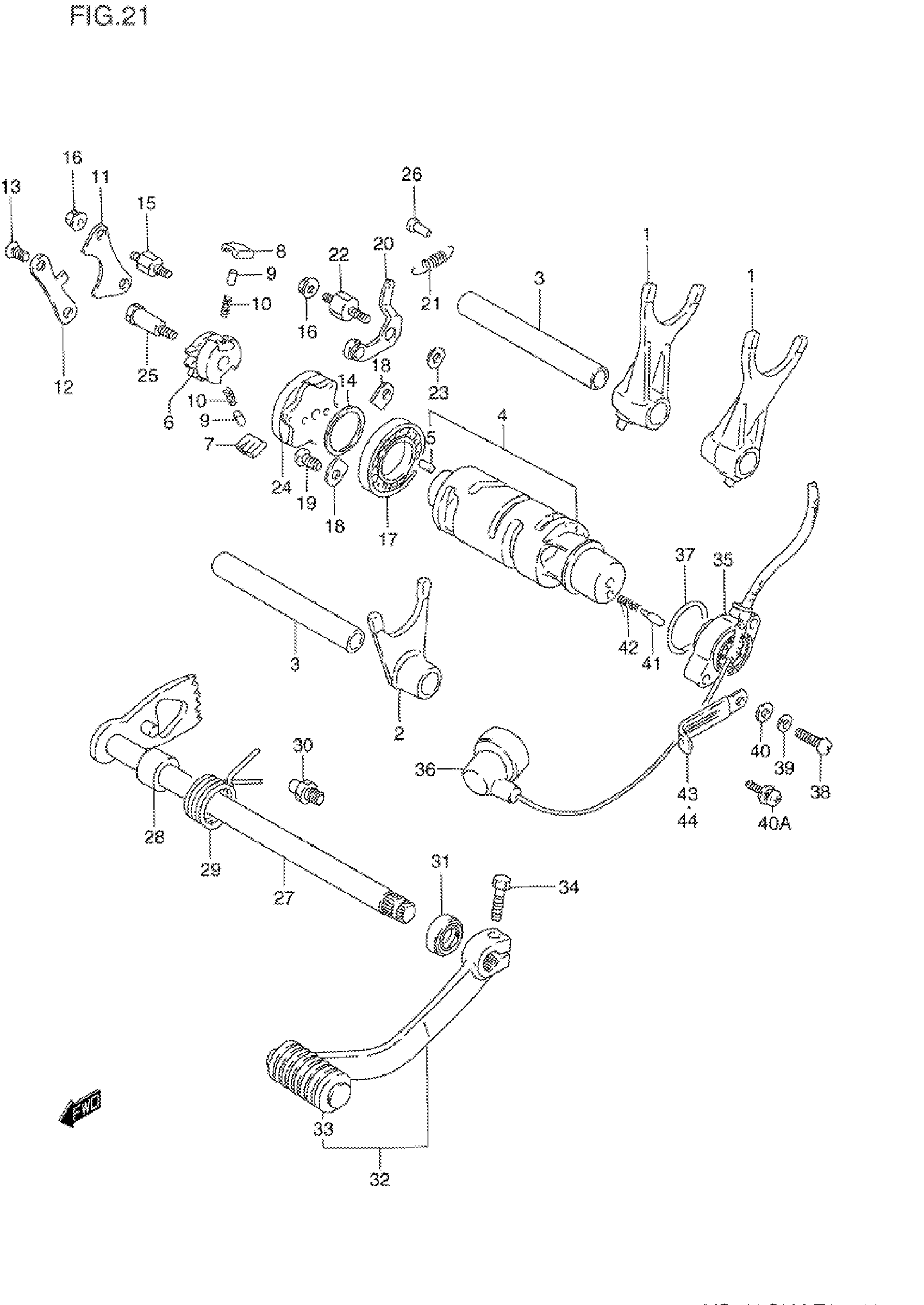

Suzuki VS800GLV (1997) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38A02

$70.63

2

FORK, GEAR SHIFTING NO.2

25221-38A01

Unavailable

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

$29.25

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-38A03

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

GEAR, GEAR SHIFT CAM DRIVEN | MODEL N/P/R/S/T This part replaces 25322-31301.

25322-31310

$26.93

6

GEAR, GEAR SHIFT CAM DRIVEN | MODEL V This part replaces 25322-31302.

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, PAWL

25331-38A00

Unavailable

12

GUIDE, CAM

25341-38A00

Unavailable

13

SCREW | MODEL N/P This part replaces 02122-06128.

02122-06127

$1.84

13

SCREW | MODEL R/S/T/V This part replaces 02122-06123.

02122-0612A

$1.49

14

WASHER (25X32X3)

09160-25059

$6.63

15

BOSS

25332-38A00

Unavailable

16

NUT | MODEL N/P This part replaces 09159-06017.

08319-31067

$2.03

16

NUT | MODEL R/S/T/V This part replaces 08316-10063.

08316-1006B

$2.50

17

BEARING (25X47X8) | MODEL N/P This part replaces 09262-25002.

09262-25006

$25.54

17

BEARING (25X47X8) | MODEL R/S/T/V

09262-25006

$25.54

18

RETAINER | MODEL N/P This part replaces 24741-20A10.

24741-21A00

$2.81

18

RETAINER, BEARING | MODEL R/S/T/V

24741-21A00

$2.81

19

SCREW | MODEL N/P This part replaces 02112-06128.

02112-06127

$1.84

19

SCREW | MODEL R/S/T/V This part replaces 02112-06123.

02112-0612A

$1.49

20

STOPPER, CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$3.93

22

SUPPORT

25355-38A00

Unavailable

23

WASHER

08211-06141

$1.59

24

PLATE, STOPPER

25380-38A02

$17.62

25

PIN

25312-38A00

$6.28

26

HOOK

09223-04001

$1.68

27

SHAFT, GEAR SHIFTING

25510-38A00

$107.25

28

SPACER (12X20X15.3)

09180-12068

$3.16

29

SPRING | MODEL N/P/R/S This part replaces 09444-26012.

09444-26013

$3.10

29

SPRING | MODEL T/V

09444-26013

$3.10

30

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 33

25600-38A00

$51.51

33

COVER

25652-20C00

$5.44

34

BOLT | MODEL N/P This part replaces 01107-06207.

01500-06207

$2.28

34

BOLT, GEAR SHIFT LINK | MODEL R/S/T/V This part replaces 01500-06203.

01500-0620A

$1.78

35

BODY, SWITCH | Includes Item(s) 36

37720-38A40

$69.35

36

CAP

36618-43410

$2.90

37

O RING (D:2.4,ID:26.2) | MODEL N/P/R/S

09280-26005

$2.30

37

O RING (D:2.4,ID:25.7) | MODEL T/V

09280-26007

$6.52

38

SCREW | MODEL N/P

02112-05207

$1.97

39

LOCK WASHER | MODEL N/P This part replaces 08321-01057.

08321-0105A

$1.84

40

WASHER | MODEL N/P

08322-01057

$2.13

40A

SCREW | MODEL R/S/T/V This part replaces 02112-75203.

02112-7520A

$2.90

41

CONTACT, SWITCH

09209-05011

$2.20

42

SPRING

09440-04010

$1.54

43

CLAMP (L:60) | MODEL N/P/R/S/T This part replaces 09404-05401.

09404-06429

$1.83

43

CLAMP | MODEL V

09404-06429

$1.83

44

CLAMP | MODEL N/P This part replaces 09404-06204.

09404-06039

$1.74

44

CLAMP | MODEL R/S/T/V This part replaces 09404-06207.

09404-06039

$1.74
