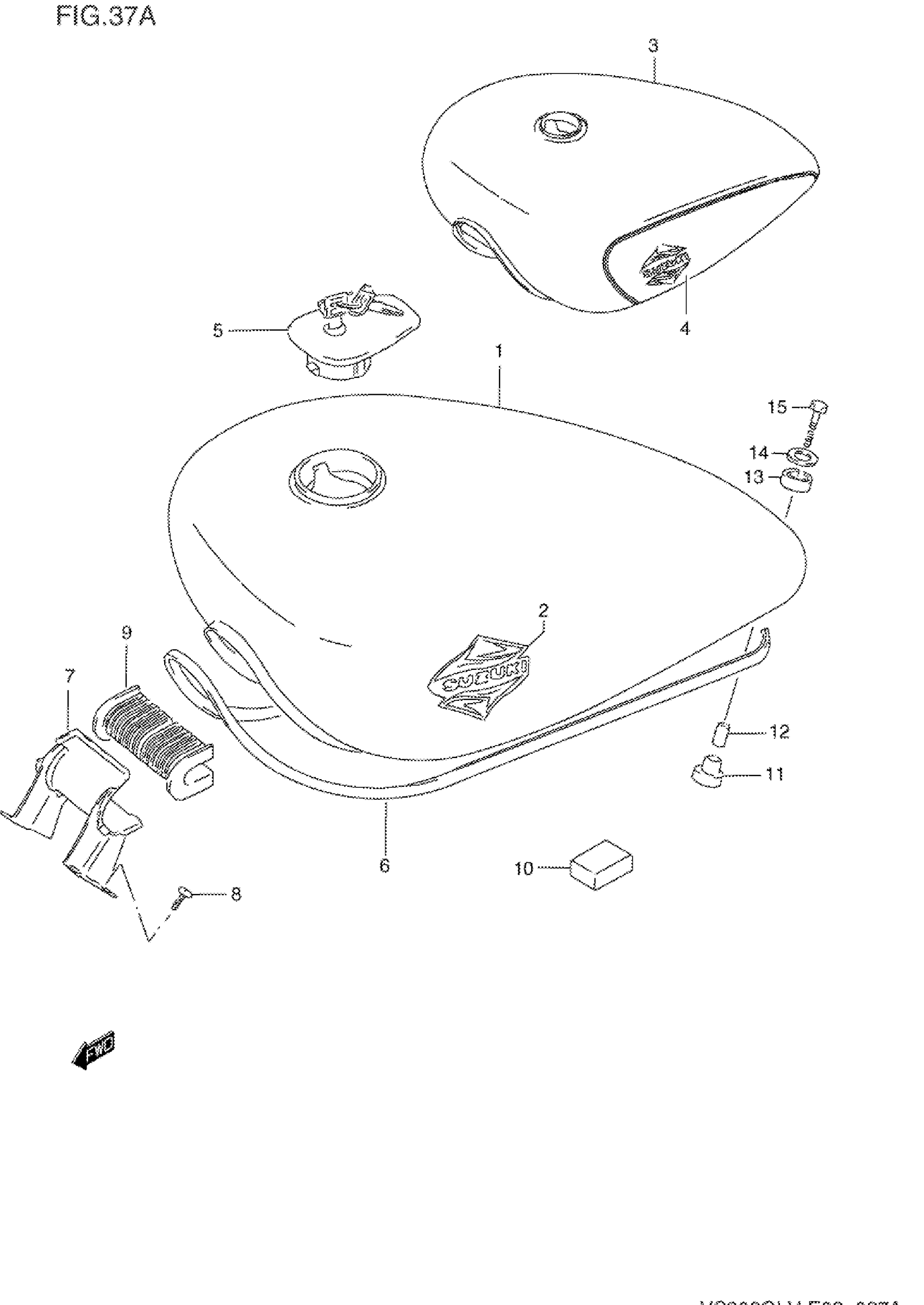

Suzuki VS800GLV (1997) FUEL TANK (MODEL S/T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL S This part replaces 44100-39A80-20F.

44100-39A91-20F

Unavailable

1

TANK ASSY, FUEL | MODEL S This part replaces 44100-39A80-33J.

44100-39A91-33J

Unavailable

1

TANK ASSY, FUEL (MAROON) | CALIFORNIA ONLY,MODEL S

44100-39AA0-20F

Unavailable

1

TANK ASSY, FUEL (BLACK) | CALIFORNIA ONLY,MODEL S; Includes Item(s) 2 - 2

44100-39AA0-33J

Unavailable

2

EMBLEM | MODEL S FOR 20F

68111-38A21-C1J

Unavailable

2

EMBLEM | MODEL S FOR 33J

68111-38A21-C1K

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-39AB0-2BX.

44100-39AC1-2BX

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 44100-39AB0-1ZV.

44100-39AC1-1ZV

Unavailable

3

TANK ASSY, FUEL (MAROON) | CALIFORNIA ONLY,MODEL T

44100-39AD0-2BX

Unavailable

3

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL T; Includes Item(s) 4 - 4 This part replaces 44100-39AD0-1ZV.

44110-38A12-YD8

Unavailable

4

TAPE SET, FUEL TANK | MODEL T FOR 2BX

68110-38B00-E6Y

Unavailable

4

TAPE SET, FUEL TANK | MODEL T FOR 1ZV

68110-38B00-E7A

Unavailable

5

CAP SET, FUEL TANK

44200-38820

$108.83

5

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-38850.

44200-38852

$94.71

5

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA

44200-38860

Unavailable

5

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA

44200-38870

Unavailable

6

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

7

BRACKET, FRONT (BLACK) | MODEL S FOR 20F This part replaces 44250-38A01-20F.

44250-38A01-019

$44.30

7

BRACKET, FRONT (BLACK)

44250-38A01-019

$44.30

8

SCREW This part replaces 02112-76163.

02112-7616A

$2.12

9

CUSHION, FRONT

44511-38A01

$11.60

10

CUSHION, SIDE This part replaces 44512-38B00.

56314-48B10

$7.75

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

SPACER This part replaces 09180-06091.

09180-06273

$3.05

13

CUSHION, REAR UPPER

09320-14013

$2.11

14

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

15

BOLT This part replaces 09128-06055.

01500-0635A

$2.19

16

REFER TO FIG.37B(F-10) FOR

SPECIAL NOTE

Unavailable
