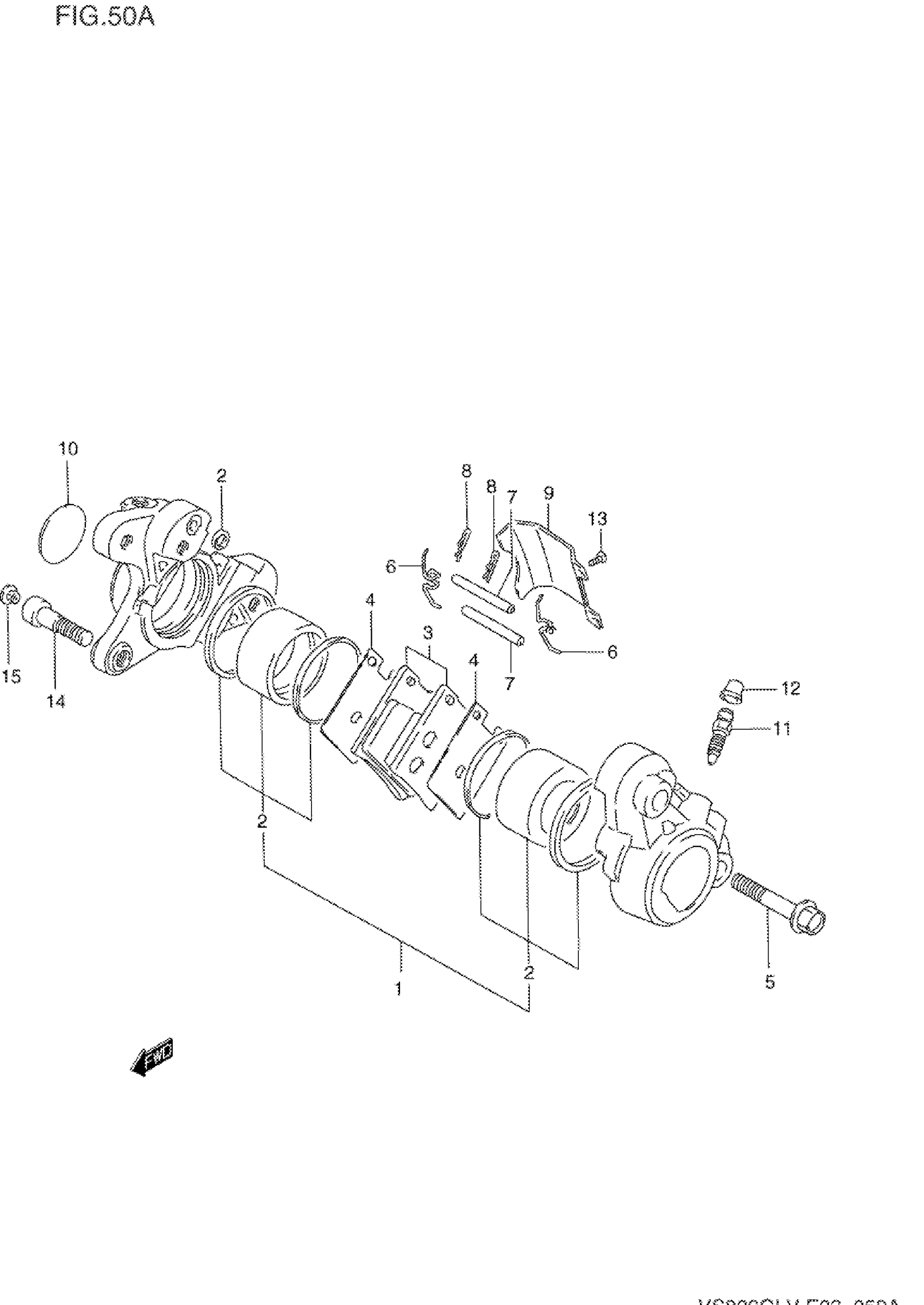

Suzuki VS800GLV (1997) FRONT CALIPER (MODEL P/R/S/T/V) Diagram

#

Description
Price

CALIPER ASSY, FRONT | Includes Item(s) 1 - 13 This part replaces 59100-38A02.

59100-38A02-999

$381.93

1

PISTON SET This part replaces 69100-38810.

69100-38851

$104.85

2

SEAL SET, PISTON This part replaces 69100-38830.

69100-38831

$27.85

3

PAD SET | <-59130-38B10

59100-38820

$48.07

4

SHIM

59371-33410

$12.57

5

BOLT

59145-16700

$8.83

6

SPRING

59143-16700

$5.80

7

PIN

69141-45000

$5.17

8

.CLIP, PAD PIN

69142-45000

$4.34

9

COVER | MODEL P/R->59151-38B01 This part replaces 59151-38B00.

59151-38B01

Unavailable

9

COVER | MODEL S/T/V

59151-38B01

Unavailable

10

CAP, CALIPER

59152-24A00

Unavailable

11

BLEEDER

59121-18410

$8.73

12

CAP

55156-66310

$5.17

13

SCREW (4X6) | MODEL P/R->59153-38B10 This part replaces 59153-38B00.

59153-38B10

$7.80

13

SCREW (4X6) | MODEL S/T/V

59153-38B10

$7.80

14

BOLT (10X33)

09106-10038

$3.55

15

CAP

09250-08014

$2.85
