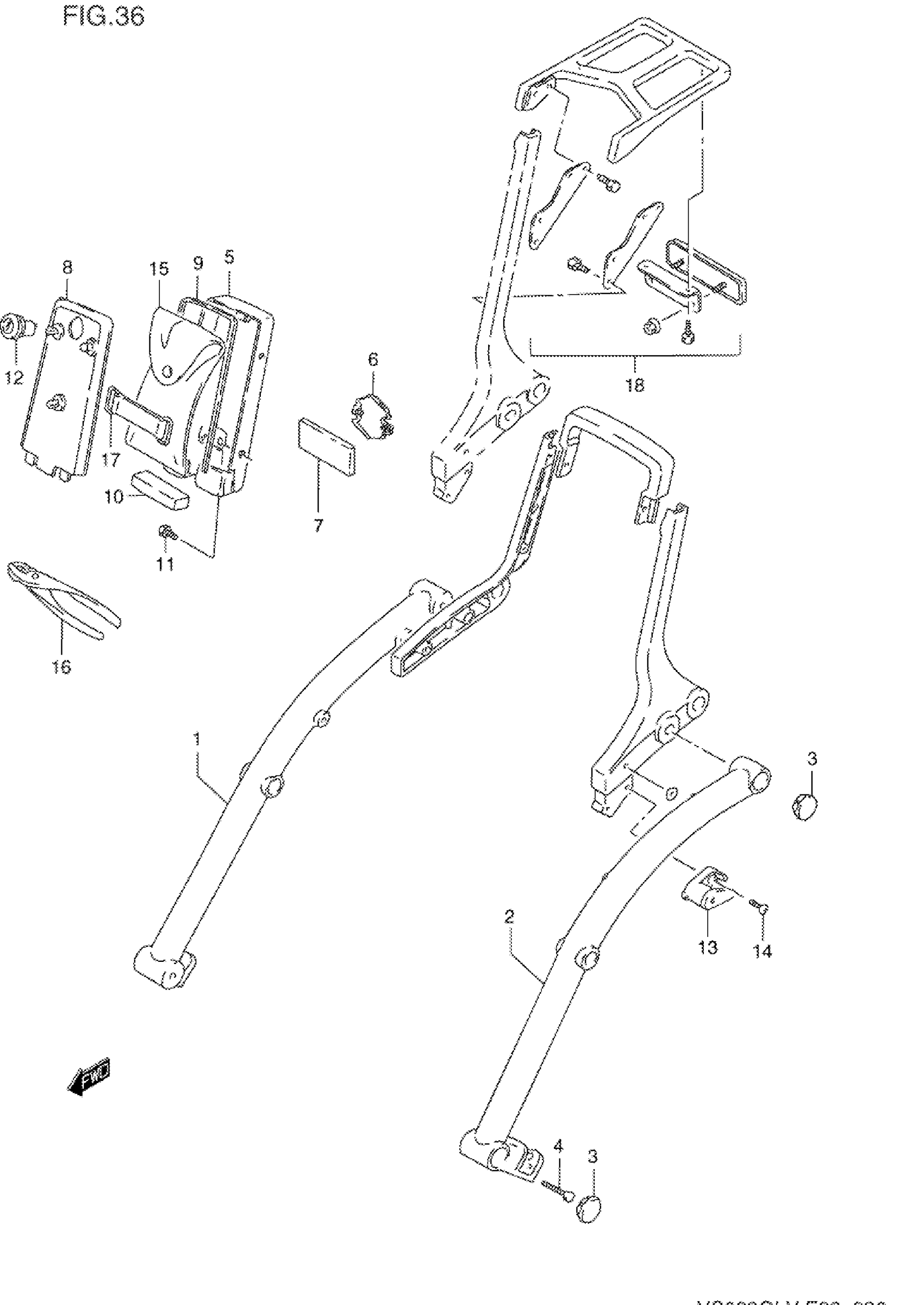

Suzuki VS800GLV (1997) FRAME HANDLE GRIP Diagram

#

Description
Price

1

GRIP, FRAME HANDLE RH This part replaces 41610-38A30.

41610-38A20

Unavailable

2

GRIP, FRAME HANDLE LH This part replaces 41620-38A30.

41620-38A20

Unavailable

3

CAP

95672-24A00

$5.83

4

BOLT | MODEL N/P/R

01500-08207

$2.53

4

BOLT | MODEL S/T/V This part replaces 01580-08203.

01580-0820A

$3.30

5

HOLDER, TOOL REAR (BLACK) | MODEL N/P/R/S This part replaces 47430-38B01-22S.

47430-38B11-22S

Unavailable

5

HOLDER, TOOL REAR (BLACK) | MODEL T/V This part replaces 47430-38B02-22S.

47430-38B11-22S

Unavailable

6

EMBLEM | MODEL N/P/R/S This part replaces 68261-38A20.

68261-38A30

$37.15

6

EMBLEM, REAR | MODEL T/V

68261-38A30

$37.15

7

CUSHION | MODEL N/P/R/S

68262-38A00

Unavailable

8

HOLDER, TOOL FRONT

47441-38B00

$24.42

9

MOLDING, REAR

47437-38B00

$7.95

10

CUSHION, TOOL BACK

47438-38B00

Unavailable

11

BOLT | MODEL N/P/R

01570-06127

$2.50

11

BOLT | MODEL S/T This part replaces 01570-06123.

01570-0612A

$2.63

11

BOLT, CLAMP | MODEL V This part replaces 01550-06123.

01550-0612A

$1.97

12

LOCK SET, TOOL HOLDER

95700-24831

$71.38

13

LOCK ASSY, HELMET

95700-38821

$66.87

14

SCREW

02112-05127

$1.97

15

TOOL ASSY | MODEL N/P/R This part replaces 09800-20008.

09800-21013

Unavailable

15

TOOL ASSY | MODEL S/T/V

09800-21013

Unavailable

16

PLIER, 150 | MODEL S/T/V

09812-00009

Unavailable

17

BAND, TOOL

09462-00008

$4.77

18

CARRIER SET, SPORT | OPT

46300-38822

Unavailable
