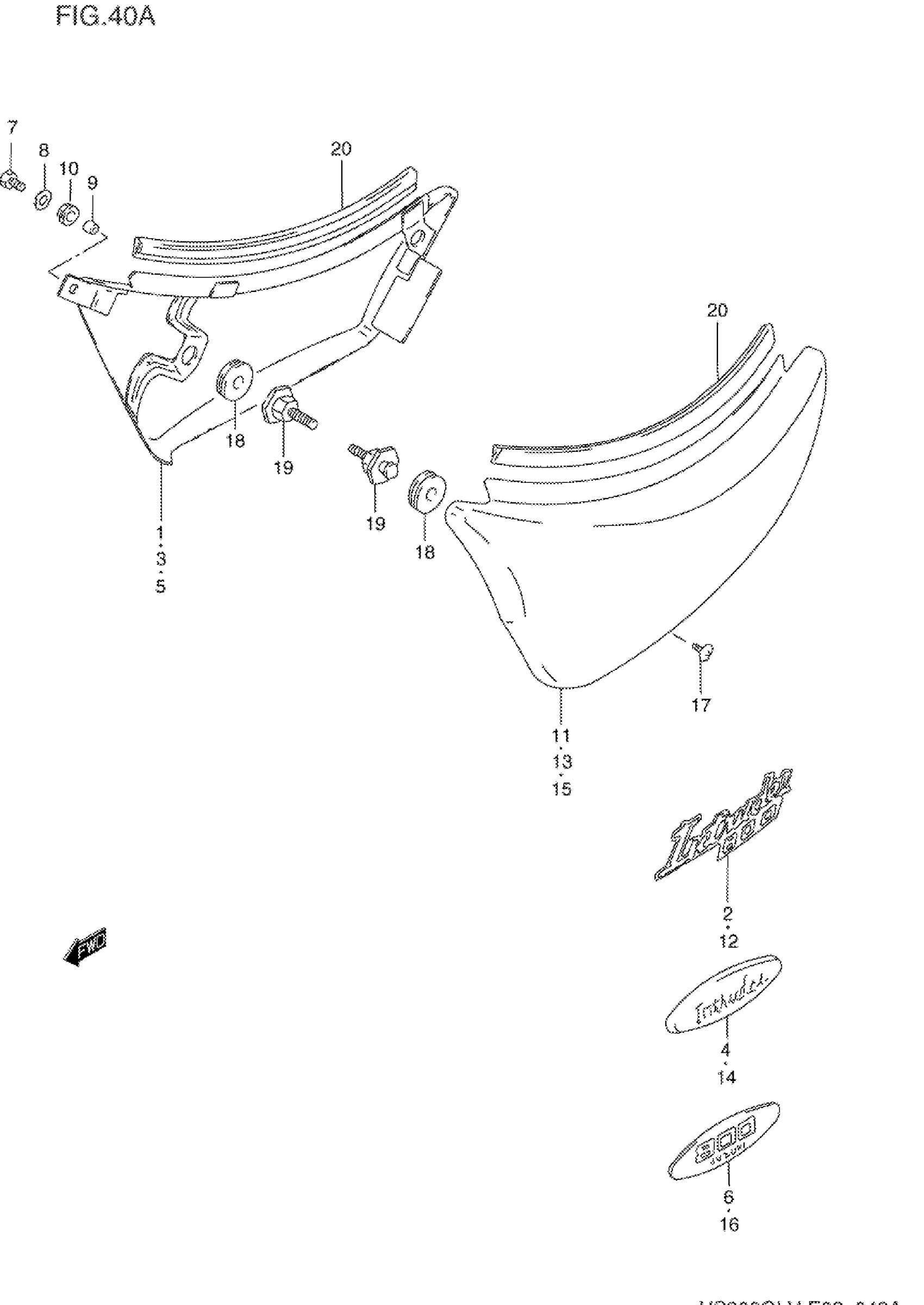

Suzuki VS800GLV (1997) FRAME COVER (MODEL S/T/V) Diagram

#

Description
Price

1

COVER, FRAME RH (MAROON) | MODEL S This part replaces 47100-39A30-20F.

47110-38A00-20F

Unavailable

1

COVER ASSY,FRAM | MODEL S; Includes Item(s) 2 - 2 This part replaces 47100-39A30-33J.

47110-38A00-13L

$305.78

2

EMBLEM | MODEL S FOR 20F

68131-39A10-C1L

Unavailable

2

EMBLEM | MODEL S FOR 33J

68131-39A10-C1M

Unavailable

3

COVER, FRAME RH (MAROON) | MODEL T

47110-38A00-20F

Unavailable

3

COVER, FRAME RH (GREEN) | MODEL T

47110-38A00-1ZV

Unavailable

4

EMBLEM | MODEL T

68131-39E00

Unavailable

5

COVER ASSY,FRAM | MODEL V This part replaces 47110-38A00-33J.

47110-38A00-13L

$305.78

5

COVER, FRAME RH (RED) | MODEL V

47110-38A00-19A

Unavailable

6

EMBLEM | MODEL V

68131-38E00

Unavailable

7

BOLT, RH

01550-06167

$2.30

8

WASHER

09160-06084

$1.78

9

SPACER

09180-06246

$2.12

10

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

11

COVER ASSY,FRAM | MODEL S This part replaces 47200-39A30-20F.

47210-38A00-13L

$276.22

11

COVER, FRAME LH (BLACK) | MODEL S; Includes Item(s) 12 - 12 This part replaces 47200-39A30-33J.

47210-38A00-33J

$543.26

12

EMBLEM | MODEL S FOR 20F

68131-39A10-C1L

Unavailable

12

EMBLEM | MODEL S FOR 33J

68131-39A10-C1M

Unavailable

13

COVER ASSY,FRAM | MODEL T This part replaces 47210-38A00-20F.

47210-38A00-13L

$276.22

13

COVER, FRAME LH (GREEN) | MODEL T

47210-38A00-1ZV

Unavailable

14

EMBLEM | MODEL T

68131-39E00

Unavailable

15

COVER, FRAME LH (BLACK) | MODEL V

47210-38A00-33J

$543.26

15

COVER ASSY,FRAM | MODEL V This part replaces 47210-38A00-19A.

47210-38A00-13L

$276.22

16

EMBLEM | MODEL V

68131-38E00

Unavailable

17

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06103.

02142-0610A

$1.49

18

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

19

BOSS, FRAME COVER

47250-38A01

$6.68

20

MOLDING, FRONT This part replaces 47218-38A00.

68241-04X50-300

$7.32
